Harris eco SMART Brazing Flux
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description

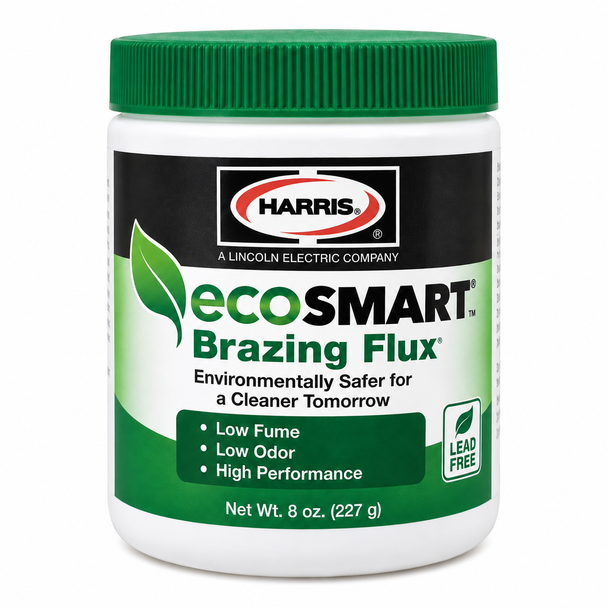

Harris eco SMART Brazing Flux
Harris eco SMART brazing flux provides professional oxide removal and base-metal protection during brazing while eliminating boric acid and sodium-borate salts from the formulation. Available in black or green formulations and paste or powder forms, eco SMART flux is designed for demanding brazing applications involving copper alloys, brass, bronze, steel, stainless steel, nickel, Monel® and other compatible metals.
Select the required flux type and package from the product options above. The selected variation determines the Harris item number, formulation, package size, selling price, weight and cost.
Product Highlights
- Professional Harris eco SMART brazing flux
- Boric-acid-free and borax-free formulation
- Available in black and green formulations
- Available as paste or powder
- Dissolves surface oxides during brazing
- Helps protect base metals against oxidation during heating
- Promotes filler-metal flow through the brazed joint
- Suitable for a wide range of ferrous and non-ferrous metals
- Useful with Stay-Silv®, Safety-Silv® and other compatible brazing filler metals
- Designed for professional brazing and fabrication applications
Available Formulations & Packages
| Flux | Form | Package | Harris Item Number |
|---|---|---|---|
| Black | Paste | 500 g Jar | ESF500PB |
| Black | Powder | 250 g Jar | ESF250DB |
| Green | Paste | 500 g Jar | ESF500PG |
| Green | Powder | 250 g Jar | ESF250DG |
Common Base Metals
Ferrous Metals
- Steel
- Stainless steel
- Other compatible ferrous alloys
Non-Ferrous Metals
- Copper
- Brass
- Bronze
- Nickel
- Monel®
- Compatible copper alloys
Black vs. Green eco SMART Flux
Black Flux
Harris eco SMART black flux is a high-heat formulation designed for extended heating cycles and demanding brazing conditions. It is particularly useful where prolonged or localized heating is encountered.
Green Flux
Harris eco SMART green flux incorporates color-change technology. During heating, the flux changes from green toward clear as brazing temperature is reached, helping the operator recognize the active brazing range.
Paste vs. Powder
Paste Flux
Paste formulations provide convenient direct application to the joint or base metal and offer smooth coverage for general brazing work.
Powder Flux
Powder formulations can be used for hot-rodding by dipping the heated end of brazing filler metal into the flux. Depending on the application, powder may also be mixed with water or alcohol to create a paste.
Typical Brazing Applications
Joining Applications
- HVAC and refrigeration brazing
- Industrial fabrication
- Maintenance and repair
- Process equipment
- Copper and brass assemblies
- Stainless and nickel-alloy brazing
Brazing Methods
- Flame brazing
- Induction brazing
- Furnace brazing where appropriate
- Manual brazing applications
Product Selection Considerations
Select the Formulation
Choose black or green flux based on the brazing process, heating cycle, filler metal and applicable brazing procedure. Green formulations provide a visible color-change indication during heating.
Select Paste or Powder
Choose paste for convenient joint application or powder when hot-rodding, dipping or custom flux preparation is preferred.
Product Resources
Review Harris manufacturer information for eco SMART brazing fluxes, brazing filler metals and proper application procedures.
View Harris Brazing Flux ProductsNeed Help Selecting Harris Brazing Flux?
Our welding, brazing and industrial supply specialists can help match the appropriate Harris flux formulation and brazing filler metal to your base metals and application.
Frequently Asked Questions
What is Harris eco SMART brazing flux?
eco SMART is Harris's boric-acid-free brazing flux family designed to dissolve oxides, protect the base metal during heating and promote brazing filler-metal flow.
What is the difference between black and green eco SMART flux?
Black eco SMART is designed for demanding high-heat brazing applications and extended heating cycles. Green eco SMART incorporates color-change technology that helps indicate when the flux has reached its active brazing temperature.
Should I choose paste or powder flux?
Paste provides convenient direct application to the brazing joint. Powder can be used for hot-rodding or mixed with a suitable liquid when a paste-like consistency is desired.
What metals can eco SMART flux be used on?
Depending on the selected formulation and brazing procedure, eco SMART flux is suitable for metals including copper, brass, bronze, steel, stainless steel, nickel and Monel®.
Can eco SMART flux be used with Harris Stay-Silv and Safety-Silv alloys?
Yes. Harris identifies eco SMART formulations for use with compatible Stay-Silv®, Safety-Silv® and other suitable brazing filler metals.
Does eco SMART contain boric acid?
No. Harris developed eco SMART formulations without boric acid or sodium-borate salts.
How is this product sold?
Each GetPipe.com quantity represents one jar of the selected Harris eco SMART formulation and package size.
Should brazing flux residue be removed after brazing?
Yes. Follow Harris instructions and the applicable brazing procedure for proper removal of flux residue after the joint has cooled sufficiently.
Important Ordering Notes
- Select the required formulation and package before adding the product to your cart.
- Quantity 1 equals one individual jar of the selected variation.
- The selected variation determines the Harris SKU, package size, selling price, weight and cost.
- Confirm flux compatibility with the base metals and brazing filler metal before use.
- Remove brazing flux residue according to Harris recommendations.
- Always follow the applicable brazing procedure, manufacturer instructions and workplace safety requirements.
