Argco

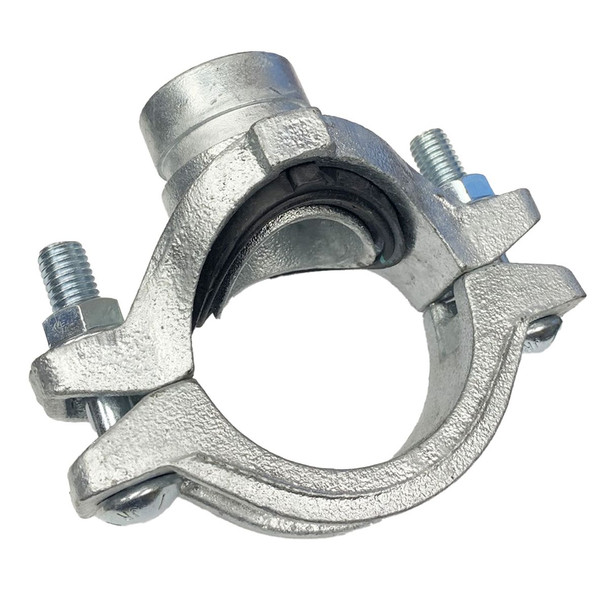

Galvanized Grooved Mechanical Tee
- SKU:
- Model 403 - Grooved
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
Galvanized Grooved Mechanical Tee
ARGCO’s Model 402 grooved mechanical tee provides a fast and easy mid-pipe grooved branch outlet for carbon steel piping systems. It utilizes ductile iron housings, a Grade E EPDM gasket, and heat-treated carbon steel track bolts and nuts.
This galvanized configuration features a hot dipped galvanized housing coating and is designed for Schedule 10 and Schedule 40 carbon steel pipe, with maximum working pressure up to 300 psi (20 bar).
Key Features
- Grooved mechanical tee for fast mid-pipe branch outlet installation
- Joins carbon steel pipe and provides a rigid pipe joint
- Designed to restrict axial or angular movement
- Suitable for Schedule 10 and Schedule 40 carbon steel pipe
- Maximum working pressure up to 300 psi / 20 bar
- Hot dipped galvanized housing coating
- Ductile iron housing conforming to ASTM A536 Grade 65-45-12
- Grade E EPDM gasket supplied as standard
- Carbon steel oval neck track bolts and hex nuts with zinc electroplated finish
- UL, ULC, and FM listed/approved
Typical Applications
Ideal for carbon steel piping systems requiring a rigid grooved branch outlet, including wet and dry (oil-free air) sprinkler services within the rated working pressure.
Construction Details
Housing sections are manufactured from ductile iron conforming to ASTM A536 Grade 65-45-12 for strength and durability.
This version is finished with a hot dipped galvanized coating for corrosion resistance.
Standard gasket is Grade E EPDM (Type A).
Standard bolts and nuts are carbon steel, with bolts meeting ASTM A449 and ISO 898-1, hex nuts meeting ASTM A563 Grade B, and zinc electroplated finish per ASTM B633 NZ/FE5 Type III.
