Mechanical Tees Grooved 402

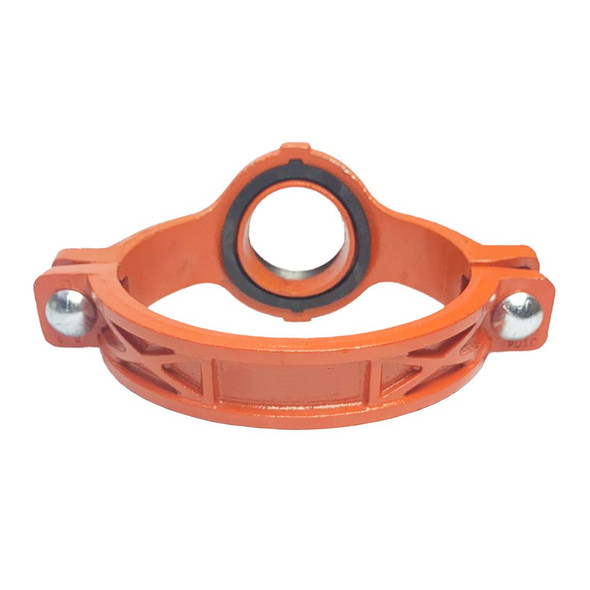

ARGCO’s Model 402 Mechanical Tee (Groove) is a fast and efficient fitting designed to create a mid-pipe grooved branch outlet without the need for welding. This fitting allows for quick installation by cutting or drilling a hole at the desired location and securing the tee with a bolted housing assembly.
Constructed with ductile iron housings, a Grade E EPDM gasket, and heat-treated carbon steel track bolts and nuts, the Model 402 provides a durable and reliable solution for fire protection and general piping systems requiring grooved branch connections.
Key Features
- Mechanical tee design provides a grooved branch outlet without welding
- Ideal for mid-pipe branch connections in grooved piping systems
- Rigid connection restricts axial and angular movement
- Maximum working pressure up to 300 psi (20 bar)
- Compatible with Schedule 10 and Schedule 40 carbon steel pipe
- Available in a wide range of sizes from 2" through 8" with multiple outlet combinations
- Ductile iron construction per ASTM A536 Grade 65-45-12
- Standard orange enamel coating with optional hot dipped galvanized finish
- Includes Grade E EPDM (Type A) gasket for reliable sealing
- UL, ULC, and FM listed/approved
Typical Applications
Commonly used in fire protection systems and general piping installations where grooved branch outlets are needed along existing pipelines. Ideal for sprinkler system expansions, auxiliary connections, and system modifications without cutting and welding pipe sections.
Construction Details
Manufactured from ductile iron conforming to ASTM A536 Grade 65-45-12, ensuring strength and long-term durability. The standard finish is orange enamel, with optional hot dipped galvanizing available for enhanced corrosion resistance.
The assembly includes heat-treated carbon steel track bolts and nuts, zinc electroplated for corrosion resistance, with optional stainless steel hardware available for demanding environments.
Important Notes
Installation requires cutting or drilling a hole in the pipe to the specified diameter based on outlet size. Ensure proper gasket placement and tightening of bolts to recommended torque values. Always follow ARGCO installation instructions and applicable code requirements.
