Flo-Mac

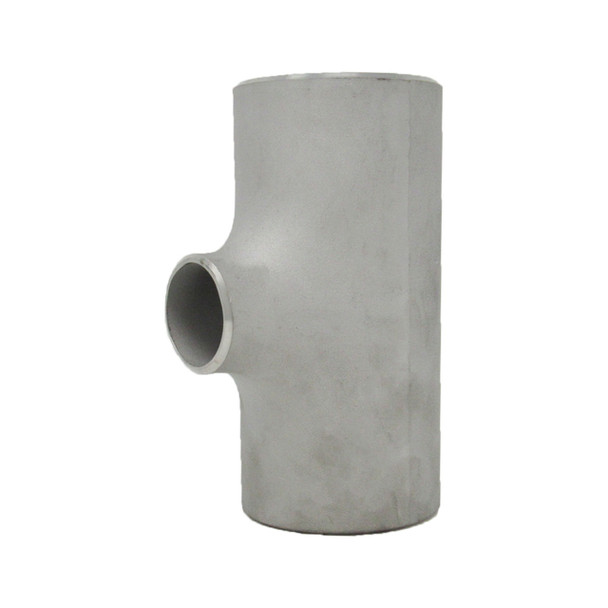

Aluminum Weld Reducing Tee
- SKU:
- 16RT
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
- Note Sizing Reads:
- End x End x Middle (Middle = Outlet)
- Ships From:
- Los Angeles, California
- Call for pricing label:
- Add to Quote for Price & Availability
Description
Aluminum Weld Reducing Tee - Schedule 40
Aluminum Weld Reducing Tees are designed for welded aluminum piping systems that require a reduced-size branch connection from the main pipe run. Manufactured from 6061-T6 aluminum, these fittings are supplied in Schedule 40, with Schedule 80 configurations available by request.
Made in the USA, these reducing tees provide a practical way to transition to a smaller branch size within compatible fabricated aluminum piping systems while retaining the strength, corrosion resistance, and low weight associated with 6061-T6 aluminum.
Product Highlights
- Reducing tee configuration
- Schedule 40
- Schedule 80 available by request
- 6061-T6 aluminum construction
- Designed for welded aluminum piping systems
- Provides a reduced-size branch connection
- Domestic origin
- Made in the USA with precision craftsmanship
Technical Specifications
| Product Type | Weld Reducing Tee |
|---|---|
| Material | 6061-T6 Aluminum |
| Standard Schedule | Schedule 40 |
| Optional Schedule | Schedule 80 - Available by Request |
| Connection Type | Weld |
| Configuration | Reducing Branch Tee |
| Origin | Domestic - Made in the USA with Precision Craftsmanship |
6061-T6 Aluminum Technical Information
T6 temper 6061 aluminum has an ultimate tensile strength of at least 42,000 psi (300 MPa) and a yield strength of at least 35,000 psi (241 MPa). More typical values are approximately 45,000 psi (310 MPa) ultimate tensile strength and 40,000 psi (275 MPa) yield strength.
In thicknesses of 0.250 inch (6.35 mm) or less, 6061-T6 has elongation of 8% or more. In thicker sections, elongation is approximately 10%. T651 temper has similar mechanical properties.
The typical thermal conductivity value for 6061-T6 aluminum at 80°C is approximately 152 W/m K.
A material data sheet defines the fatigue limit under cyclic loading as approximately 14,000 psi (100 MPa) for 500,000,000 completely reversed cycles using a standard R.R. Moore test machine and specimen.
Aluminum does not exhibit a sharply defined fatigue-limit “knee” on an S-N curve, so the number of cycles considered equivalent to “infinite life” can vary. Actual fatigue performance in a specific application can also be significantly affected by conventional de-rating factors including loading conditions, stress gradients, and surface finish.
Reducing Branch Configuration
The reducing tee configuration provides a branch outlet that is smaller than the main run, allowing a welded aluminum piping system to transition to a reduced branch size without requiring a separate reducer at the branch connection.
This configuration is useful for fabricated piping layouts where the branch line requires a smaller nominal pipe size than the main piping run.
Schedule Options
Schedule 40
This listing is for Schedule 40 aluminum weld reducing tees. Select the required run and branch sizes to match the compatible piping system.
Schedule 80 by Request
Schedule 80 reducing tee configurations are available by request. Contact the GetPipe.com team for assistance with Schedule 80 requirements.
Product Features
Reduced Branch Connection
The reducing branch allows a smaller pipe size to connect directly to the larger main run, simplifying compatible fabricated piping layouts.
Welded Installation
The fitting is designed for incorporation into compatible welded aluminum piping systems and fabricated assemblies.
Common Applications
Fabricated Piping Systems
- Aluminum piping assemblies
- Welded piping systems
- Industrial fabrication
- Mechanical piping installations
- Process piping applications
Reducing Branch Connections
- Reduced-size branch takeoffs
- Distribution piping
- Equipment branch connections
- Fabricated pipe networks
- Custom aluminum piping assemblies
Product Documentation
Pipe Diameter & Wall Thickness Chart
Use the pipe chart to review common pipe diameters and wall thicknesses when selecting compatible run and branch sizes.
Need Help Selecting an Aluminum Reducing Tee?
Our industrial PVF specialists can help confirm run size, branch size, schedule, material, and welding requirements before you order. Contact us for Schedule 80 availability.
Frequently Asked Questions
What material are these reducing tees made from?
These weld reducing tees are manufactured from 6061-T6 aluminum.
What schedule is supplied?
This listing is for Schedule 40 aluminum weld reducing tees.
Is Schedule 80 available?
Yes. Schedule 80 configurations are available by request. Contact the GetPipe.com team for availability and ordering assistance.
What is a reducing tee used for?
A reducing tee creates a branch connection where the branch pipe is smaller than the main pipe run.
What are the tensile properties of 6061-T6 aluminum?
6061-T6 has a minimum ultimate tensile strength of approximately 42,000 psi and a minimum yield strength of approximately 35,000 psi, with typical values around 45,000 psi and 40,000 psi respectively.
What elongation is typical for 6061-T6 aluminum?
In thicknesses of 0.250 inch or less, elongation is 8% or more. In thicker sections, elongation is approximately 10%.
What is the typical thermal conductivity of 6061-T6?
The typical thermal conductivity at 80°C is approximately 152 W/m K.
What fatigue information is provided for 6061-T6?
A material data sheet defines a fatigue limit of approximately 14,000 psi for 500,000,000 completely reversed cycles using a standard R.R. Moore test machine and specimen. Actual fatigue performance depends heavily on application conditions.
Are these aluminum reducing tees made in the USA?
Yes. These fittings are identified as domestic products made in the USA.
What sizes should I confirm before ordering?
Confirm both the main run size and the reduced branch size, as well as the required pipe schedule, before ordering.
Important Ordering Notes
- Material: 6061-T6 aluminum.
- Configuration: Weld Reducing Tee.
- This listing is for Schedule 40.
- Schedule 80 is available by request.
- Domestic origin - Made in the USA with precision craftsmanship.
- Confirm both run size and reduced branch size before ordering.
- Match the fitting schedule to the compatible pipe wall thickness and project requirements.
- Confirm welding procedures and material compatibility for the intended piping system.
- Mechanical properties, fatigue performance, and service life can vary based on loading, stress gradients, surface finish, and other application-specific conditions.
- Refer to the pipe chart for common pipe diameters and wall thicknesses.
