Dixon

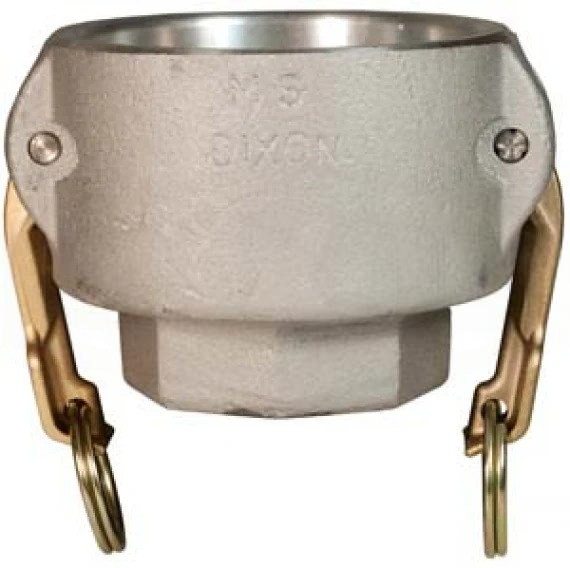

Aluminum 3" Female Cam x 2" Type C Hose Shank Reducing Coupler
- SKU:
- NLDIX3020CAL
- Availability:
- Limited quantity available.
- Weight:
- 3.00 LBS
Description
Dixon 3020CAL Aluminum 3" Female Cam x 2" Type C Hose Shank Reducing Coupler
The Dixon 3020CAL Type C Reducing Cam & Groove Coupler provides a transition from a 3" female camlock connection to a 2" hose shank for compatible liquid transfer systems.
This jump-size coupler features lightweight, corrosion-resistant aluminum construction and is designed for quick connection to compatible male cam & groove adapters. The reducing configuration allows a 3" camlock system to transition to a 2" hose connection for petroleum, agricultural, construction, industrial, and water transfer applications.
Product Highlights
- Dixon model 3020CAL
- Type C reducing cam & groove coupler
- 3" female camlock connection
- 2" hose shank connection
- Aluminum construction
- Reducing / jump-size configuration
- Approximately 125 PSI maximum working pressure
- Compatible with standard cam & groove adapters
- Lightweight, corrosion-resistant design
- Made to interchange with commercial camlock standards
- Designed for liquid transfer applications
- Not recommended for compressed air or steam service
Technical Specifications
| Brand | Dixon |
|---|---|
| Model | 3020CAL |
| Product Type | Reducing Cam & Groove Coupler x Hose Shank |
| Fitting Type | Type C |
| Configuration | Reducing / Jump Size |
| Camlock Connection | 3" Female Cam & Groove Coupler |
| Hose Connection | 2" Hose Shank |
| Material | Aluminum |
| Maximum Working Pressure | Approximately 125 PSI |
| Camlock Compatibility | Compatible Standard Cam & Groove Adapters |
| Service | Liquid Transfer |
| Compressed Air Service | Not Recommended |
| Steam Service | Not Recommended |
3" Female Cam x 2" Hose Shank Configuration
The Dixon 3020CAL combines a 3" female cam & groove coupler with a 2" hose shank, providing a reducing transition between different connection sizes.
The female camlock end connects to a compatible male cam & groove adapter, while the 2" hose shank provides an attachment point for a compatible hose assembly.
Reducing / Jump-Size Design
The reducing configuration allows a 3" cam & groove connection to transition directly to a 2" hose connection. This makes the 3020CAL suitable for systems where the camlock connection and hose require different nominal sizes.
Aluminum Construction
The 3020CAL is manufactured from aluminum to provide a balance of strength, reduced weight, and corrosion resistance for compatible fluid transfer applications.
A specific aluminum alloy was not supplied in the provided product information.
Approximately 125 PSI Maximum Working Pressure
The supplied product information lists an approximate maximum working pressure of 125 PSI.
Verify the pressure rating of the complete assembly, including the hose, clamps, sleeves or ferrules, mating camlock fitting, and other system components before use.
Hose Attachment
The 2" hose shank is designed for attachment to a compatible hose assembly using appropriate clamps, sleeves, or ferrules.
Verify hose size, attachment method, pressure rating, and compatibility before assembling the connection.
Liquid Transfer Service
The Dixon 3020CAL is designed for liquid transfer applications involving water, petroleum products, hydraulic fluids, and compatible industrial liquids.
Verify chemical compatibility and system operating conditions before installation. The supplied product information states that this fitting is not recommended for compressed air or steam service.
Typical Applications
- Water transfer
- Petroleum product transfer
- Hydraulic fluid handling
- Agricultural fluid transfer
- Construction applications
- Industrial liquid handling
- Reducing camlock-to-hose connections
Installation & Service Notes
Connect the 3" female cam & groove end to a compatible male camlock adapter. Attach a compatible 2" hose to the hose shank using an appropriate clamp, sleeve, or ferrule system.
Before installation, verify hose compatibility, pressure rating, chemical suitability, mating camlock compatibility, and the selected hose attachment method.
Do not use this fitting for compressed air or steam service based on the supplied product information.
Our specialists can help with reducing camlock fittings, 3" female cam connections, 2" hose shanks, hose attachment methods, and compatible liquid transfer applications.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is the Dixon 3020CAL?
The 3020CAL is an aluminum Type C reducing cam & groove coupler with a 3" female camlock connection and a 2" hose shank.
What are the connection sizes?
The fitting provides a 3" female cam & groove connection x 2" hose shank.
Why is the 3020CAL considered a reducing coupler?
It transitions from a 3" camlock connection to a 2" hose connection, providing a reducing or jump-size configuration.
What material is the 3020CAL made from?
The supplied product information identifies the fitting as aluminum. A specific aluminum alloy was not supplied.
What is the maximum working pressure?
The supplied product information lists an approximate maximum working pressure of 125 PSI.
How is the hose attached?
The 2" hose shank can be used with an appropriate clamp, sleeve, or ferrule. Verify that the selected attachment method is compatible with the hose and application.
What liquids can the 3020CAL be used with?
The supplied product information identifies water, petroleum products, hydraulic fluids, and industrial liquids as applications. Chemical compatibility should be verified before use.
Can this reducing coupler be used for compressed air or steam?
No. The supplied product information states that the 3020CAL is not recommended for compressed air or steam service.
Important Ordering & Product Notes
- This listing covers the Dixon 3020CAL Aluminum Type C Reducing Cam & Groove Coupler.
- Connection configuration is 3" female cam & groove x 2" hose shank.
- This is a reducing / jump-size fitting.
- Construction is identified as aluminum; a specific aluminum alloy was not supplied.
- Maximum working pressure is listed as approximately 125 PSI.
- Designed for liquid transfer applications.
- Not recommended for compressed air or steam service.
- A specific gasket material, overall dimensions, product weight, temperature range, and specific commercial interchange standard designation were not supplied in the provided product information.
- Verify hose compatibility, pressure rating, chemical suitability, camlock compatibility, and attachment method before installation.
