ABS DWV 45 Reducing Wye (HUB x HUB x HUB)
- SKU:
- LN601
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
ABS DWV 45 Reducing Wye (HUB x HUB x HUB)
ABS DWV 45 Reducing Wyes provide a smooth 45-degree branch connection while transitioning between different nominal pipe sizes in non-pressure drain, waste, and vent systems.
Featuring hub connections on all three ends, this fitting is designed to connect compatible ABS DWV piping while introducing a branch line into the main run at a gradual 45-degree angle and accommodating a pipe-size reduction. The reducing wye configuration helps support efficient drainage flow while minimizing abrupt directional changes and can reduce the need for a separate reducing fitting in certain layouts. Manufactured for ABS DWV service, it meets recognized standards including ASTM D2661, CSA B181.1, and NSF Standard 14.
Product Highlights
- ABS DWV 45 reducing wye fitting
- Hub x Hub x Hub connection configuration
- Three hub connections for compatible ABS DWV pipe
- Provides a 45-degree branch connection
- Transitions between different nominal pipe sizes
- Supports smooth flow into the main piping run
- Helps minimize abrupt directional changes
- Can reduce the need for a separate reducer
- Designed for solvent-cement installation
- Suitable for drain, waste, and vent systems
- Suitable for sewer and general drainage applications
- Non-pressure fitting
- Maximum operating temperature of 140°F
- Not intended for compressed air or gas service
- Not intended for pressure testing
- Manufactured from virgin ABS polymers
- Complies with ASTM D2661
- Certified to CSA B181.1
- Meets NSF Standard 14 requirements
Technical Specifications
| Product Type | ABS DWV 45 Reducing Wye |
|---|---|
| Material | ABS |
| Connection Type | Hub x Hub x Hub |
| Branch Angle | 45 Degrees |
| Configuration | Reducing Wye |
| Number of Connections | 3 |
| Joint Method | Solvent Cement |
| System Type | Drain, Waste, and Vent (DWV) |
| Pressure Service | Non-Pressure |
| Maximum Operating Temperature | 140°F |
| Primary Function | Provide a 45-Degree Branch Connection While Transitioning Between Different ABS DWV Pipe Sizes |
| Referenced Standards | ASTM D3965, ASTM D2661, CSA B181.1, NSF Standard 14 |
| Typical Applications | Sanitary Drainage, Waste Lines, Sewer Piping, General Drainage, and Reduced-Size Branch Connections |
Connection Configuration
Main Run Connections
Two hub connections form the primary ABS DWV piping run and accept compatible pipe for solvent-cement installation.
Reducing 45-Degree Branch
The third hub forms the branch connection and may be a different nominal size than the main run, depending on the specific fitting variation.

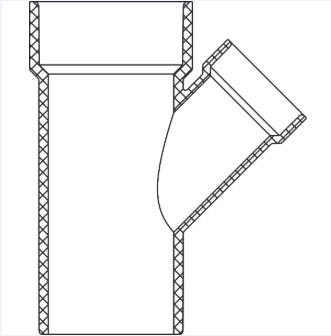

45 Reducing Wye Design
The 45 reducing wye combines a gradual branch connection and pipe-size transition in a single molded ABS fitting.
The branch enters the main run at approximately 45 degrees, helping support smoother drainage flow than a more abrupt perpendicular connection.
Because the fitting is reducing, one or more hub connections may differ in nominal size. Verify the full connection configuration before ordering.
Why Choose an ABS DWV 45 Reducing Wye?
Smooth Branch & Size Transition
- Provides a gradual 45-degree branch entry
- Transitions between different pipe sizes
- Supports efficient drainage flow
- Can reduce the need for a separate reducer
- Useful for reduced-size branch drain connections
ABS DWV Benefits
- Lightweight construction
- Easy handling and installation
- Suitable for non-pressure drainage systems
- Compatible with ABS DWV piping systems
- Designed for long-term sanitary drainage service
Typical Applications
Drainage Systems
- Sanitary drain lines
- Waste piping
- Sewer piping
- General building drainage
- ABS DWV main runs
Reducing Branch Connections
- Reduced-size branch drains
- Different-size DWV connections
- Horizontal drainage layouts
- Residential plumbing
- Commercial drainage systems
Standards & Compliance
- ASTM D3965: ABS material requirements for pipe extrusion and molded fittings
- ASTM D2661: Schedule 40 ABS drain, waste, and vent pipe and fittings
- CSA B181.1: ABS drain, waste, and vent pipe, fittings, and accessories
- NSF Standard 14: Plastic piping system components and related materials
Installation
Verify all three nominal hub sizes before installation and identify which connection or connections provide the size reduction.
Cut all mating ABS pipe ends square and remove burrs. Clean and prepare the pipe and hub surfaces according to accepted ABS solvent-cement installation procedures.
Dry-fit the complete assembly before applying solvent cement to confirm branch direction, flow orientation, and proper placement of each pipe size.
Apply compatible ABS solvent cement as required and fully seat each pipe into its corresponding hub while maintaining correct alignment.
Allow completed joints to cure according to the solvent cement manufacturer's recommendations before placing the drainage system into service.
Our piping specialists can help review your main-run size, branch size, reduction, fitting orientation, and ABS DWV compatibility before you order.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is an ABS DWV 45 reducing wye used for?
It is used to connect a branch line into a main ABS DWV piping run at approximately a 45-degree angle while also transitioning between different pipe sizes.
What does HUB x HUB x HUB mean?
It means all three connections are hub-style connections designed to accept compatible ABS DWV pipe.
What makes this fitting reducing?
At least one hub connection is a different nominal size from another connection, allowing the fitting to transition between different pipe sizes.
Which connection is reduced?
The reduced connection depends on the specific size variation. Verify all three connection sizes before ordering.
Why use a 45 wye instead of a standard tee?
A wye introduces the branch at a more gradual angle, which supports smoother directional flow in appropriate drainage applications.
What angle does the branch enter the main run?
The branch enters at approximately 45 degrees.
Does this fitting require solvent cement?
Yes. All three hub connections are intended for compatible ABS solvent-cement installation.
Is this fitting intended for pressure systems?
No. This fitting is intended for non-pressure drain, waste, vent, sewer, and general drainage applications.
Can it be used for compressed air or gas?
No. The supplied product information states that ABS DWV fittings are not intended for transporting compressed air or gas.
Can this fitting be used for pressure testing?
No. The supplied product information states that ABS DWV fittings should not be used for pressure testing.
What should I verify before ordering?
Confirm all three hub sizes, which connection is reduced, branch orientation, main-run direction, mating ABS DWV pipe sizes, and intended non-pressure drainage application.
Important Ordering & Installation Notes
- This listing is for an ABS DWV 45 Reducing Wye with HUB x HUB x HUB connections.
- Verify all three nominal connection sizes before ordering.
- At least one connection differs in size from another connection.
- Confirm which connection provides the reduced-size transition.
- The branch enters the main run at approximately 45 degrees.
- Confirm branch orientation and flow direction before installation.
- All three connections are hub-style connections.
- All hubs accept compatible ABS DWV pipe.
- Dry-fit the complete assembly before applying solvent cement.
- Confirm correct placement of each pipe size before final assembly.
- This fitting is intended for non-pressure DWV, sewer, and general drainage applications.
- Do not use for transporting compressed air or gas.
- Do not use for pressure testing.
- Maximum operating temperature is 140°F.
- Use compatible ABS solvent cement for installation.
- Cut pipe square and remove burrs before assembly.
- Clean and prepare all mating surfaces before solvent-cement installation.
- Fully seat each ABS pipe into its corresponding hub.
- Maintain proper branch and flow alignment while the solvent-cement joints set.
- Allow completed joints to cure according to the solvent cement manufacturer's recommendations before service.
- Protect the fitting from incompatible chemicals, fire-stopping materials, thread sealants, and other aggressive agents that may damage ABS compounds.
- Consult manufacturer documentation for complete dimensions and available reducing configurations.
- Follow applicable plumbing codes and manufacturer installation recommendations.
