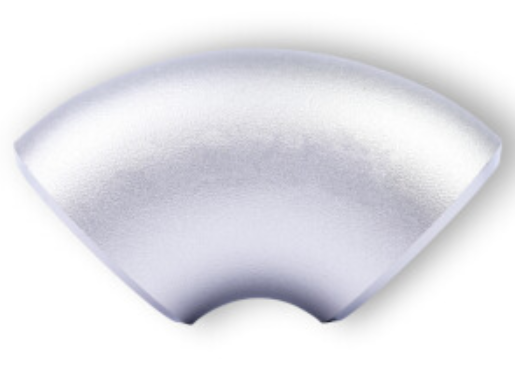

316 Stainless Steel Long Radius 90 Degree Butt Weld Elbow - Sch 40

These A/SA403 WP316/L stainless steel long radius 90° butt weld elbows provide a smooth directional change in piping systems while minimizing pressure loss and flow turbulence. Manufactured to ASME B16.9 dimensions, they offer outstanding corrosion resistance and dependable performance in demanding industrial environments.

Available in Schedule 40S sizes from 3/4 inch through 8 inches, these fittings are precision manufactured for full-penetration butt weld installations in process piping, chemical, food processing, marine, and industrial applications.

Key Features

• 316/L stainless steel construction (A/SA403 WP316/L)
• Long radius 90° butt weld elbow
• Schedule 40S wall thickness
• Manufactured to ASME B16.9
• Excellent corrosion resistance for harsh environments
• Long radius design promotes smooth flow and reduced pressure drop
• Compatible with Schedule 40S stainless steel pipe
• Available in sizes from 3/4" through 8"

Construction Details

Manufactured from wrought 316/L stainless steel for excellent strength, weldability, and corrosion resistance in aggressive service conditions.

The long radius centerline design provides improved flow characteristics while reducing erosion and turbulence compared to short radius elbows.

Precision formed and dimensionally compliant with ASME B16.9 for reliable fit-up and consistent installation.

Important Notes

Designed for butt weld installation with matching Schedule 40S stainless steel pipe.

Material conforms to A/SA403 WP316/L specification with ASME B16.9 dimensional requirements.

Verify pipe schedule, fitting size, and application requirements prior to installation.
