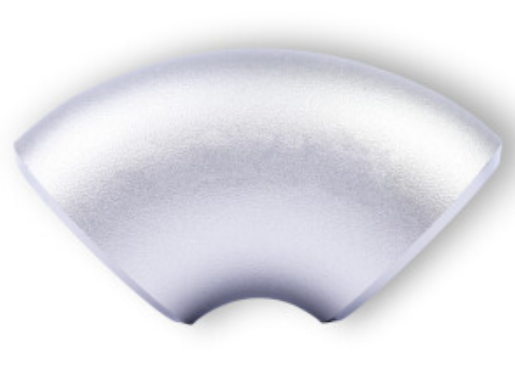

316 Stainless Steel Butt Weld Short Radius 90 Elbow - Sch 10

316/L stainless steel Schedule 10S short radius 90° butt weld elbows provide a compact solution for changing the direction of flow by 90 degrees in stainless steel piping systems. Manufactured from A/SA403 WP316/L stainless steel, these fittings offer exceptional corrosion resistance, excellent weldability, and dependable performance in demanding industrial environments.

Manufactured to ASME B16.9 dimensional standards, short radius elbows feature a centerline radius equal to one times the nominal pipe size (1D), making them ideal for installations where space is limited.

Key Features

• Manufactured from A/SA403 WP316/L stainless steel
• Schedule 10S wall thickness
• Short radius (1D) 90° butt weld elbow
• Manufactured to ASME B16.9 dimensional standards
• Compact design for installations with limited space
• Excellent resistance to corrosion, chemicals, and chloride-containing environments
• Available in sizes from 2 inches through 8 inches

Construction Details

Manufactured from low-carbon 316/L stainless steel for superior corrosion resistance and enhanced weldability while minimizing carbide precipitation during welding.

The short radius configuration allows a full 90-degree change in flow direction within a compact footprint, making these elbows suitable for tight piping layouts where space is at a premium.

Precision manufactured to ASME B16.9 dimensional requirements for consistent fit-up, dimensional accuracy, and reliable installation.

Important Notes

Designed for use with compatible Schedule 10S stainless steel pipe and butt weld fittings.

Professional welding procedures should be followed to maintain joint integrity and corrosion resistance.

Verify pipe schedule, fitting dimensions, material compatibility, pressure requirements, and applicable piping codes before installation.
