Merit Brass

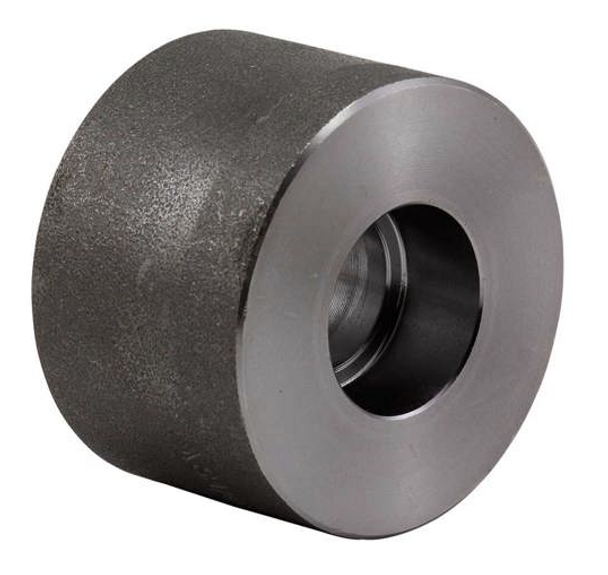

3000# Forged Steel Socket Weld Half Coupling
- SKU:
- CSW3511H
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
3000# Forged Steel Socket Weld Half Coupling
3000# Forged Steel Socket Weld Half Couplings provide a compact welded connection point for branch connections, equipment tie-ins, and fabricated piping assemblies. Manufactured from normalized forged carbon steel, these fittings are designed for demanding industrial and process piping applications.
The fittings conform to ASTM A105N-09, ASME SA105N, and ASME B16.11-2009. The normalized material provides enhanced hardness, strength, and machinability, and the manufacturing facility is ISO certified.
Product Highlights
- 3000# forged steel socket weld fitting
- Half coupling configuration
- Socket weld connection
- Suitable for branch connections and equipment tie-ins
- Forged carbon steel construction
- Normalized for enhanced hardness, strength, and machinability
- ASTM A105N-09
- ASME SA105N
- ASME B16.11-2009
- Manufactured in an ISO-certified facility
Technical Specifications
| Product Type | Half Coupling |
|---|---|
| Material | Forged Carbon Steel |
| Pressure Class | 3000# |
| Connection Type | Socket Weld |
| Configuration | Half Coupling |
| Material Specification | ASTM A105N-09 / ASME SA105N |
| Fitting Standard | ASME B16.11-2009 |
| Heat Treatment | Normalized |
| Manufacturing Facility | ISO Certified |
Forged Carbon Steel Construction
These 3000# socket weld half couplings are manufactured from forged carbon steel conforming to ASTM A105N-09 and ASME SA105N requirements. Forged construction provides the strength required for demanding industrial piping applications.
Normalized Material
The forged steel material is normalized for enhanced hardness, strength, and machinability. This heat-treatment process supports the mechanical properties required for heavy-duty piping installations.
Socket Weld Half Coupling Design
The half coupling configuration provides a single socket weld connection point in a compact forged fitting. Half couplings are commonly incorporated into fabricated piping assemblies to provide branch, instrument, drain, vent, or equipment connections.
Standards & Manufacturing
- ASTM A105N-09: Forged carbon steel material specification
- ASME SA105N: Forged carbon steel material specification
- ASME B16.11-2009: Forged socket weld fitting standard
- Manufacturing Facility: ISO Certified
Selection & Application Guidance
- Select the half coupling to match the nominal pipe size of the socket weld connection.
- Confirm 3000# forged steel construction is appropriate for the application.
- Verify carbon steel compatibility with the intended process media and environment.
- Confirm system pressure and temperature requirements before installation.
- Follow proper socket weld fit-up and welding procedures.
- Install in accordance with applicable piping codes and project specifications.
Product Documents
Carbon Steel Fittings & Outlets
Review dimensional information for Merit Brass carbon steel fittings and outlets.
SHAKTI Industries Catalog
Review additional product and technical information for forged carbon steel fittings.
Material Safety Data Sheet
Review available material safety information for Merit Brass carbon steel fittings.
Need Help Selecting Forged Steel Fittings?
Our industrial PVF specialists can help review your pipe size, pressure class, connection requirements, quantity, and application before you order.
Frequently Asked Questions
What pressure class is this half coupling?
This is a 3000# forged steel socket weld half coupling.
What material is the fitting made from?
It is manufactured from forged carbon steel conforming to ASTM A105N-09 and ASME SA105N.
What is a socket weld half coupling used for?
It is commonly used to create a branch, instrument, drain, vent, or equipment connection in a fabricated piping assembly.
What type of connection does the half coupling have?
The fitting provides a socket weld connection.
How is a half coupling different from a full coupling?
A full coupling joins two pipe sections in line, while a half coupling provides a single connection point and is commonly incorporated into fabricated piping assemblies.
Are these fittings normalized?
Yes. The forged carbon steel is normalized for enhanced hardness, strength, and machinability.
What fitting standard applies to this half coupling?
The forged steel socket weld fitting conforms to ASME B16.11-2009.
Where can I find fitting dimensions?
Use the Merit Brass Carbon Steel Fittings & Outlets document in the Product Documents section above for dimensional information.
Important Ordering Notes
- 3000# forged steel socket weld half coupling.
- Single socket weld connection.
- Forged carbon steel construction.
- ASTM A105N-09 and ASME SA105N.
- ASME B16.11-2009.
- Normalized for enhanced hardness, strength, and machinability.
- Manufactured in an ISO-certified facility.
- Confirm nominal pipe size before ordering.
- Verify material, pressure, temperature, and process-media compatibility before installation.
