3000# Forged Steel Socket Weld Half Couplings
- SKU:
- 3MCPLHS
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
3000# Forged Steel Socket Weld Half Coupling
3000# Forged Steel Socket Weld Half Couplings are designed to provide a compact socket weld connection for branch, vessel, tank, and fabricated piping applications.
Manufactured from normalized forged steel conforming to ASME SA105N, these half couplings provide a strong connection point where a full coupling is not required. Forged steel fitting dimensions conform to ASME B16.11, and the manufacturing facility is ISO certified.
Product Highlights
- 3000# forged steel socket weld half coupling
- Single socket weld connection
- Compact half-coupling configuration
- Useful for branch and fabricated piping connections
- Forged steel fitting material conforms to ASME SA105N
- Material is normalized
- Forged steel fitting dimensions conform to ASME B16.11
- NPT threads on applicable forged steel fittings conform to ASME B1.20.1
- Forged steel socket weld inserts conform to MSS-SP-79
- Forged steel unions conform to MSS-SP-83
- Forged steel outlet fittings conform to MSS-SP-97
- Manufacturing facility is ISO certified
- Product specification sheet available
- Certificate of Conformance available
Technical Specifications
| Product Type | Half Coupling |
|---|---|
| Pressure Class | 3000# |
| Material | Forged Steel |
| Connection Type | Socket Weld |
| Configuration | Half Coupling |
| Primary Function | Provide a Single Socket Weld Connection Point |
| Material Standard | ASME SA105N |
| Heat Treatment | Normalized |
| Dimensional Standard | ASME B16.11 |
| Thread Standard | ASME B1.20.1 for Applicable NPT Forged Steel Fittings |
| Socket Weld Insert Standard | MSS-SP-79 |
| Forged Steel Union Standard | MSS-SP-83 |
| Outlet Fitting Standard | MSS-SP-97 |
| Manufacturing | ISO-Certified Facility |
| Documentation | Specification Sheet and Certificate of Conformance Available |
Half Coupling Configuration
Socket Weld End
The machined socket accepts compatible pipe for welded installation.
Compact Body
The half-coupling design provides a shorter forged fitting body than a full coupling.
Attachment Side
The opposite side can be incorporated into compatible fabricated piping, vessel, tank, or branch connection assemblies.
Construction Details
These 3000# socket weld half couplings are manufactured from normalized forged steel conforming to ASME SA105N. The forged fitting dimensions conform to ASME B16.11.
The half-coupling configuration provides a single socket weld connection in a compact body, making it useful where a connection point must be added to another piping component or fabricated assembly.
Why Choose a Forged Steel Half Coupling?
Compact Connection Point
- Provides one socket weld connection
- Shorter body than a full coupling
- Useful in branch and fabricated connections
- Can be incorporated into compatible vessels or piping assemblies
- Designed for compatible 3000# socket weld systems
Forged Steel Construction
- Manufactured from forged steel
- Material conforms to ASME SA105N
- Normalized material condition
- Dimensions conform to ASME B16.11
- Manufactured in an ISO-certified facility
Half Coupling vs. Full Coupling
Half Coupling
A half coupling provides a single socket connection and is commonly incorporated into fabricated branch, tank, vessel, or piping connections.
Full Coupling
A full coupling provides socket connections at both ends and is designed to join two compatible pipe sections in a straight run.
Typical Applications
Industrial & Mechanical Piping
- Industrial process piping
- Mechanical piping systems
- Plant utility piping
- Fabricated piping assemblies
- Equipment connections
Fabricated Connections
- Branch connection assemblies
- Tank connections
- Vessel connections
- Equipment nozzles
- Compatible high-pressure socket weld systems
Applicable Forged Steel Standards
ASME SA105N & B16.11
Forged steel material conforms to ASME SA105N in the normalized condition, and fitting dimensions conform to ASME B16.11.
MSS-SP-79 & MSS-SP-83
Forged steel socket weld inserts conform to MSS-SP-79, while forged steel unions conform to MSS-SP-83.
MSS-SP-97
Forged steel outlet fittings conform to MSS-SP-97.
Ask Willy: Need Pipe Size Help?
Use our common pipe diameters and wall thickness chart to confirm sizing before ordering 3000# forged steel socket weld half couplings. You can also review the product specification sheet and Certificate of Conformance below.
Product Documentation
Product Specification Sheet

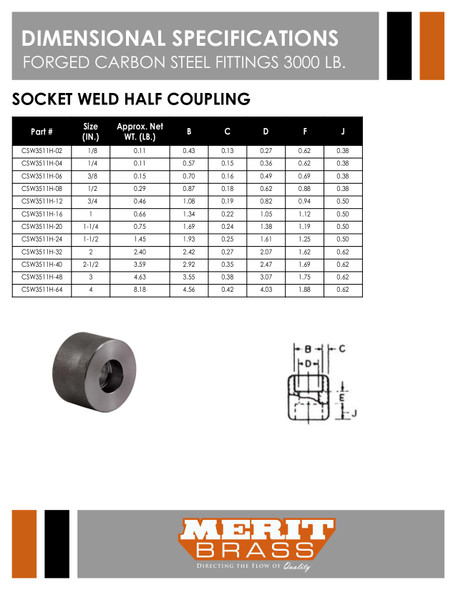

Review the specification sheet for dimensional and product-specific information on the 3000# socket weld half coupling.
Pipe Size Chart
Use the common pipe diameters and wall thickness chart to help confirm compatible pipe sizing before ordering.
Certificate of Conformance
Certificate of Conformance documentation is available through the linked PDF.
Frequently Asked Questions
What is a 3000# forged steel socket weld half coupling?
It is a compact forged steel fitting that provides a single socket weld connection for use in compatible piping and fabricated assemblies.
How is a half coupling different from a full coupling?
A half coupling provides one socket connection, while a full coupling provides socket connections on both ends for joining two pipe sections.
What type of connection does this fitting use?
This fitting uses a socket weld connection.
What material standard applies?
The supplied product information states that forged steel fitting material conforms to ASME SA105N.
Is the material normalized?
Yes. The supplied product information specifies normalized forged steel material.
What dimensional standard applies?
Forged steel fitting dimensions conform to ASME B16.11.
What standard applies to socket weld inserts?
Forged steel socket weld inserts conform to MSS-SP-79.
What standards apply to forged steel unions and outlet fittings?
Forged steel unions conform to MSS-SP-83, while forged steel outlet fittings conform to MSS-SP-97.
Is the manufacturing facility ISO certified?
Yes. The supplied product information states that the manufacturing facility is ISO certified.
What should I verify before ordering?
Confirm the nominal pipe size, 3000# class, socket weld configuration, intended attachment method, material requirements, and applicable piping-system specifications before ordering.
Important Ordering & Installation Notes
- Confirm the required nominal pipe size before ordering.
- This listing is for a 3000# forged steel socket weld half coupling.
- Confirm that a half coupling is appropriate for the intended branch or fabricated connection.
- Forged steel fitting material conforms to ASME SA105N and is normalized.
- Forged steel fitting dimensions conform to ASME B16.11.
- Verify compatibility with the adjoining pipe and attachment component.
- Confirm applicable pressure, temperature, material, dimensional, and project requirements.
- Use qualified welding procedures and personnel as required by the applicable piping code or project specification.
- Maintain the required socket weld fit-up and expansion gap where applicable.
- Inspect the socket and adjoining pipe before fit-up and welding.
- Review the product specification sheet before installation.
- Certificate of Conformance documentation is available from the link above.
