Dixon

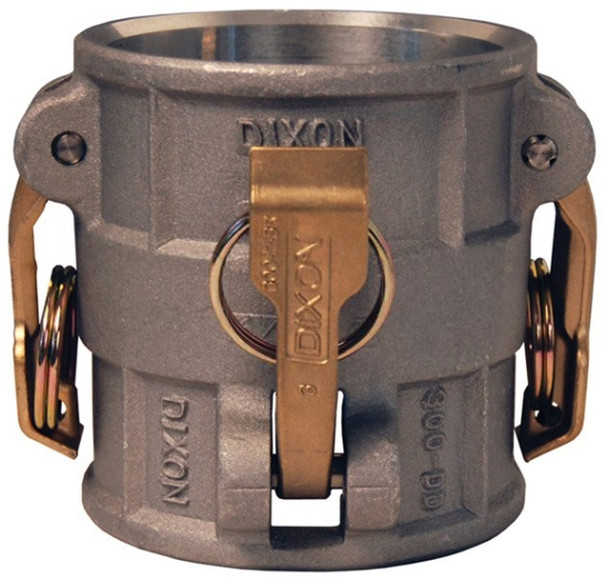

3" Aluminum Cam & Groove Type D Coupler x Female NPT

(No reviews yet) Write a Review
SKU:
NLDIX300-DD-AL
Availability:
Limited quantity available.
Weight:
1.70 LBS
*Images are for visual reference only.
  • 3" Aluminum Cam & Groove Type D Coupler x Female NPT
  • Dixon Valve
$66.00

Represents the combined quantity sold of all the sizes under this product SKU.
Sold:
Frequently bought together:

Description

Dixon 3" Aluminum Type D Cam & Groove Coupler x Female NPT

The Dixon 3" Aluminum Type D Cam & Groove Coupler is designed for fast, secure hose and piping connections in compatible fluid transfer systems.

Manufactured from durable 356-T6 aluminum, this fitting combines a 3" female cam and groove coupler with a 3" female NPT threaded connection. A nitrile rubber seal supports reliable sealing performance, while the lightweight, corrosion-resistant construction is suited for compatible water, petroleum, agricultural, and industrial liquid handling applications.

Product Highlights

  • 3" Type D cam & groove coupler
  • 3" female cam coupler x 3" female NPT connection
  • 356-T6 aluminum construction
  • Nitrile rubber seal
  • Maximum working pressure: 125 PSI
  • Interchanges with A-A-59326D camlock fittings
  • Lightweight, corrosion-resistant construction
  • Quick connect and disconnect operation
  • Designed for liquid transfer applications
  • Not recommended for compressed air or steam service

Technical Specifications

Brand Dixon
Product Type Cam & Groove Coupler x Female NPT
Fitting Type Type D
Nominal Size 3"
Connection 1 3" Female Cam & Groove Coupler
Connection 2 3" Female NPT
Body Material 356-T6 Aluminum
Seal Material Nitrile Rubber
Maximum Working Pressure 125 PSI
Interchange Standard A-A-59326D
Connection Operation Quick Connect / Disconnect
Intended Service Liquid Transfer Applications
Service Restriction Not Recommended for Compressed Air or Steam Service

Type D Connection Configuration

3" Female Cam & Groove Coupler

The female cam coupler end allows quick attachment to a compatible male cam and groove adapter, providing convenient connection and disconnection during liquid transfer operations.

3" Female NPT

The opposite end features a 3" female NPT threaded connection for secure attachment to compatible threaded piping or equipment.

356-T6 Aluminum Construction

The coupler is manufactured from 356-T6 aluminum, providing a strong yet lightweight body for dependable use in compatible liquid transfer systems.

The aluminum construction also provides corrosion resistance for demanding fluid handling environments.

Nitrile Rubber Seal

A nitrile rubber seal helps provide dependable sealing performance at the cam and groove connection during standard liquid transfer service.

Verify seal compatibility with the transferred media and operating conditions before use.

Maximum Working Pressure

125 PSI

The supplied product information lists a maximum working pressure of 125 PSI. Verify the pressure ratings of all connected piping, fittings, hoses, and equipment before operation.

A-A-59326D Interchange

This Type D coupler is designed to interchange with compatible standard cam and groove fittings meeting A-A-59326D.

Quick Connect & Disconnect Design

The female cam and groove connection provides quick connect and disconnect operation with compatible male camlock adapters, while the female NPT side provides a threaded connection to compatible piping or equipment.

Typical Applications

  • Water transfer systems
  • Compatible petroleum applications
  • Agricultural liquid handling
  • Industrial liquid transfer
  • Camlock-to-threaded piping connections
  • General compatible fluid handling systems

Installation & Service Notes

This Type D coupler is intended for liquid transfer applications. Verify media compatibility, nitrile seal compatibility, system pressure, NPT thread compatibility, and mating cam and groove components before installation.

The supplied product information states that this fitting is not recommended for compressed air or steam service.

Willy knows his Dixon aluminum Type D cam and groove couplers
Ask Willy: Need Help with This 3" Type D Coupler?

Our specialists can help with Type D fitting selection, cam and groove compatibility, female NPT connections, pressure requirements, and nitrile seal compatibility.

Email the GetPipe.com Team Visit Quick Support

Frequently Asked Questions

What is a Type D cam and groove fitting?

This Type D fitting combines a female cam and groove coupler with a female NPT threaded connection.

What size is this Type D coupler?

The supplied product information identifies this as a 3" Type D cam and groove coupler.

What are the connections?

The fitting combines a 3" female cam and groove coupler with a 3" female NPT threaded connection.

What does the female camlock end connect to?

The female cam and groove coupler is designed for connection to a compatible male cam and groove adapter.

What material is the fitting made from?

The coupler is manufactured from 356-T6 aluminum.

What seal material is used?

The supplied product information identifies a nitrile rubber seal.

What is the maximum working pressure?

The supplied product information lists a maximum working pressure of 125 PSI.

Does this fitting interchange with standard camlock fittings?

Yes. The supplied product information states that it interchanges with compatible cam and groove fittings meeting A-A-59326D.

What applications is this coupler designed for?

The supplied information identifies compatible water, petroleum, agricultural, and industrial liquid handling systems.

Can this Type D coupler be used for compressed air or steam?

No. The supplied product information states that the fitting is not recommended for compressed air or steam service.

Important Ordering & Product Notes

  • This listing covers the Dixon 3" Aluminum Type D Cam & Groove Coupler x Female NPT.
  • Fitting type is Type D.
  • Connection configuration is 3" female cam & groove coupler x 3" female NPT.
  • Body material is 356-T6 aluminum.
  • Seal material is nitrile rubber.
  • Maximum working pressure is listed as 125 PSI.
  • Designed to interchange with compatible A-A-59326D cam and groove fittings.
  • Designed for liquid transfer applications.
  • The specific manufacturer part number, exact female NPT thread designation, overall dimensions, product weight, and temperature range were not supplied in the provided product information.
  • Verify media compatibility, seal compatibility, pressure ratings, thread compatibility, and installation requirements before use.
  • Not recommended for compressed air or steam service.
