Dixon

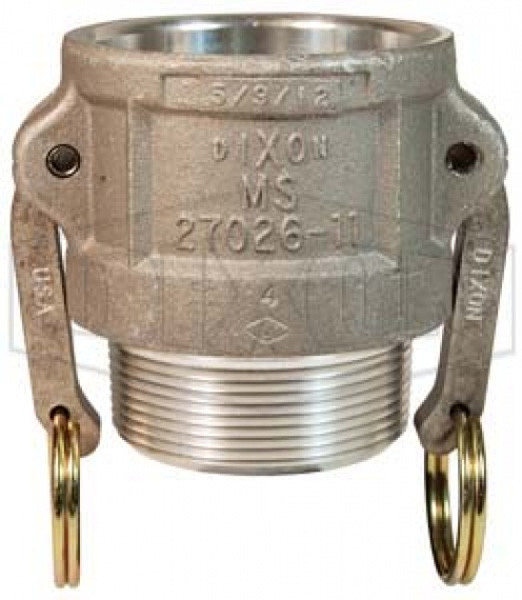

2" Type B Cam & Groove Coupler x Male NPT 356T6 Aluminum
- SKU:
- NLDIX200-B-AL
- Availability:
- Limited quantity available.
- Weight:
- 1.00 LBS
Description
Dixon 200-B-AL 2" Type B Cam & Groove Coupler x Male NPT Aluminum Fitting
The Dixon 200-B-AL 2" Type B Cam & Groove Coupler is designed for fast, secure hose connections in compatible liquid transfer systems.
Manufactured from durable 356T6 aluminum, this Type B fitting features a female cam & groove coupler on one end and a 2" male NPT threaded connection on the other. Precision-machined construction, stainless steel cam arm pins, and a nitrile Buna-N gasket support dependable connection and sealing performance in industrial fluid handling applications.
Product Highlights
- Dixon 2" Type B cam and groove coupler
- Manufacturer part number: 200-B-AL
- Female cam & groove coupler x 2" male NPT thread
- 356T6 aluminum construction
- Nitrile Buna-N gasket
- Stainless steel cam arm pins
- Maximum operating pressure: 250 PSI
- Precision machined to rigid tolerances
- Designed for liquid transfer applications
- Suitable for industrial, agricultural, petroleum, chemical, construction, and water transfer systems
- Package quantity: 1 each
- Not for compressed air or steam service
Technical Specifications
| Brand | Dixon Valve & Coupling |
|---|---|
| Manufacturer Part Number | 200-B-AL |
| Alternate SKUs | 200BAL, DIX200-B-AL, NLDIX200-B-AL |
| Product Type | Cam & Groove Coupler |
| Style | Type B |
| Nominal Size | 2" |
| Connection 1 | Female Cam & Groove Coupler |
| Connection 2 | 2" Male NPT Thread |
| Material | 356T6 Aluminum |
| Gasket Material | Nitrile Buna-N |
| Cam Arm Pins | Stainless Steel |
| Maximum Operating Pressure | 250 PSI |
| Package Quantity | 1 Each |
| Designed For | Liquid Transfer Applications |
| Service Restriction | Not for Compressed Air or Steam Service |
Type B Connection Configuration
Female Cam & Groove Coupler
One end features a 2" female cam & groove coupler for quick connection to a compatible male camlock adapter.
2" Male NPT Connection
The opposite end features a 2" male NPT threaded connection for connection to compatible female threaded components within the fluid transfer system.
356T6 Aluminum Construction
The Dixon 200-B-AL is manufactured from durable 356T6 aluminum, providing a practical fitting construction for compatible industrial, agricultural, petroleum, chemical, construction, and water transfer systems.
Nitrile Buna-N Gasket
The female cam and groove coupler incorporates a nitrile Buna-N gasket to support dependable sealing performance when connected to a compatible male camlock adapter. Verify gasket compatibility with the fluid being transferred before use.
Stainless Steel Cam Arm Pins
The 200-B-AL uses stainless steel cam arm pins as part of its female cam and groove coupling assembly.
Precision-Machined Construction
The fitting is precision machined to rigid tolerances to support dependable fit and connection performance with compatible cam and groove components.
Maximum Operating Pressure
250 PSI
The supplied product information lists a maximum operating pressure of 250 PSI. Verify the pressure ratings of the gasket, mating fitting, and all other components when determining the allowable operating pressure of the complete system.
Typical Applications
- Industrial liquid transfer
- Agricultural fluid handling
- Petroleum transfer systems
- Chemical transfer applications
- Construction fluid handling
- Water transfer systems
Service Restrictions
Cam and groove couplings are intended for liquid transfer service and should not be used for compressed air or steam applications. Verify material compatibility, gasket selection, pressure ratings, and thread requirements before installation.
Our specialists can help with camlock compatibility, male NPT connections, Buna-N gasket selection, pressure requirements, aluminum fitting selection, and application questions for the Dixon 200-B-AL.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is the Dixon 200-B-AL?
The 200-B-AL is a 2" Type B aluminum cam and groove coupler featuring a female camlock coupler on one end and a 2" male NPT threaded connection on the other.
What connections does the 200-B-AL have?
The fitting combines a 2" female cam & groove coupler with a 2" male NPT threaded connection.
What material is the 200-B-AL made from?
The fitting is manufactured from 356T6 aluminum.
What gasket does the 200-B-AL use?
The supplied product information identifies a nitrile Buna-N gasket.
What material are the cam arm pins?
The supplied product information identifies the cam arm pins as stainless steel.
What is the maximum operating pressure?
The supplied product information lists a maximum operating pressure of 250 PSI.
Is the 200-B-AL precision machined?
Yes. The supplied product information states that the fitting is precision machined to rigid tolerances.
What applications is the 200-B-AL designed for?
The supplied product information identifies industrial, agricultural, petroleum, chemical, construction, and water transfer systems as applications for this liquid transfer fitting.
How many couplers are included?
The supplied product information lists a package quantity of 1 each.
Can the 200-B-AL be used for compressed air or steam?
No. The supplied product information states that cam and groove couplings should not be used for compressed air or steam applications.
Important Ordering & Product Notes
- This listing covers the Dixon 200-B-AL 2" Type B Cam & Groove Coupler x Male NPT Aluminum Fitting.
- Manufacturer part number: 200-B-AL.
- Alternate SKUs: 200BAL, DIX200-B-AL, NLDIX200-B-AL.
- Nominal size is 2".
- Connection configuration is female cam & groove coupler x 2" male NPT thread.
- Construction material is 356T6 aluminum.
- Gasket material is nitrile Buna-N.
- Cam arm pins are stainless steel.
- Maximum operating pressure is listed as 250 PSI.
- Package quantity is 1 each.
- Designed for liquid transfer applications.
- Verify material compatibility, gasket selection, pressure ratings, and thread requirements before installation.
- Do not use cam and groove couplings for compressed air or steam applications.
