Dixon

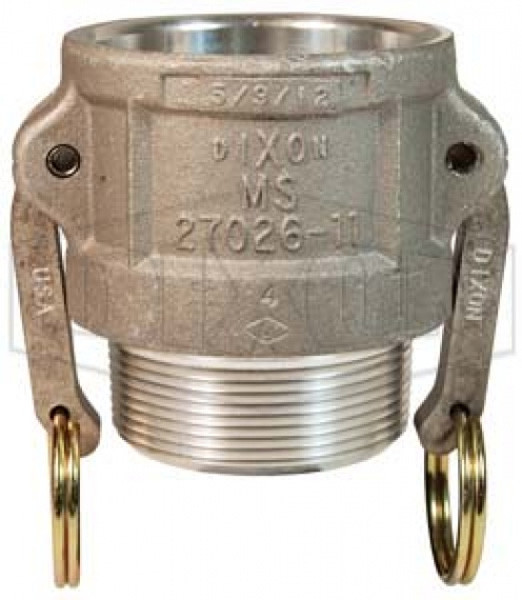

1-1/2" Type B Aluminum Cam & Groove Coupler x Male NPT
- SKU:
- NLDIX150-B-AL
- Availability:
- Limited quantity available.
- Weight:
- 0.70 LBS
Description
Dixon 150-B-AL 1-1/2" Type B Aluminum Cam & Groove Coupler x Male NPT
The Dixon 150-B-AL 1-1/2" Type B Cam & Groove Coupler is designed for quick, secure hose and pipe connections in compatible liquid transfer applications.
Constructed from durable 356T6 aluminum, this fitting combines a 1-1/2" female cam & groove coupler with a 1-1/2" male NPT connection. Precision-machined construction, stainless steel cam arm pins, and a Buna-N nitrile rubber gasket support dependable connection and sealing performance in demanding industrial fluid handling environments.
Product Highlights
- Dixon 1-1/2" Type B cam and groove coupler
- Manufacturer part number: 150-B-AL
- Female cam & groove coupler x male NPT connection
- 1-1/2" female camlock connection
- 1-1/2" male NPT connection
- 356T6 aluminum construction
- Buna-N nitrile rubber gasket
- Maximum operating pressure: 250 PSI
- Stainless steel cam arm pins
- Precision machined for reliable fit and performance
- Interchanges with products manufactured to A-A-59326 standards
- Designed for liquid transfer applications
- Approximate weight: 0.76 lbs
- Not intended for compressed air or steam service
Technical Specifications
| Brand | Dixon Valve & Coupling |
|---|---|
| Manufacturer Part Number | 150-B-AL |
| Alternate SKUs | 150BAL, DIX150-B-AL, NLDIX150-B-AL |
| Product Type | Cam & Groove Coupler |
| Fitting Type | Type B |
| Nominal Size | 1-1/2" |
| Connection 1 | 1-1/2" Female Cam & Groove Coupler |
| Connection 2 | 1-1/2" Male NPT |
| Material | 356T6 Aluminum |
| Gasket Material | Nitrile Rubber / Buna-N |
| Cam Arm Pins | Stainless Steel |
| Maximum Operating Pressure | 250 PSI |
| Interchange Standard | A-A-59326 |
| Approximate Weight | 0.76 lbs |
| Designed For | Liquid Transfer Applications |
| Service Restriction | Not Intended for Compressed Air or Steam Service |
Type B Connection Configuration
Female Cam & Groove Coupler
The coupling end features a 1-1/2" female cam & groove connection designed to engage a compatible male camlock adapter for quick connection and disconnection.
1-1/2" Male NPT
The opposite end features a 1-1/2" male NPT connection for attachment to compatible female threaded piping, valves, equipment, or other fluid transfer components.
356T6 Aluminum Construction
The Dixon 150-B-AL is constructed from 356T6 aluminum, providing lightweight strength and corrosion resistance for general liquid transfer service. The supplied product information lists an approximate fitting weight of 0.76 lbs.
Buna-N Nitrile Rubber Gasket
The coupler includes a Buna-N nitrile rubber gasket to support dependable sealing when connected with compatible cam and groove components and liquids.
Stainless Steel Cam Arm Pins
The 150-B-AL uses stainless steel cam arm pins to support secure coupling engagement and long-lasting durability during repeated connection and disconnection.
Precision-Machined Design
The fitting is precision machined to tight tolerances to support reliable fit and performance with compatible cam and groove components.
Maximum Operating Pressure
250 PSI Maximum
The supplied product information lists a maximum operating pressure of 250 PSI. The allowable operating pressure of the complete system must also account for the pressure ratings of the hose, piping, valves, couplings, and other connected components.
A-A-59326 Interchange
The Dixon 150-B-AL is designed to interchange with compatible products manufactured to A-A-59326 standards.
Typical Applications
- Industrial liquid transfer
- Agricultural fluid handling
- Petroleum applications
- Chemical applications
- Construction fluid handling
- Compatible hose and pipe connection systems
Service Restrictions
Cam and groove fittings are designed for liquid transfer applications only. The supplied product information states that the Dixon 150-B-AL is not intended for compressed air or steam service.
Our specialists can help with camlock compatibility, NPT connections, gasket selection, pressure requirements, material compatibility, and application questions for the Dixon 150-B-AL 1-1/2" Type B Aluminum Cam & Groove Coupler.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is the Dixon 150-B-AL?
The 150-B-AL is a 1-1/2" Type B aluminum cam and groove coupler featuring a female camlock connection and a 1-1/2" male NPT threaded connection.
What connections does the 150-B-AL have?
The fitting has a 1-1/2" female cam & groove coupler on one end and a 1-1/2" male NPT connection on the other.
What material is the 150-B-AL made from?
The coupler is manufactured from 356T6 aluminum.
What gasket does the 150-B-AL use?
The supplied product information identifies a Buna-N nitrile rubber gasket.
What material are the cam arm pins?
The cam arm pins are stainless steel.
What is the maximum operating pressure?
The supplied product information lists a maximum operating pressure of 250 PSI.
What standard does the 150-B-AL interchange with?
The supplied product information states that the fitting interchanges with compatible products manufactured to A-A-59326 standards.
How much does the 150-B-AL weigh?
The supplied product information lists an approximate weight of 0.76 lbs.
What applications are identified for the 150-B-AL?
The supplied product information identifies industrial, agricultural, petroleum, chemical, and construction environments for compatible liquid transfer applications.
Can the 150-B-AL be used for compressed air or steam?
No. The supplied product information states that the fitting is not intended for compressed air or steam service.
Important Ordering & Product Notes
- This listing covers the Dixon 150-B-AL 1-1/2" Type B Aluminum Cam & Groove Coupler x Male NPT.
- Manufacturer part number: 150-B-AL.
- Alternate SKUs: 150BAL, DIX150-B-AL, NLDIX150-B-AL.
- Nominal size is 1-1/2".
- Connection configuration is 1-1/2" female cam & groove coupler x 1-1/2" male NPT.
- Construction material is 356T6 aluminum.
- Gasket material is Buna-N nitrile rubber.
- Cam arm pins are stainless steel.
- Maximum operating pressure is listed as 250 PSI.
- Approximate weight is 0.76 lbs.
- Designed to interchange with compatible products manufactured to A-A-59326 standards.
- Designed for liquid transfer applications only.
- Not intended for compressed air or steam service.
