Dixon

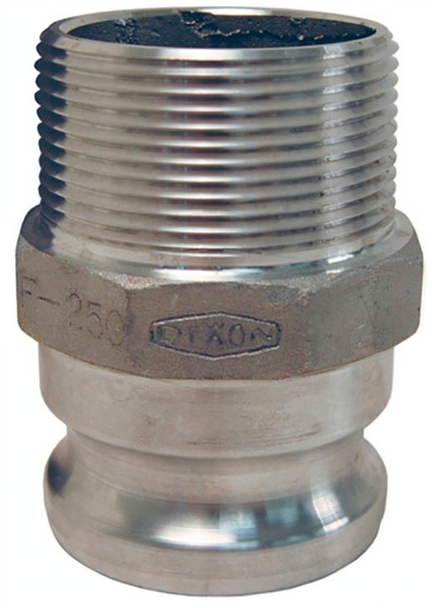

2" Aluminum Type F Adapter x Male NPT Camlock Fitting
- SKU:
- NLDIX200-F-AL
- Availability:
- Limited quantity available.
- Weight:
- 1.00 LBS
Description
Dixon 2" Aluminum Type F Adapter x Male NPT Camlock Fitting
The Dixon 2" Aluminum Type F Cam & Groove Adapter is designed for fast, secure connections between compatible camlock couplings and male NPT threaded connections in liquid transfer systems.
Manufactured from 356T6 aluminum, this Type F fitting combines a male cam and groove adapter on one end with a male NPT thread on the other. Its corrosion-resistant aluminum construction and precision-machined design provide dependable fitment while keeping the fitting lightweight for industrial fluid handling applications.
Product Highlights
- 2" Type F cam and groove adapter
- Male camlock adapter x male NPT thread configuration
- 356T6 aluminum construction
- Corrosion-resistant aluminum design
- Precision-machined construction
- Maximum operating pressure: up to 250 PSI
- Produced to A-A-59326D interchange standards
- Compatible with standard cam and groove couplings
- Quick connect and disconnect camlock operation
- Designed for liquid transfer applications
- Not recommended for compressed air or steam service
Technical Specifications
| Brand | Dixon |
|---|---|
| Product Type | Cam & Groove Adapter |
| Fitting Type | Type F |
| Nominal Size | 2" |
| Connection 1 | Male Cam & Groove Adapter |
| Connection 2 | Male NPT Thread |
| Configuration | Male Camlock Adapter x Male NPT |
| Material | 356T6 Aluminum |
| Construction | Precision Machined |
| Maximum Operating Pressure | Up to 250 PSI |
| Interchange Standard | A-A-59326D |
| Intended Service | Liquid Transfer Applications |
| Service Restriction | Not Recommended for Compressed Air or Steam Service |
Type F Connection Configuration
Male Cam & Groove Adapter
One end features a 2" male cam and groove adapter designed for quick connection and disconnection with a compatible female camlock coupler.
Male NPT Connection
The opposite end features a male NPT threaded connection for attachment to compatible threaded pipe, hose, or equipment connections.
356T6 Aluminum Construction
The Type F adapter is manufactured from 356T6 aluminum, providing a lightweight and corrosion-resistant fitting for compatible liquid transfer systems.
Precision-Machined Design
The aluminum fitting features precision-machined construction to provide dependable fitment with compatible cam and groove couplings and threaded connections.
Male NPT Threaded Connection
The male NPT end allows the Type F adapter to connect to a compatible threaded pipe, hose, or equipment connection, while the opposite camlock adapter end provides quick connection to a compatible female cam and groove coupler.
Maximum Operating Pressure
Up to 250 PSI
The supplied product information lists a maximum operating pressure of up to 250 PSI. Verify the pressure ratings of the mating coupler, threaded connection, and all other components before determining the allowable operating pressure of the complete system.
A-A-59326D Interchange
The Type F adapter is produced to A-A-59326D interchange standards and is designed for compatibility with standard cam and groove couplings.
Quick Connect & Disconnect Operation
The male cam and groove adapter end supports quick connection and disconnection with a compatible female camlock coupler, while the male NPT end provides a threaded connection to compatible system components.
Liquid Transfer Applications
The Dixon Type F adapter is designed for liquid transfer applications requiring a transition between a cam and groove connection and a male NPT threaded connection.
Service Restrictions
This cam and groove fitting is intended for liquid service applications and is not recommended for compressed air or steam service. Verify chemical compatibility and pressure requirements before installation.
Our specialists can help with Type F fitting selection, camlock compatibility, male NPT connections, pressure requirements, and aluminum cam and groove applications.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is a Type F cam and groove adapter?
A Type F fitting combines a male cam and groove adapter with a male NPT threaded connection.
What size is this Type F adapter?
The supplied product information identifies this fitting as a 2" Type F adapter.
What material is the adapter made from?
The fitting is manufactured from 356T6 aluminum.
What is the connection configuration?
The fitting has a male cam and groove adapter x male NPT thread configuration.
What is the maximum operating pressure?
The supplied product information lists a maximum operating pressure of up to 250 PSI.
What interchange standard does the fitting meet?
The supplied product information states that the fitting is produced to A-A-59326D interchange standards.
Is the fitting compatible with standard cam and groove couplings?
Yes. The supplied product information identifies the Type F adapter as compatible with standard cam and groove couplings.
What can the male NPT end connect to?
The supplied product information states that the male NPT threaded end allows connection to compatible threaded pipe, hose, or equipment connections.
What type of service is this fitting designed for?
The supplied product information identifies the Type F adapter for liquid transfer applications.
Can this Type F adapter be used for compressed air or steam?
The supplied product information states that the fitting is not recommended for compressed air or steam service.
Important Ordering & Product Notes
- This listing covers a Dixon 2" Aluminum Type F Adapter x Male NPT Camlock Fitting.
- Fitting type is Type F.
- Nominal size is 2".
- Connection configuration is male cam & groove adapter x male NPT.
- Construction material is 356T6 aluminum.
- Features precision-machined construction.
- Maximum operating pressure is listed as up to 250 PSI.
- Produced to A-A-59326D interchange standards.
- Compatible with standard cam and groove couplings.
- The specific male NPT thread designation and manufacturer part number were not supplied in the provided product information.
- Verify the required thread connection before ordering or installation.
- Verify chemical compatibility and pressure requirements before installation.
- Designed for liquid transfer applications.
- Not recommended for compressed air or steam service.
