Dixon

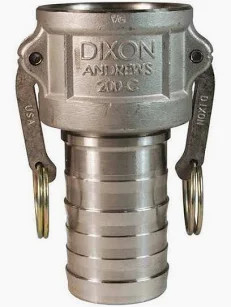

1-1/4" Stainless Steel Type C Camlock Coupler x Hose Shank
- SKU:
- NLDIX125-C-SS
- Availability:
- Limited quantity available.
- Weight:
- 1.50 LBS
Description
Dixon 125-C-SS 1-1/4" Stainless Steel Type C Camlock Coupler x Hose Shank
The Dixon 125-C-SS 1-1/4" Type C Cam & Groove Coupler is designed for secure and efficient hose connections in industrial fluid transfer and hose assembly applications.
This Type C fitting combines a 1-1/4" female camlock coupler with a 1-1/4" hose shank, allowing quick connection and disconnection without the need for tools. Manufactured from durable 316 stainless steel, the 125-C-SS provides corrosion resistance, dependable sealing performance, and long service life in demanding environments.
Product Highlights
- Dixon Type C cam and groove coupler
- Model: 125-C-SS
- 1-1/4" female camlock coupler connection
- 1-1/4" hose shank connection
- 316 stainless steel construction
- Nitrile Buna-N rubber gasket
- Maximum operating pressure: 250 PSI
- Precision machined for reliable sealing
- Stainless steel cam arm pins
- Long shank design helps reduce hose damage
- Quick connection and disconnection without tools
- Designed for industrial fluid transfer and hose assembly applications
- Not recommended for compressed air or steam service
Technical Specifications
| Brand | Dixon |
|---|---|
| Model | 125-C-SS |
| Product Type | Type C Cam & Groove Coupler |
| Nominal Size | 1-1/4" |
| Connection 1 | 1-1/4" Female Camlock Coupler |
| Connection 2 | 1-1/4" Hose Shank |
| Body Material | 316 Stainless Steel |
| Gasket Material | Nitrile Buna-N Rubber |
| Cam Arm Pins | Stainless Steel |
| Maximum Operating Pressure | 250 PSI |
| Shank Design | Long Shank |
| Intended Application | Industrial Fluid Transfer and Hose Assemblies |
| Service Restriction | Not Recommended for Compressed Air or Steam |
Type C Connection Configuration
1-1/4" Female Camlock Coupler
The female camlock end allows quick connection and disconnection with compatible cam and groove adapters without the need for tools.
1-1/4" Hose Shank
The opposite end features a 1-1/4" hose shank that provides an attachment point for compatible hose assemblies.
316 Stainless Steel Construction
The 125-C-SS is manufactured from 316 stainless steel for strength, durability, and enhanced corrosion resistance in demanding service environments. Its precision-machined construction helps provide reliable sealing with compatible cam and groove components.
Long Shank Design
The supplied product information identifies a long shank design that helps reduce hose damage while providing a secure hose attachment point for compatible assemblies.
Buna-N Gasket
The coupler is equipped with a nitrile Buna-N rubber gasket for dependable sealing performance at the cam and groove connection. Verify Buna-N compatibility with the specific fluid or media being transferred before use.
Stainless Steel Cam Arm Pins
The 125-C-SS features stainless steel cam arm pins for corrosion resistance and dependable coupling operation. The camlock design allows the coupler to be quickly connected to or disconnected from compatible cam and groove adapters.
Maximum Operating Pressure
250 PSI Maximum
The supplied product information lists a maximum operating pressure of 250 PSI. Verify the pressure ratings of the hose and all other connected components when determining the allowable operating pressure of the complete assembly.
Typical Applications
- Industrial fluid transfer
- Cam and groove hose assemblies
- Industrial hose connections
- Fluid handling systems
- Applications requiring corrosion-resistant 316 stainless steel construction
Service Restrictions
The supplied product information states that the Dixon 125-C-SS is not recommended for compressed air or steam service. Verify hose size, media compatibility, pressure requirements, and gasket material suitability before installation.
Our specialists can help with hose compatibility, gasket material, pressure, and connection questions for the Dixon 125-C-SS 1-1/4" Stainless Steel Type C Cam & Groove Coupler.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is the Dixon 125-C-SS?
The 125-C-SS is a 1-1/4" Type C cam and groove coupler featuring a female camlock connection and hose shank.
What connections does the 125-C-SS have?
The supplied product information identifies a 1-1/4" female camlock coupler x 1-1/4" hose shank configuration.
What material is the 125-C-SS made from?
The coupler is manufactured from 316 stainless steel.
What gasket does the 125-C-SS use?
The supplied product information identifies a nitrile Buna-N rubber gasket.
What is the maximum operating pressure?
The supplied product information lists a maximum operating pressure of 250 PSI.
What are the cam arm pins made from?
The supplied product information identifies the cam arm pins as stainless steel.
Does the 125-C-SS have a long hose shank?
Yes. The supplied product information identifies a long shank design that helps reduce hose damage.
Does the camlock connection require tools?
The supplied product information states that the camlock design allows quick connection and disconnection without the need for tools.
What is the 125-C-SS designed for?
The supplied product information identifies industrial fluid transfer and hose assembly applications.
Can the 125-C-SS be used for compressed air or steam?
No. The supplied product information states that the fitting is not recommended for compressed air or steam service.
Important Ordering & Product Notes
- This listing covers the Dixon 125-C-SS 1-1/4" Stainless Steel Type C Camlock Coupler x Hose Shank.
- Connection configuration is 1-1/4" female camlock coupler x 1-1/4" hose shank.
- Body construction is listed as 316 stainless steel.
- The supplied configuration includes a nitrile Buna-N rubber gasket.
- Cam arm pins are stainless steel.
- The supplied product information identifies a long shank design that helps reduce hose damage.
- Maximum operating pressure is listed as 250 PSI.
- Not recommended for compressed air or steam service.
- Verify hose size, media compatibility, pressure requirements, gasket material suitability, and connected component ratings before installation.
- Use with compatible cam and groove fittings for proper sealing and performance.
