Dixon

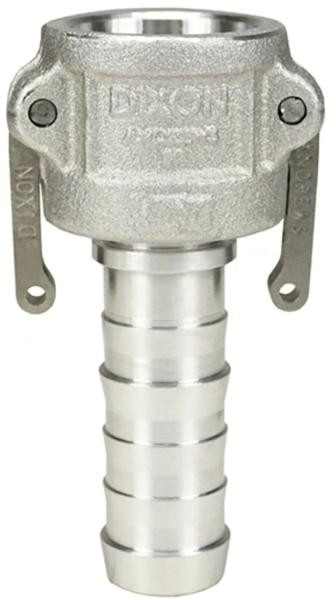

1" Aluminum Female Camlock x Hose Shank Coupler Type C
- SKU:
- NLDIX100-C-AL
- Availability:
- Limited quantity available.
- Weight:
- 0.50 LBS
Description
Dixon 100-C-AL 1" Aluminum Female Camlock x Hose Shank Coupler Type C
The Dixon 100-C-AL 1" Type C Cam & Groove Coupler is designed for fast, secure hose connections in compatible industrial fluid transfer applications.
This Type C fitting combines a 1" female camlock coupler with a hose shank connection. Manufactured from 356T6 aluminum, the 100-C-AL includes a nitrile rubber Buna-N gasket, stainless steel cam arm pins, and safety clips for dependable coupling performance.
Product Highlights
- Dixon Type C cam and groove coupler
- Model: 100-C-AL
- 1" female camlock x hose shank connection
- 356T6 aluminum construction
- Lightweight and corrosion resistant
- Nitrile rubber Buna-N gasket
- Stainless steel cam arm pins with safety clips
- Precision-machined construction
- Built to commercial A-A-59326D standards
- Maximum pressure rating: 250 PSI
- Approximate length: 4-1/2"
- Not recommended for compressed air or steam service
Technical Specifications
| Brand | Dixon |
|---|---|
| Model | 100-C-AL |
| Product Type | Type C Cam & Groove Coupler |
| Size | 1" |
| Connection 1 | Female Camlock Coupler |
| Connection 2 | Hose Shank |
| Material | 356T6 Aluminum |
| Gasket Material | Nitrile Rubber / Buna-N |
| Cam Arm Pins | Stainless Steel |
| Safety Clips | Included |
| Maximum Pressure Rating | 250 PSI |
| Approximate Length | 4-1/2" |
| Commercial Standard | A-A-59326D |
| Service Restriction | Not Recommended for Compressed Air or Steam |
Type C Connection Configuration
1" Female Camlock Coupler
The coupling end features a 1" female camlock connection for quick connection and disconnection with compatible cam and groove adapters.
Hose Shank
The opposite end features a hose shank connection designed for integration into compatible hose assemblies used in liquid transfer systems.
356T6 Aluminum Construction
The 100-C-AL is manufactured from 356T6 aluminum, providing a combination of strength, reduced weight, and corrosion resistance for demanding fluid transfer applications.
Cam Arms & Safety Clips
The coupling incorporates stainless steel cam arm pins with safety clips. These components support secure coupling performance during hose connection and disconnection.
Buna-N Gasket
A nitrile rubber Buna-N gasket is included in the supplied configuration to provide sealing between compatible cam and groove connections. Verify gasket compatibility with the liquid being transferred before use.
Pressure Rating
Maximum 250 PSI
The supplied product information lists a maximum pressure rating of 250 PSI. Verify the pressure ratings of the hose and all other connected components when determining allowable system pressure.
A-A-59326D Standard
The supplied product information identifies the Dixon 100-C-AL as being built to commercial A-A-59326D standards.
Typical Applications
- Industrial fluid transfer
- Petroleum handling systems
- Compatible chemical transfer applications
- Agricultural fluid handling
- Water handling systems
- Cam and groove hose assemblies
Service Restrictions
The supplied product information states that the 100-C-AL is not recommended for compressed air or steam service. Verify hose compatibility, pressure ratings, gasket compatibility, and material suitability before installation or use.
Our specialists can help with hose, connection, gasket, and application questions for the Dixon 100-C-AL 1" Aluminum Type C Cam & Groove Coupler.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is the Dixon 100-C-AL?
The 100-C-AL is a 1" aluminum Type C cam and groove coupler featuring a female camlock connection and hose shank.
What connections does the 100-C-AL have?
The supplied product information identifies a 1" female camlock coupler x hose shank configuration.
What material is the 100-C-AL made from?
The coupling is manufactured from 356T6 aluminum.
What gasket does the 100-C-AL use?
The supplied configuration includes a nitrile rubber Buna-N gasket.
What are the cam arm pins made from?
The supplied product information identifies stainless steel cam arm pins.
Are safety clips included?
Yes. Safety clips are identified among the supplied coupling features.
What is the maximum pressure rating?
The supplied product information lists a maximum pressure rating of 250 PSI.
How long is the 100-C-AL?
The supplied product information lists an approximate length of 4-1/2".
What commercial standard does the coupling meet?
The supplied product information identifies commercial A-A-59326D standards.
Can the 100-C-AL be used with compressed air or steam?
No. The supplied product information states that it is not recommended for compressed air or steam service.
Important Ordering & Product Notes
- This listing covers the Dixon 100-C-AL 1" Aluminum Female Camlock x Hose Shank Type C Coupler.
- Connection configuration is 1" female camlock coupler x hose shank.
- Construction material is listed as 356T6 aluminum.
- The supplied configuration includes a nitrile rubber Buna-N gasket.
- Cam arm pins are stainless steel and safety clips are included.
- Maximum pressure rating is listed as 250 PSI.
- Approximate overall length is listed as 4-1/2".
- The supplied product information identifies construction to commercial A-A-59326D standards.
- Not recommended for compressed air or steam service.
- Verify hose compatibility, pressure ratings, gasket compatibility, material suitability, and connected component ratings before installation or use.
