Weldbend Corporation

Weld Short Radius 180 Return Bend - Domestic

(No reviews yet) Write a Review
SKU:
WDRBSR
Availability:
Usually Ships Same Day
Weight:
0.00 LBS
Ships From:
Chicago, Illinois
*Images are for visual reference only.

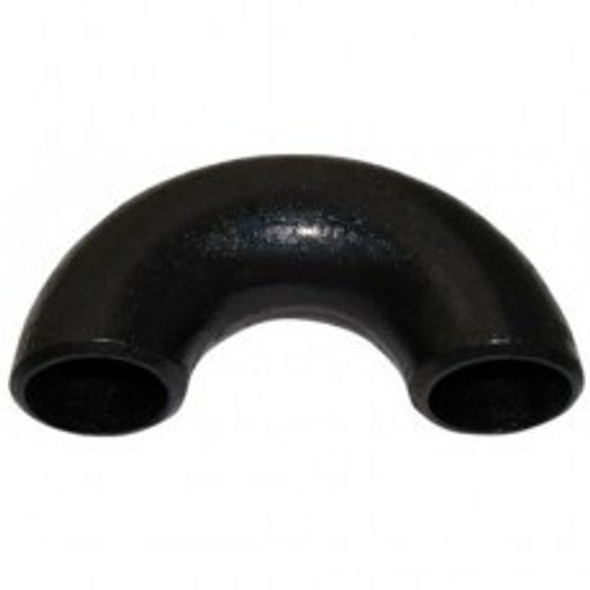

  • Weldbend Short Radius 180° Return Bend
  • Weldbend Short Radius 180° Return Bend Catalog Dimensions
Request a Quote — Special Freight Requirements

Frequently bought together:

Description

WELDBEND • DOMESTIC CARBON STEEL

Weldbend Domestic Short Radius 180° Return Bend

Weldbend domestic short radius 180° return bends provide a compact full return in carbon steel piping systems. Manufactured in the USA for butt-weld installations, this GetPipe product page includes Standard and XS wall options.

DOMESTICCARBON STEELBUTT WELD180° RETURNASME B16.9ASTM A234 WPB
✓

Domestic Weldbend Fitting

Manufactured by Weldbend in the United States for industrial carbon steel piping applications.

✓

Compact 180° Return

Provides a full 180-degree return using a short-radius butt-weld fitting configuration.

✓

Standard & XS Options

Select the required pipe size and wall option from the available product choices above.

PRODUCT SPECIFICATIONS
ManufacturerWeldbend
Product TypeShort Radius 180° Return Bend
ConnectionButt Weld
MaterialCarbon Steel
Material SpecificationASTM A234 WPB
Dimensional StandardASME B16.9
Available WallStandard / XS
OriginDomestic / USA
ABOUT THIS PRODUCT

Compact Full Return for Welded Piping

A short radius 180° return bend reverses the direction of a piping run in a tighter footprint than a long-radius return bend. It is intended for welded carbon steel piping layouts where space is limited.

Need help selecting the correct product?Confirm the required nominal pipe size or size combination and wall option before ordering. For sizes not shown, special requirements or product questions, call GetPipe at 1-800-410-4625.
TECHNICAL RESOURCES

Printable Downloads

Manufacturer literature and technical reference documents for Weldbend fittings.

PDFWeldbend Full CatalogShort Radius 180° Return Bend — see catalog page 46›PDFFitting DataTechnical fitting reference information›PDFMaterial Safety DataManufacturer safety documentation›PDFISO CertificateWeldbend certification document›PDFPallet QuantitiesManufacturer pallet quantity reference›
COMMON QUESTIONS

Short Radius 180° Return Bend FAQs

What is a short radius 180° return bend?
It is a butt-weld fitting used to reverse a piping run by 180 degrees in a compact return configuration.
How does it differ from a long radius return bend?
The short-radius configuration provides the same 180-degree return in a tighter footprint.
What material specification applies?
This product family is manufactured from carbon steel and conforms to ASTM A234 WPB.
What dimensional standard applies?
Weldbend lists this return bend as conforming to ASME B16.9.
What wall options are available?
This GetPipe product page includes Standard and XS wall options.
What if I need something not shown?
Contact GetPipe at 1-800-410-4625 for special requirements or product assistance.
BEFORE YOU ORDERVerify size and wall.
✓Select the required nominal pipe size or size combination and Standard or XS wall option from the product choices above.
✓Dimensions and approximate weights should be verified using the Weldbend catalog when required for fabrication, engineering or shipping purposes.
✓For sizes not shown, special requirements or assistance, call GetPipe at 1-800-410-4625.
