Titan Flow Control

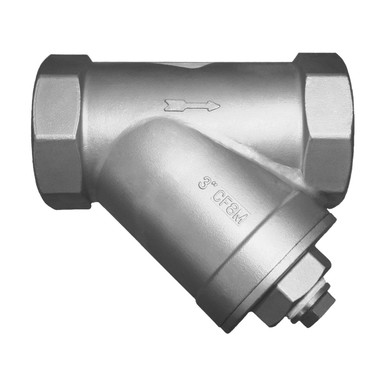

Stainless Steel Threaded Y Strainer - 800 WOG
- SKU:
- YS80T-SS
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
Titan Stainless Steel Threaded Y Strainer - 800 WOG
Titan Flow Control YS80T-SS stainless steel threaded Y strainers provide corrosion-resistant debris removal for compatible high-pressure piping systems while helping protect pumps, meters, valves, spray nozzles, compressors, turbines, and other downstream equipment.
Select the required nominal size from the product options. Confirm the published rating for the selected configuration and service.
Product Highlights
- Stainless Steel - ASTM A351 Grade CF8M.
- Threaded connections.
- 800 WOG design.
- Corrosion-resistant stainless steel construction.
- Large straining capacity with precision-machined screen seats.
- Threaded cap for maintenance access.
- Tapped NPT blow-off connection and PTFE gasket.
Product Specifications
| Manufacturer | Titan Flow Control |
|---|---|
| Model | YS80T-SS |
| Product Type | Y / Wye Strainer |
| Body Material | Stainless Steel - ASTM A351 Grade CF8M |
| End Connection | Threaded |
| ASME Rating | 800 WOG |
| Pressure Rating | 800 psi WOG non-shock at 100°F |
| Gasket | PTFE |
| Stocked Screen / Perforation Material | Type 304 Stainless Steel |
| Available Sizes | 1/4" through 3" |
High-Pressure Stainless Steel Protection
The YS80T-SS combines ASTM A351 Grade CF8M stainless steel construction with threaded end connections for compact, corrosion-resistant pipeline protection. Process flow passes through the internal straining element, which captures debris before it reaches sensitive downstream equipment. Routine inspection and cleaning of the straining element helps maintain flow and limit pressure loss across the strainer.
Straining Element Options
Titan lists Type 304 stainless steel stocked mesh selections of 10, 20, 30, 40, 60, 80, and 100 mesh. Stocked perforation selections include 1/32", 3/64", 1/16", 1/8", 5/32", and 1/4". If your service requires a specific mesh or perforation, contact GetPipe.com before ordering so the required configuration can be confirmed.
Common Applications
Compatible chemical processing, oil and gas, and high-pressure utility piping. Helps protect pumps, meters, valves, spray nozzles, compressors, turbines, and other downstream equipment.
Selection & Ordering Notes
Select the required nominal pipe size before adding the product to your cart.
Confirm required screen or perforation when the application requires a specific level of filtration.
Confirm pressure, temperature, thread requirements, media compatibility, and applicable code requirements before installation.
Review Titan's current specification sheet and IOM manual before installation or maintenance.
Product Questions
What is the Titan YS80T-SS?
The YS80T-SS is a stainless steel threaded Y strainer designed for high-pressure debris removal in compatible piping systems.
What is the pressure rating?
Titan rates the YS80T-SS at 800 psi WOG non-shock at 100°F.
What material is the body?
The body is ASTM A351 Grade CF8M stainless steel.
What sizes are available?
Titan publishes the YS80T-SS from 1/4" through 3".
Can a specific screen or perforation be selected?
Yes. Contact GetPipe.com when a specific filtration opening is required so the appropriate Titan straining element can be confirmed.
Ask Willy
Need help selecting a Titan product? Our GetPipe.com team can help confirm size, connections, service requirements, and product availability.
