Merit Brass

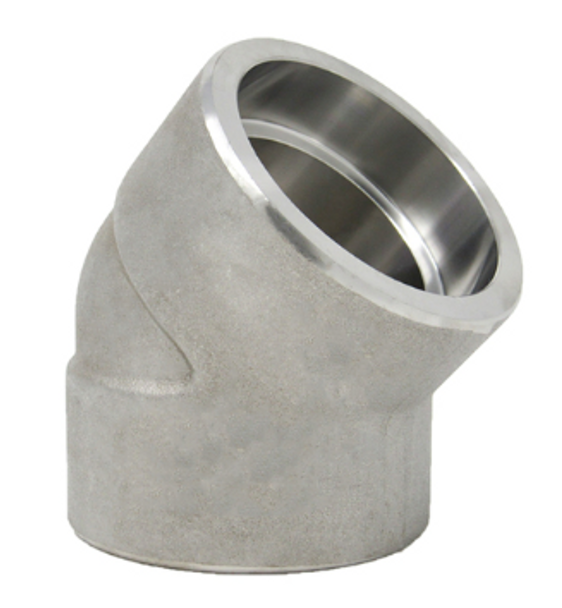

Stainless Steel 3000# 45° Elbow
- SKU:
- SS3M45
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
Stainless Steel 3000# Forged 45° Elbows - Grades 304L & 316L
Stainless Steel 3000# Forged 45° Elbows are designed to provide a compact 45-degree directional change in high-strength stainless steel piping systems. Available in 304L and 316L stainless steel, these forged fittings are suitable for threaded and socket weld applications where corrosion resistance, dimensional consistency, and dependable service are required.
Forged stainless steel material conforms to ASME A182, fitting dimensions conform to ASME B16.11, and NPT threads conform to ASME B1.20.1. The product family is manufactured in an ISO 9001:2008 certified facility.
Product Highlights
- 3000# forged stainless steel 45° elbow
- Available in 304L and 316L stainless steel grades
- Provides a compact 45° directional change
- Forged stainless steel material conforms to ASME A182
- Forged fitting dimensions conform to ASME B16.11
- NPT threads conform to ASME B1.20.1
- Socket weld fittings conform to ASME B16.11
- Forged stainless unions conform to MSS SP-83
- Forged stainless outlets conform to MSS SP-97
- Forged stainless socket weld inserts conform to MSS SP-79
- Manufactured in an ISO 9001:2008 certified facility
45° Directional Change
The 45° elbow design provides a moderate directional change without the sharper turn of a 90° elbow. It is useful where the piping layout requires an offset or a smoother change in direction.
Confirm nominal size, pressure class, connection type, and dimensional compatibility before installation.
3000# Forged Construction
These elbows are manufactured from forged stainless steel conforming to ASME A182. Forged construction provides a durable fitting body intended for demanding threaded and socket weld piping applications.
Fitting dimensions conform to ASME B16.11 for applicable forged stainless steel piping systems.
Technical Specifications
| Product Type | Forged 45° Elbow |
|---|---|
| Pressure Class | 3000# |
| Available Grades | 304L & 316L Stainless Steel |
| Construction | Forged Stainless Steel |
| Elbow Angle | 45° |
| Material Standard | ASME A182 |
| Fitting Dimensional Standard | ASME B16.11 |
| NPT Thread Standard | ASME B1.20.1 |
| Socket Weld Standard | ASME B16.11 |
| Related Union Standard | MSS SP-83 |
| Related Outlet Standard | MSS SP-97 |
| Related Socket Weld Insert Standard | MSS SP-79 |
| Manufacturing Quality | ISO 9001:2008 Certified Facility |
304L vs. 316L Stainless Steel
304L Stainless Steel
- General-purpose stainless steel grade
- Strong corrosion resistance for many industrial applications
- Commonly used in water and process piping
- Low-carbon stainless grade
316L Stainless Steel
- Enhanced corrosion resistance for more demanding environments
- Commonly selected for marine and chloride-exposed applications
- Useful in many chemical and process piping systems
- Low-carbon stainless grade
Threaded & Socket Weld Standards
NPT Threaded Connections
- NPT threads conform to ASME B1.20.1
- Designed for compatible tapered pipe-thread connections
- Confirm thread size before assembly
- Use an appropriate thread-sealing method where required
Socket Weld Connections
- Socket weld fittings conform to ASME B16.11
- Designed for compatible welded piping systems
- Confirm pipe size and socket dimensions before welding
- Use appropriate welding procedures for the material and system
Related Forged Fitting Standards
The broader forged stainless steel fitting family includes components manufactured to additional MSS standards:
- MSS SP-83 - Forged stainless steel unions
- MSS SP-97 - Forged stainless steel outlets
- MSS SP-79 - Forged stainless steel socket weld inserts
These standards apply to related fitting types within the same forged stainless steel product family.
Common Applications
Industrial & Process Piping
- Industrial process piping
- Mechanical equipment connections
- Water treatment systems
- Commercial piping assemblies
- General forged stainless piping
Corrosion-Resistant Service
- Chemical processing
- Marine applications
- Stainless steel process systems
- Corrosive service environments
- Applications requiring 304L or 316L construction
Important Ordering Notes
- Product type: Stainless Steel 3000# Forged 45° Elbow.
- Available in 304L and 316L stainless steel.
- Forged stainless steel material conforms to ASME A182.
- Forged stainless steel fitting dimensions conform to ASME B16.11.
- NPT threads conform to ASME B1.20.1.
- Socket weld fittings conform to ASME B16.11.
- Related forged stainless unions conform to MSS SP-83.
- Related forged stainless outlets conform to MSS SP-97.
- Related forged stainless socket weld inserts conform to MSS SP-79.
- Manufactured in an ISO 9001:2008 certified facility.
- Confirm nominal pipe size, connection type, pressure requirements, and material grade before ordering.
- Refer to all Product Documents for dimensional and pipe-size information before installation.
Product Documents
Frequently Asked Questions
What pressure class are these elbows?
These are 3000# forged stainless steel 45° elbows.
What stainless steel grades are available?
These elbows are available in 304L and 316L stainless steel.
What material standard applies?
The forged stainless steel material conforms to ASME A182.
What dimensional standard applies to the forged fittings?
The forged stainless steel fitting dimensions conform to ASME B16.11.
What standard applies to NPT threads?
NPT threads conform to ASME B1.20.1.
What standard applies to socket weld fittings?
Socket weld fittings conform to ASME B16.11.
Why use a 45° elbow instead of a 90° elbow?
A 45° elbow provides a more gradual directional change and is useful where the piping layout requires an offset rather than a full right-angle turn.
What is the difference between 304L and 316L?
Both are corrosion-resistant stainless steel grades. 316L is generally selected for more demanding corrosive environments, including many marine, chloride-exposed, and chemical-service applications.
Where can I find socket weld fitting dimensions?
Use the Stainless Steel 3M Socket Weld Fitting Dimensions PDF in the Product Documents section above.
Where can I find threaded fitting dimensions?
Use the Stainless Steel 3M Threaded Fitting Dimensions PDF in the Product Documents section above.
How can I confirm pipe outside diameter and wall thickness?
Use the Pipe Chart: Common Diameters & Wall Thicknesses PDF in the Product Documents section above.
Ask Willy: Product Selection & Support
Our GetPipe.com team can help review sizing, material, connection requirements, and product information before you order.
