Hilti
SM 60-22 Cordless Miter Saw
- SKU:
- 2390415
- Availability:
- Usually Ships Same Day
- Weight:
- 56.40 LBS
Description

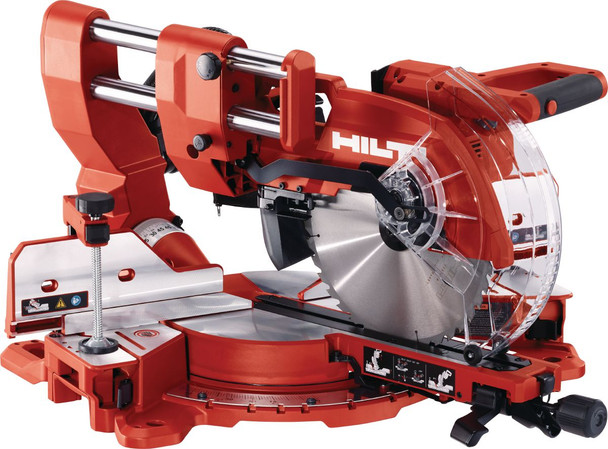

Hilti SM 60-22 Cordless 12" Dual-Bevel Sliding Compound Miter Saw
The Hilti SM 60-22 Cordless Miter Saw is a professional-grade 12" dual-bevel sliding compound miter saw powered by the Hilti Nuron cordless battery platform.
Engineered for precision cutting in wood, plastic, and trim applications, the SM 60-22 combines a space-saving forward-sliding rail system with a substantial cross-cut capacity of up to 4" x 13-3/4" (100 x 355 mm). Six variable blade speed settings, dual-bevel adjustment, integrated LED shadow-line lighting, and a fast electronic blade brake provide the versatility and control needed for professional framing, carpentry, and finish work.
Product Highlights
- Professional 12" cordless sliding compound miter saw
- Powered by the Hilti Nuron cordless battery platform
- Dual-bevel design for versatile compound cutting
- Forward-sliding rail system reduces required rear clearance
- Maximum cross-cut capacity: 4" x 13-3/4" (100 x 355 mm)
- Dual-bevel adjustment up to 48° left and right
- Miter capacity up to 60°
- Six variable blade speed settings
- Speed range from 2,000 to 4,300 RPM
- Maximum no-load speed: 4,300 RPM
- Integrated LED shadow line for improved cut-line visibility
- Fast electronic blade brake
- Designed for cutting wood and many plastic materials
- Ideal for framing, trim, molding, cabinetry, and finish work
Technical Specifications
| Product Type | Cordless Dual-Bevel Sliding Compound Miter Saw |
|---|---|
| Manufacturer | Hilti |
| Model | SM 60-22 |
| Battery Platform | Hilti Nuron |
| Blade Diameter | 12" |
| Sliding System | Forward-Sliding Rail |
| Maximum Cross-Cut Capacity | 4" x 13-3/4" (100 x 355 mm) |
| Maximum Bevel Angle | 48° Left and Right |
| Miter Capacity | Up to 60° |
| Speed Settings | 6 |
| Blade Speed Range | 2,000–4,300 RPM |
| Maximum No-Load Speed | 4,300 RPM |
| Cut-Line System | Integrated LED Shadow Line |
| Blade Brake | Electronic Blade Brake |
| Primary Cutting Materials | Wood and Many Plastic Materials |
12" Professional Cutting System
The SM 60-22 uses a 12" blade to provide the cutting capacity needed for demanding professional framing, trim, cabinetry, and finish applications.
Its large blade configuration combines with the sliding rail system to support repeated precision crosscuts through a wide range of wood components and construction materials.
Large Cross-Cut Capacity
The Hilti SM 60-22 provides a maximum supplied cross-cut capacity of 4" x 13-3/4" (100 x 355 mm).
This substantial cutting capacity makes the saw suitable for larger lumber and structural members while supporting the precision required for trim and finish work.
Space-Saving Forward-Sliding Design
The SM 60-22 incorporates a forward-sliding rail system designed to reduce the amount of rear clearance required during operation.
By minimizing the space required behind the saw, the forward-sliding configuration helps maximize available workspace and provides greater flexibility when setting up the saw in tighter jobsite environments.
Dual-Bevel Cutting
48° Left Bevel
- Bevel adjustment up to 48°
- Supports compound cutting
- Designed for precision angle work
48° Right Bevel
- Bevel adjustment up to 48°
- Dual-bevel configuration
- Reduces the need to reposition the workpiece
Up to 60° Miter Capacity
The supplied miter capacity of up to 60° provides the flexibility needed for a wide variety of angled cuts.
Combined with the dual-bevel system, the miter adjustment supports professional compound cutting for framing, molding, cabinetry, trim, and other precision woodworking applications.
Six Variable Speed Settings
The SM 60-22 provides six variable blade speed settings ranging from 2,000 to 4,300 RPM.
Variable speed control allows the blade speed to be matched more closely to the material and cutting application, expanding the saw's versatility beyond standard wood cutting.
Integrated LED Shadow Line
An integrated LED shadow-line system improves visibility of the cutting line and supports accurate blade positioning.
The lighting system is particularly useful when working in lower-light jobsite conditions where maintaining clear visibility of the intended cut can be more difficult.
Fast Electronic Blade Brake
The SM 60-22 incorporates a fast electronic blade brake designed to stop the blade quickly after cutting.
The braking system supports safer operation while helping improve productivity during repetitive professional cutting applications.
Hilti Nuron Cordless Platform
The SM 60-22 operates on the Hilti Nuron cordless battery platform, providing professional miter saw cutting performance without requiring a corded power source.
The cordless configuration provides greater flexibility when moving between work areas and setting up the saw throughout the jobsite.
Why Choose the Hilti SM 60-22?
Precision Cutting
- 12" blade diameter
- 4" x 13-3/4" maximum cross-cut capacity
- 48° dual-bevel adjustment
- Up to 60° miter capacity
- Integrated LED shadow line
- Six variable speed settings
Professional Jobsite Design
- Hilti Nuron cordless platform
- Forward-sliding rail system
- Reduced rear clearance requirement
- 2,000–4,300 RPM speed range
- Fast electronic blade brake
- Designed for professional construction and woodworking
Typical Applications
Framing & Construction
- Commercial wood framing
- Residential wood framing
- Repeated precision crosscuts
- Cutting lumber and structural members
- Construction material preparation
Trim & Finish Work
- Trim carpentry
- Molding
- Cabinetry
- Finish carpentry
- Compound angle cutting
Additional Cutting Applications
In addition to professional wood cutting, the supplied product information identifies the SM 60-22 for cutting many plastic materials, including construction plastics and PVC materials.
The supplied application information also identifies occasional cutting of aluminum profiles and conduit where appropriate. Select the appropriate blade, speed setting, and cutting configuration for the intended material and application.
Setup & Use
Place the SM 60-22 on a stable work surface or compatible support system before operation.
Install an appropriate 12" blade for the intended cutting material and application according to applicable Hilti instructions.
Adjust the miter angle, bevel angle, and sliding configuration as required for the intended cut.
Select the appropriate blade speed from the six available settings based on the material and application.
Use the integrated LED shadow line to assist with positioning the workpiece and aligning the intended cutting path.
Install a compatible Hilti Nuron battery before cordless operation.
Always follow applicable Hilti operating instructions and jobsite safety requirements when setting up and operating the miter saw.
Our specialists can help with the Hilti SM 60-22 Cordless Miter Saw, Nuron batteries and chargers, compatible 12" blades, and selecting the right cutting setup for your framing, trim, or finish application.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What size blade does the Hilti SM 60-22 use?
The supplied blade diameter is 12".
What is the maximum cross-cut capacity?
The supplied maximum cross-cut capacity is 4" x 13-3/4" (100 x 355 mm).
How far can the SM 60-22 bevel?
The supplied dual-bevel adjustment is up to 48° to both the left and right.
What is the miter capacity?
The supplied miter capacity is up to 60°.
Does the SM 60-22 have variable speed?
Yes. The saw provides six variable blade speed settings ranging from 2,000 to 4,300 RPM.
What is the maximum no-load speed?
The supplied maximum no-load speed is 4,300 RPM.
What battery platform does the SM 60-22 use?
The SM 60-22 operates on the Hilti Nuron cordless battery platform.
What is the benefit of the forward-sliding rail system?
The supplied product information states that the forward-sliding rail design reduces required rear clearance and helps maximize available workspace.
Does the SM 60-22 have a cut-line indicator?
Yes. An integrated LED shadow line is provided to improve cut-line visibility and support accurate positioning.
Does the saw have a blade brake?
Yes. The supplied product information identifies a fast electronic blade brake.
What materials can the SM 60-22 cut?
The supplied product information identifies wood and many plastic materials as intended cutting materials. It also identifies occasional cutting of aluminum profiles and conduit where appropriate.
What applications is the SM 60-22 suited for?
Typical supplied applications include commercial and residential framing, trim carpentry, molding, cabinetry, finish work, repeated precision crosscuts, and cutting construction plastics and PVC materials.
Important Ordering & Use Notes
- This listing covers the Hilti SM 60-22 Cordless 12" Dual-Bevel Sliding Compound Miter Saw.
- The saw operates on the Hilti Nuron cordless battery platform.
- The supplied blade diameter is 12".
- The supplied maximum cross-cut capacity is 4" x 13-3/4" (100 x 355 mm).
- The supplied dual-bevel range is up to 48° left and right.
- The supplied miter capacity is up to 60°.
- The saw provides six variable speed settings ranging from 2,000 to 4,300 RPM.
- The supplied maximum no-load speed is 4,300 RPM.
- The saw incorporates a forward-sliding rail system, integrated LED shadow line, and fast electronic blade brake.
- The supplied primary cutting materials are wood and many plastic materials.
- Occasional cutting of aluminum profiles and conduit is identified where appropriate; use the proper blade and setup for the intended material.
- Specific package contents, battery model, battery quantity, charger, tool weight, dimensions, blade arbor size, dust extraction connection, individual Hilti part number, and runtime were not supplied and are not stated here.
- Follow applicable Hilti instructions for blade selection, material compatibility, battery selection, speed adjustment, miter and bevel setup, operation, and safety.
