Hilti
SC 30WR-22 Cordless Circular Saw
- SKU:
- 2422186
- Availability:
- Usually Ships Same Day
- Weight:
- 8.30 LBS
Description

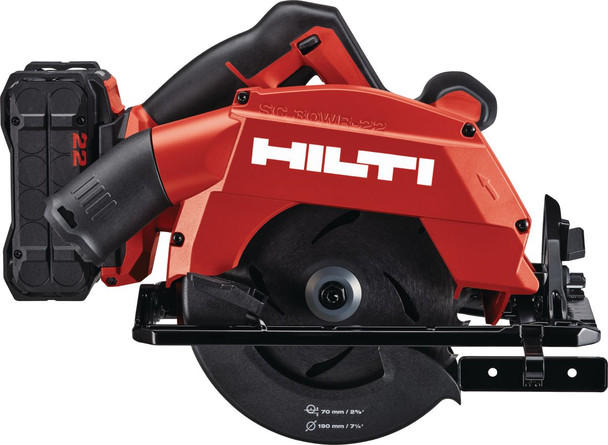

Hilti SC 30WR-22 Cordless Circular Saw
The Hilti SC 30WR-22 Cordless Circular Saw is a Nuron-powered 7-1/4" circular saw engineered for fast, accurate cutting in wood and wood-based materials.
Designed for professional framing, sheathing, trimming, and general carpentry applications, the SC 30WR-22 combines a high-performance brushless motor with a maximum cutting depth of 2.76". Guide rail compatibility, an integrated dust channel, quick spindle lock, and up to a 50° bevel angle provide the cutting versatility and jobsite productivity needed for demanding professional applications.
Product Highlights
- Professional 7-1/4" cordless circular saw
- Powered by the Hilti Nuron cordless battery platform
- High-performance brushless motor
- Maximum cutting depth: 2.76"
- Maximum cutting depth at 45°: 2"
- Maximum bevel angle: 50°
- Guide rail compatible for straight, accurate cutting
- Integrated dust channel captures over 80% more dust
- Quick spindle lock for convenient blade changes
- Designed for wood and wood-based materials
- Suitable for framing lumber, plywood, OSB, MDF, hardwoods, trim, battens, and pressure-treated lumber
- Tool body weight: 8.3 lbs
- Battery and charger sold separately unless purchasing a kit configuration
Technical Specifications
| Product Type | Cordless Circular Saw |
|---|---|
| Manufacturer | Hilti |
| Model | SC 30WR-22 |
| Battery Platform | Hilti Nuron |
| Motor Type | Brushless |
| Blade Diameter | 7-1/4" |
| Maximum Cutting Depth | 2.76" |
| Maximum Cutting Depth at 45° | 2" |
| Maximum Bevel Angle | 50° |
| Guide Rail Compatibility | Yes |
| Dust Management | Integrated Dust Channel |
| Blade Change | Quick Spindle Lock |
| Tool Body Weight | 8.3 lbs |
| Primary Materials | Wood and Wood-Based Materials |
7-1/4" Cutting Capacity
The SC 30WR-22 uses a 7-1/4" circular saw blade and provides a maximum supplied cutting depth of 2.76".
This full-size cutting capacity makes the saw suitable for professional framing, sheathing, trimming, and general carpentry applications involving common wood and wood-based construction materials.
Bevel Cutting Capability
45° Cutting Depth
- Maximum cutting depth: 2"
- Designed for angled wood cuts
- Supports professional framing and carpentry work
Maximum Bevel Angle
- Maximum adjustment: 50°
- Expands angled cutting capability
- Supports a wider range of cutting applications
High-Performance Brushless Motor
The SC 30WR-22 uses a brushless motor designed to deliver faster cutting speeds and longer battery runtime.
The brushless drive system combines with the Hilti Nuron cordless platform to provide the performance and mobility needed for demanding professional cutting applications.
Guide Rail Compatible
The SC 30WR-22 is guide rail compatible, allowing the saw to be used for straight, accurate cutting where additional guidance is required.
Guide rail compatibility is especially useful when making longer controlled cuts through plywood, OSB, MDF, sheet goods, and other wood-based materials.
Integrated Dust Management
An integrated dust channel is designed to capture over 80% more dust for cleaner cutting operation.
The built-in dust management design helps reduce loose cutting debris around the work area while supporting improved jobsite cleanliness during professional wood cutting applications.
Quick Spindle Lock
A quick spindle lock is incorporated into the SC 30WR-22 to make circular saw blade changes faster and more convenient.
This feature helps simplify blade replacement when changing blades or configuring the saw for different wood-cutting applications.
Hilti Nuron Cordless Platform
The SC 30WR-22 operates on the Hilti Nuron cordless battery platform, providing cordless flexibility for professional carpentry and construction work.
The Nuron platform combines with the brushless motor to support increased power, productivity, and battery runtime during demanding cutting applications.
Battery and charger are sold separately unless purchasing a kit configuration.
Designed for Professional Wood Cutting
The SC 30WR-22 is optimized for cutting a broad range of wood and wood-based construction materials, including:
- Framing lumber
- Plywood
- OSB
- MDF
- Hardwoods
- Trim
- Battens
- Pressure-treated lumber
What's Included
- 1x Hilti SC 30WR-22 Cordless Circular Saw
- 1x 7-1/4" SPX Circular Saw Blade
- 1x Small Parallel Guide
- 1x Operating Instructions
Battery and charger sold separately unless purchasing a kit configuration.
Why Choose the Hilti SC 30WR-22?
Professional Cutting Performance
- 7-1/4" blade diameter
- 2.76" maximum cutting depth
- 2" cutting depth at 45°
- Maximum 50° bevel angle
- High-performance brushless motor
- Guide rail compatibility
Jobsite Productivity
- Hilti Nuron cordless platform
- 8.3 lb tool body
- Integrated dust channel
- Quick spindle lock
- Designed for professional wood cutting
- Suitable for framing, sheet goods, and finish carpentry
Typical Applications
Framing & Construction
- Framing lumber cutting
- Sheathing
- Cutting plywood and OSB
- Cutting battens
- Pressure-treated lumber cutting
Carpentry & Finish Work
- Trimming
- General carpentry
- MDF cutting
- Hardwood cutting
- Trim cutting
- Straight cuts using compatible guide rails
Setup & Use
Select an appropriate 7-1/4" circular saw blade for the wood or wood-based material being cut.
Install and secure the blade according to the applicable Hilti operating instructions. The quick spindle lock is provided to simplify blade changes.
Adjust the cutting depth and bevel angle as required for the intended application.
When additional guidance is required, use the saw with a compatible guide rail for straight, controlled cutting.
Install a compatible Hilti Nuron battery before cordless operation.
Use the integrated dust channel during cutting as applicable to help manage cutting dust and debris.
Always follow applicable Hilti operating instructions and jobsite safety requirements when setting up and operating the circular saw.
Our specialists can help with the Hilti SC 30WR-22 Cordless Circular Saw, Nuron batteries and chargers, compatible 7-1/4" saw blades, guide rails, and selecting the right setup for your framing or carpentry application.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What size blade does the Hilti SC 30WR-22 use?
The supplied blade diameter is 7-1/4". A 7-1/4" SPX circular saw blade is included in the supplied package contents.
What is the maximum cutting depth?
The supplied maximum cutting depth is 2.76".
What is the cutting depth at a 45-degree bevel?
The supplied maximum cutting depth at 45° is 2".
What is the maximum bevel angle?
The supplied maximum bevel angle is 50°.
Does the SC 30WR-22 have a brushless motor?
Yes. The supplied product information identifies a high-performance brushless motor designed for faster cutting speeds and longer battery runtime.
Is the SC 30WR-22 guide rail compatible?
Yes. The saw is identified as guide rail compatible for straight, accurate cutting.
Does the SC 30WR-22 have dust management?
Yes. The supplied product information identifies an integrated dust channel designed to capture over 80% more dust for cleaner operation.
What materials can the SC 30WR-22 cut?
The saw is designed for wood and wood-based materials, including framing lumber, plywood, OSB, MDF, hardwoods, trim, battens, and pressure-treated lumber.
How much does the SC 30WR-22 weigh?
The supplied tool body weight is 8.3 lbs.
What battery platform does the SC 30WR-22 use?
The SC 30WR-22 operates on the Hilti Nuron cordless battery platform.
Are a battery and charger included?
The supplied product information states that the battery and charger are sold separately unless purchasing a kit configuration.
What comes with the SC 30WR-22?
The supplied package contents include the SC 30WR-22 Cordless Circular Saw, 7-1/4" SPX circular saw blade, small parallel guide, and operating instructions.
Important Ordering & Use Notes
- This listing covers the Hilti SC 30WR-22 Cordless Circular Saw.
- The saw operates on the Hilti Nuron cordless battery platform.
- The supplied blade diameter is 7-1/4".
- The supplied maximum cutting depth is 2.76".
- The supplied maximum cutting depth at 45° is 2".
- The supplied maximum bevel angle is 50°.
- The supplied tool body weight is 8.3 lbs.
- The saw incorporates a brushless motor, integrated dust channel, and quick spindle lock.
- The saw is identified as guide rail compatible.
- Supplied intended materials include framing lumber, plywood, OSB, MDF, hardwoods, trim, battens, and pressure-treated lumber.
- Included components are the SC 30WR-22 saw, 7-1/4" SPX circular saw blade, small parallel guide, and operating instructions.
- Battery and charger are sold separately unless purchasing a kit configuration.
- Specific battery model, recommended battery capacity, no-load speed, blade arbor size, guide rail model, tool dimensions, sound level, vibration rating, runtime, and individual Hilti part number were not supplied and are not stated here.
- Follow applicable Hilti instructions for blade selection, battery selection, cutting depth and bevel adjustment, guide rail use, operation, maintenance, and safety.
