Lesso America

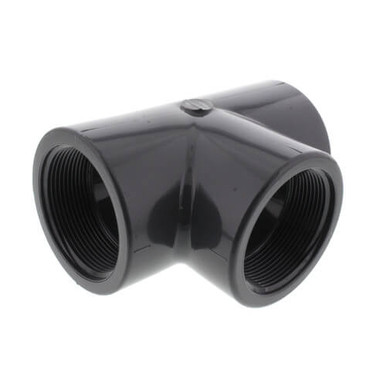

Schedule 80 PVC Tee (FIPT x FIPT x FIPT)
- SKU:
- 805
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
Schedule 80 PVC Tee (FIPT x FIPT x FIPT)
Schedule 80 PVC Female Threaded Tees provide a durable 90-degree branch connection with female threaded connections on all three openings.
Featuring Female Iron Pipe Thread (FIPT) connections throughout, this tee is designed for compatible Schedule 80 PVC pressure systems where removable threaded connections are preferred. Heavy-wall PVC construction provides excellent corrosion and chemical resistance while supporting dependable service in potable water, industrial, commercial, irrigation, and other compatible pressure piping applications.
Product Highlights
- Schedule 80 PVC threaded tee
- FIPT x FIPT x FIPT connection configuration
- Creates a 90-degree branch connection
- Female threaded connections on all three openings
- Accepts compatible male-threaded pipe, nipples, fittings, valves, or equipment connections
- Heavy-wall Schedule 80 PVC construction
- Excellent corrosion and chemical resistance
- Suitable for compatible pressure piping applications
- Certified to NSF/ANSI 61 for drinking water system components
- Certified to NSF/ANSI 14 for plastic piping system components
- Manufactured from PVC compounds meeting ASTM D1784
- Manufactured in accordance with ASTM F1970
- Complies with CSA B137.3
Technical Specifications
| Product Type | Schedule 80 PVC Female Threaded Tee |
|---|---|
| Material | PVC |
| Schedule | Schedule 80 |
| Connection Type | Female Iron Pipe Thread (FIPT) x Female Iron Pipe Thread (FIPT) x Female Iron Pipe Thread (FIPT) |
| Joint Method | Threaded |
| Branch Angle | 90° |
| System Type | Schedule 80 PVC Pressure Piping |
| Primary Function | 90° Threaded Branch Connection |
| Referenced Standards | ASTM D1784, ASTM F1970, CSA B137.3, NSF/ANSI 14, NSF/ANSI 61 |
| Typical Applications | Potable Water, Industrial Process Piping, Commercial Systems, Irrigation, Valves, Instrumentation, and Equipment Connections |
Connection Configuration
Run Inlet FIPT
The first female threaded opening accepts a compatible male-threaded pipe, nipple, fitting, valve, or equipment connection.
Branch FIPT
The center female threaded opening creates a 90-degree branch connection for a compatible male-threaded component.
Run Outlet FIPT
The opposite female threaded opening continues the main piping run using a compatible male-threaded connection.
Construction Details
The tee is manufactured from high-quality Schedule 80 PVC, providing increased wall thickness and dependable durability for compatible pressure piping applications.
Precision-molded female threads on all three openings provide mechanical connections to compatible male-threaded piping components without requiring solvent cement at the tee itself.
The all-threaded configuration makes this fitting useful where branch piping, valves, instruments, or equipment may need to be connected or serviced using threaded components.
Why Choose an All-FIPT Schedule 80 Tee?
Fully Threaded Configuration
- Female threads on all three connections
- Creates a 90° branch connection
- Connects directly to compatible male-threaded components
- No solvent-weld joint required at the tee
- Useful for serviceable piping layouts
Schedule 80 PVC Benefits
- Heavy-wall construction
- Corrosion-resistant material
- Resistant to many common chemicals
- Low-maintenance design
- Suitable for demanding compatible pressure applications
Referenced Standards
- NSF/ANSI 61: Drinking water system components - health effects
- NSF/ANSI 14: Plastic piping system components and related materials
- ASTM D1784: Rigid PVC and CPVC compounds
- ASTM F1970: Special engineered fittings, appurtenances, or valves for PVC or CPVC systems
- CSA B137.3: Rigid PVC pipe and fittings for pressure applications
Threaded Installation
Verify all three nominal thread sizes before installation and confirm compatibility with the intended male-threaded components.
Use an appropriate thread-sealing method compatible with PVC and the intended application. Start each threaded connection by hand to help prevent cross-threading.
Tighten only as required to obtain a secure, leak-resistant connection. Excessive tightening can place unnecessary stress on PVC female threads and may damage the fitting body.
Confirm branch orientation, system alignment, pressure requirements, temperature requirements, and chemical compatibility before placing the piping system into service.
Our piping specialists can help review your thread sizes, mating components, pressure requirements, chemical compatibility, and installation needs before you order.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is a Schedule 80 PVC FIPT x FIPT x FIPT tee used for?
It is used to create a 90-degree branch connection in a compatible pressure piping system using male-threaded components on all three connections.
What does FIPT mean?
FIPT means Female Iron Pipe Thread. Each opening contains internal threads designed to accept a compatible male pipe thread.
Does this fitting require solvent cement?
No. This version uses threaded connections on all three openings rather than solvent-weld socket connections.
What can connect to this tee?
Compatible male-threaded pipe, nipples, fittings, valves, gauges, instruments, or equipment connections may be used where appropriate for the system.
Should Schedule 80 PVC female threads be overtightened?
No. Excessive tightening can stress or damage PVC threads and the fitting body. Connections should be started by hand and tightened only as required.
Can this fitting be used for drinking water systems?
The supplied product information identifies NSF/ANSI 61 certification for drinking water system components.
What does NSF/ANSI 14 cover?
NSF/ANSI 14 applies to plastic piping system components and related materials.
What ASTM standards are referenced?
The supplied information references ASTM D1784 and ASTM F1970.
What CSA standard is referenced?
The supplied information references CSA B137.3 for rigid PVC pipe and fittings used in pressure applications.
What should I verify before ordering?
Confirm all three nominal thread sizes, mating male-threaded components, branch orientation, pressure requirements, temperature requirements, and chemical compatibility.
Important Ordering & Installation Notes
- This listing is for a Schedule 80 PVC Tee with FIPT x FIPT x FIPT connections.
- Verify all three nominal thread sizes before ordering.
- All three openings are female threaded connections.
- The tee creates a 90-degree branch connection.
- Each FIPT opening accepts a compatible male-threaded component.
- Use a thread-sealing method compatible with PVC and the intended application.
- Start all threaded connections by hand to help prevent cross-threading.
- Do not force mismatched thread sizes or thread types.
- Avoid excessive tightening of PVC female threads.
- Inspect all threaded surfaces before installation.
- Confirm branch orientation before final tightening.
- Avoid placing excessive piping stress or misalignment on the tee.
- Verify completed connections for proper alignment and sealing.
- Verify operating pressure and temperature requirements before installation.
- Verify chemical compatibility with the intended fluid or process media.
- Consult manufacturer documentation for complete dimensions and pressure ratings.
- Follow applicable plumbing codes and manufacturer installation recommendations.
