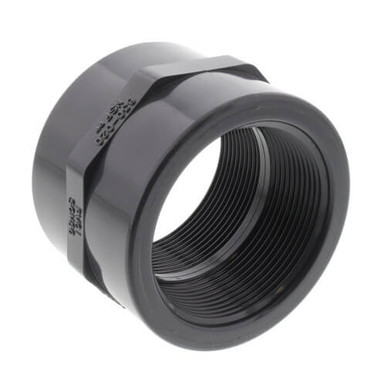

Schedule 80 PVC Coupling (FIPT x FIPT)

Schedule 80 PVC Female Threaded Couplings provide a durable straight-line connection between compatible male-threaded components in pressure piping systems.

Featuring Female Iron Pipe Thread (FIPT) connections on both ends, this coupling allows two male-threaded pipes, nipples, fittings, valves, or equipment connections to be joined in-line without solvent welding at the coupling itself. Heavy-wall Schedule 80 PVC construction provides excellent corrosion and chemical resistance for potable water, industrial, commercial, irrigation, and other compatible pressure piping applications.

Product Highlights

Schedule 80 PVC female threaded coupling
FIPT x FIPT connection configuration
Joins two compatible male-threaded components
Straight in-line threaded connection
No solvent-weld joint required at the coupling
Heavy-wall Schedule 80 PVC construction
Excellent corrosion and chemical resistance
Suitable for compatible pressure piping applications
Certified to NSF/ANSI 61 for drinking water system components
Certified to NSF/ANSI 14 for plastic piping system components
Manufactured from PVC compounds meeting ASTM D1784
Manufactured in accordance with ASTM F1970
Complies with CSA B137.3

Technical Specifications

Product Type	Schedule 80 PVC Female Threaded Coupling
Material	PVC
Schedule	Schedule 80
Connection Type	Female Iron Pipe Thread (FIPT) x Female Iron Pipe Thread (FIPT)
Joint Method	Threaded
Configuration	Straight In-Line Coupling
System Type	Schedule 80 PVC Pressure Piping
Primary Function	Join Two Male-Threaded Components
Referenced Standards	ASTM D1784, ASTM F1970, CSA B137.3, NSF/ANSI 14, NSF/ANSI 61
Typical Applications	Potable Water, Industrial Process Piping, Commercial Systems, Irrigation, Valves, Instrumentation, and Equipment Connections

Connection Configuration

First FIPT Connection

The first female threaded opening accepts a compatible male-threaded pipe, nipple, fitting, valve, or equipment connection.

Second FIPT Connection

The opposite female threaded opening accepts another compatible male-threaded component to complete the straight in-line connection.

Construction Details

The coupling is manufactured from high-quality Schedule 80 PVC, providing increased wall thickness and dependable durability for compatible pressure piping applications.

Precision-molded female threads on both ends provide mechanical connections to compatible male-threaded components without requiring solvent cement at the coupling itself.

The straight-through design provides a compact way to join threaded piping components while maintaining the corrosion resistance and lightweight handling advantages of PVC.

Why Choose a FIPT x FIPT Schedule 80 Coupling?

Fully Threaded In-Line Connection

Joins two male-threaded components
Female threads on both ends
Maintains a straight piping run
No solvent-weld joint required at the coupling
Useful for serviceable threaded piping layouts

Schedule 80 PVC Benefits

Heavy-wall construction
Corrosion-resistant material
Resistant to many common chemicals
Lightweight and easy to handle
Low-maintenance design

Referenced Standards

NSF/ANSI 61: Drinking water system components - health effects
NSF/ANSI 14: Plastic piping system components and related materials
ASTM D1784: Rigid PVC and CPVC compounds
ASTM F1970: Special engineered fittings, appurtenances, or valves for PVC or CPVC systems
CSA B137.3: Rigid PVC pipe and fittings for pressure applications

Threaded Installation

Verify both nominal female thread sizes before installation and confirm compatibility with the intended male-threaded components.

Use an appropriate thread-sealing method compatible with PVC and the intended application. Start each threaded connection by hand to help prevent cross-threading.

Tighten only as required to obtain a secure, leak-resistant connection. Excessive tightening can place unnecessary stress on PVC female threads and may damage the fitting body.

Confirm proper alignment, operating pressure, temperature requirements, and chemical compatibility before placing the piping system into service.

Ask Willy: Need Help Selecting a Schedule 80 PVC FIPT Coupling?

Our piping specialists can help review your thread sizes, mating components, pressure requirements, chemical compatibility, and installation needs before you order.

Email the GetPipe.com Team Visit Quick Support

Frequently Asked Questions

What is a Schedule 80 PVC FIPT x FIPT coupling used for?

It is used to join two compatible male-threaded components in a straight Schedule 80 PVC pressure piping connection.

What does FIPT mean?

FIPT means Female Iron Pipe Thread. Both openings contain internal threads designed to accept compatible male pipe threads.

Does this fitting require solvent cement?

No. This version uses threaded connections on both ends rather than solvent-weld socket connections.

What can connect to this coupling?

Compatible male-threaded pipe, nipples, fittings, valves, instruments, or equipment connections may be used where appropriate for the system.

Should Schedule 80 PVC female threads be overtightened?

No. Excessive tightening can stress or damage the PVC threads or fitting body. Connections should be started by hand and tightened only as required.

Can this fitting be used for drinking water systems?

The supplied product information identifies NSF/ANSI 61 compliance for drinking water system components.

What does NSF/ANSI 14 cover?

NSF/ANSI 14 applies to plastic piping system components and related materials.

What ASTM standards are referenced?

The supplied product information references ASTM D1784 and ASTM F1970.

What CSA standard is referenced?

The supplied product information references CSA B137.3 for rigid PVC pipe and fittings used in pressure applications.

What should I verify before ordering?

Confirm both nominal female thread sizes, mating male-threaded components, pressure requirements, temperature requirements, chemical compatibility, and intended application.

Important Ordering & Installation Notes

This listing is for a Schedule 80 PVC Coupling with FIPT x FIPT connections.
Verify both nominal thread sizes before ordering.
Both openings are female threaded connections.
The fitting creates a straight in-line connection.
Each FIPT opening accepts a compatible male-threaded component.
Use a thread-sealing method compatible with PVC and the intended application.
Start all threaded connections by hand to help prevent cross-threading.
Do not force mismatched thread sizes or thread types.
Avoid excessive tightening of PVC female threads.
Inspect threaded surfaces before installation.
Maintain proper system alignment during installation.
Avoid placing excessive piping stress on the coupling.
Verify completed connections for proper alignment and sealing.
Verify operating pressure and temperature requirements before installation.
Verify chemical compatibility with the intended fluid or process media.
Consult manufacturer documentation for complete dimensions and pressure ratings.
Follow applicable plumbing codes and manufacturer installation recommendations.
