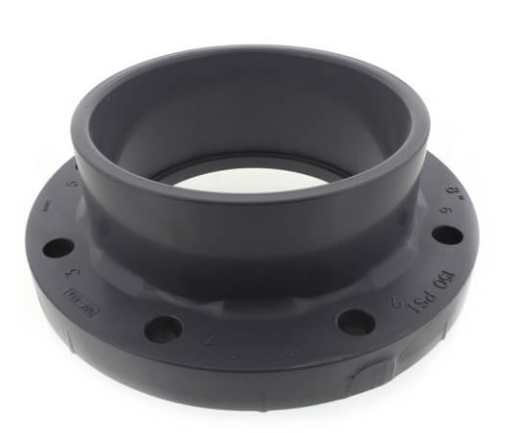

Schedule 80 CPVC Van Stone Flange (SOC) CL150
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
Schedule 80 CPVC Van Stone Flange (SOC) CL150
Schedule 80 CPVC Van Stone Flange (SOC) CL150 provides a detachable Class 150 flange transition for compatible Schedule 80 CPVC piping. The socket connection joins to compatible CPVC pipe while the Van Stone configuration allows the backing ring to rotate for bolt-hole alignment.
The Schedule 80 CPVC Van Stone socket flange combines a solvent-cement socket interface with a Class 150 bolted flange connection. Selection should account for nominal size, socket compatibility, mating flange requirements, gasket selection, bolt pattern, system conditions, and proper CPVC installation procedures.
Product Highlights
- CPVC construction
- Schedule 80 design
- Van Stone flange configuration
- Socket connection
- Class 150 flange interface
- Rotating backing-ring arrangement
- Provides a detachable bolted connection
- Designed for compatible solvent-cement CPVC piping
Technical Specifications
| Product Type | Van Stone Flange |
|---|---|
| Material | CPVC |
| Schedule | Schedule 80 |
| Configuration | Van Stone Socket Flange |
| Connection | Socket (SOC) |
| Socket Interface | Compatible CPVC Pipe |
| Flange Class | Class 150 |
| Flange Interface | Compatible Class 150 Flange |
| Joining Method | CPVC Solvent-Cement Connection x Bolted Flange Joint |
| Primary Function | Transition Compatible Schedule 80 CPVC Pipe to a Class 150 Flanged Connection |
Van Stone Flange Design
The Van Stone flange design uses a separate backing ring around the flange hub. The ring can rotate independently, allowing bolt-hole alignment without rotating the connected CPVC piping.
The nominal size and mating flange requirements should be verified before ordering. Proper gasket selection, bolt pattern, and flange-face alignment should also be established before assembly.
Socket Connection
The socket connection accepts appropriately sized compatible CPVC pipe. This interface provides the solvent-cement joint between the piping run and the Van Stone flange hub.
The pipe end and fitting socket should be clean and properly prepared before joining. Compatible CPVC primer, solvent cement, insertion procedures, and required cure times should be followed.
Class 150 Flange Connection
The Class 150 flange interface provides a detachable bolted connection to compatible flanged piping or equipment. The rotating backing ring can simplify alignment between the flange bolt holes.
Bolts should be tightened evenly using an appropriate cross-pattern sequence. The gasket, mating flange, hub, and backing ring should remain properly aligned throughout assembly.
Schedule 80 CPVC Application
A Schedule 80 CPVC Van Stone Socket Flange provides a serviceable Class 150 flange transition from compatible CPVC pipe. The socket side remains solvent-cemented while the bolted flange joint can be disconnected for maintenance or system changes.
System temperature, pressure, fluid compatibility, gasket requirements, mating flange compatibility, joining procedures, and applicable installation standards should be reviewed for the intended application. Proper piping support should be maintained around the flange connection.
Installation & Selection Considerations
- Confirm the nominal size.
- Verify the socket configuration.
- Confirm Class 150 compatibility.
- Check gasket and bolt requirements.
- Maintain proper flange alignment.
Our piping specialists can help review nominal size, socket compatibility, Class 150 flange requirements, gasket and bolt requirements, and installation considerations before you order.
Frequently Asked Questions
What is a Schedule 80 CPVC Van Stone Socket Flange used for?
It provides a detachable Class 150 flange transition from compatible Schedule 80 CPVC pipe.
What does SOC mean?
SOC identifies a socket connection designed to accept compatible CPVC pipe for solvent-cement joining.
What does CL150 mean?
CL150 identifies the flange as a Class 150 flange configuration for use with compatible mating flanges.
Why does the Van Stone flange use a rotating ring?
The backing ring can rotate around the flange hub to help align bolt holes during installation.
How is the socket connection installed?
The socket connection is designed for compatible CPVC solvent-cement joining using proper preparation, joining materials, and cure procedures.
What should I confirm before ordering?
Confirm nominal size, Schedule 80 CPVC material, socket configuration, Class 150 compatibility, gasket requirements, and bolt pattern.
Important Ordering & Installation Notes
- Confirm the nominal size.
- Verify the socket configuration.
- Confirm Class 150 compatibility.
- Check gasket and bolt requirements.
- Use compatible CPVC joining materials and procedures.
