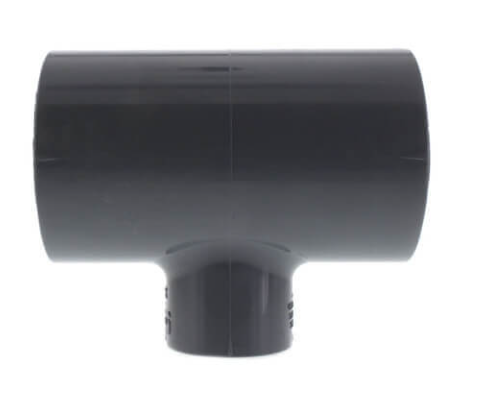

Schedule 80 CPVC Reducing Tee (SOC)
Schedule 80 CPVC Reducing Tee (SOC) provides a three-way connection with a reduced-size branch for compatible CPVC piping systems. The socket configuration allows the fitting to maintain the main piping run while transitioning to a smaller branch connection.
The Schedule 80 CPVC reducing tee combines durable CPVC construction with solvent-cement socket connections for a compact branch transition. Selection should account for the main-run size, reduced branch size, socket compatibility, piping alignment, system requirements, and proper CPVC joining procedures.
Product Highlights
- CPVC construction
- Schedule 80 design
- Reducing tee configuration
- Three socket connections
- Straight-through main run
- Reduced-size branch outlet
- Provides a three-way piping connection
- Designed for compatible solvent-cement CPVC piping
Technical Specifications
| Product Type | Reducing Tee |
|---|---|
| Material | CPVC |
| Schedule | Schedule 80 |
| Configuration | Reducing Tee |
| Connection | Socket (SOC) |
| Socket Interface | Compatible CPVC Pipe |
| Connection Count | Three Connections |
| Branch Configuration | Reduced-Size Socket Branch |
| Joining Method | CPVC Solvent-Cement Connections |
| Primary Function | Provide a Reduced Branch Connection in Compatible Schedule 80 CPVC Piping |
Reducing Tee Design
The reducing tee design provides a straight-through main run with a smaller branch connection extending from the tee body. This configuration allows a reduced-size branch to be incorporated without requiring a separate reducing fitting at the branch outlet.
The main-run and branch sizes should be confirmed before ordering because reducing tees contain more than one nominal connection size. Proper orientation should also be established before the solvent-cement connections are assembled.
Socket Connections
The socket connections are designed to accept appropriately sized compatible CPVC pipe. The two main-run sockets maintain the primary piping path while the reduced socket provides the smaller branch connection.
Pipe ends and fitting sockets should be clean and properly prepared before assembly. Compatible CPVC primer, solvent cement, insertion procedures, and required cure times should be followed for each connection.
Reduced Branch Connection
The reduced branch outlet allows a smaller CPVC line to branch from the larger main piping run. This integrated reduction creates a compact transition while maintaining a three-way tee configuration.
Both the main-run size and reduced branch size should match the adjoining CPVC pipe. Confirming all connection sizes before installation helps prevent incorrect fitting selection and unnecessary changes during assembly.
Schedule 80 CPVC Application
A Schedule 80 CPVC Reducing Tee provides a molded branch transition for compatible CPVC piping installations. Its socket connections are intended for properly prepared solvent-cement joints using materials suitable for the CPVC piping system.
System temperature, pressure, fluid compatibility, joining requirements, and applicable installation standards should be reviewed for the intended application. Proper piping support and alignment should be maintained so unnecessary mechanical stress is not transferred to the fitting.
Installation & Selection Considerations
- Confirm all nominal sizes.
- Verify the reduced branch size.
- Confirm the socket configuration.
- Check compatible CPVC pipe sizing.
- Maintain proper piping alignment and support.
Our piping specialists can help review the main-run size, reduced branch size, socket configuration, CPVC pipe compatibility, joining requirements, and installation considerations before you order.
Frequently Asked Questions
What is a Schedule 80 CPVC Reducing Tee used for?
It provides a three-way connection in compatible CPVC piping while transitioning from the main-run size to a smaller branch size.
What makes this a reducing tee?
The branch connection is smaller than the main-run connections, allowing a reduced-size CPVC line to branch directly from the larger piping run.
What does SOC mean?
SOC identifies a socket connection designed to accept compatible CPVC pipe for solvent-cement joining.
How many connections does this reducing tee have?
The fitting has three connections: two sockets forming the main run and one reduced-size socket forming the branch outlet.
How are the socket connections joined?
The sockets are designed for compatible CPVC solvent-cement joining using appropriate pipe preparation, primer, solvent cement, insertion procedures, and cure requirements.
What should I confirm before ordering?
Confirm the main-run size, reduced branch size, Schedule 80 CPVC material, socket configuration, adjoining pipe sizes, and requirements of the intended piping system.
Important Ordering & Installation Notes
- Confirm all connection sizes.
- Verify the reduced branch size.
- Confirm Schedule 80 CPVC compatibility.
- Check branch orientation before joining.
- Use compatible CPVC joining materials and procedures.
