Spears

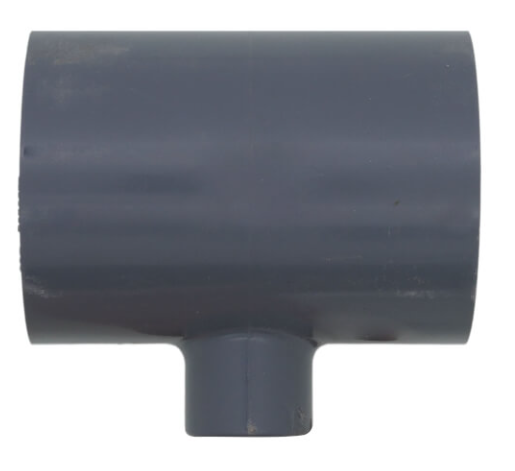

Schedule 80 CPVC Reducing Tee (SOC x FPT)
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
Schedule 80 CPVC Reducing Tee (SOC x FPT)
Schedule 80 CPVC Reducing Tee (SOC x FPT) provides a three-way connection with a reduced female-threaded branch for compatible CPVC piping systems. The configuration maintains the main CPVC piping run while transitioning to a smaller threaded branch connection.
The Schedule 80 CPVC reducing tee combines solvent-cement socket connections with a Female Pipe Thread branch for a compact mixed-connection transition. Selection should account for all nominal sizes, branch reduction, thread compatibility, piping alignment, system requirements, and proper CPVC installation procedures.
Product Highlights
- CPVC construction
- Schedule 80 design
- Reducing tee configuration
- Socket run connections
- Female Pipe Thread branch
- Reduced-size branch connection
- Combines solvent-cement and threaded interfaces
- Designed for compatible Schedule 80 CPVC piping
Technical Specifications
| Product Type | Reducing Tee |
|---|---|
| Material | CPVC |
| Schedule | Schedule 80 |
| Configuration | Reducing Tee |
| Connection | Socket (SOC) x Female Pipe Thread (FPT) |
| Socket Interface | Compatible CPVC Pipe |
| Thread Interface | Compatible Male Pipe Thread |
| Branch Configuration | Reduced Female-Threaded Branch |
| Joining Method | CPVC Solvent-Cement and Threaded Connections |
| Primary Function | Provide a Reduced Female-Threaded Branch from Compatible CPVC Piping |
Reducing Tee Design
The reducing tee design provides a straight-through CPVC piping run with a smaller female-threaded branch connection. This configuration combines the branch reduction and threaded transition within one molded fitting.
All connection sizes should be confirmed before ordering because the branch connection differs from the main-run connections. Proper orientation should also be established before the socket connections are solvent cemented.
Socket Connections
The socket connections are designed to accept appropriately sized compatible CPVC pipe. These connections maintain the primary piping run and integrate the tee into the adjoining Schedule 80 CPVC system.
Pipe ends and fitting sockets should be clean and properly prepared before assembly. Compatible CPVC primer, solvent cement, insertion procedures, and required cure times should be followed for each socket connection.
Reduced Female Threaded Branch
The reduced Female Pipe Thread branch accepts an appropriately sized compatible male-threaded component. This creates a smaller threaded branch while the main CPVC run remains connected through solvent-cement socket joints.
Thread size and compatibility should be verified before assembly. Appropriate threaded plastic-piping procedures should be followed while avoiding excessive tightening that could place unnecessary stress on the CPVC fitting.
Schedule 80 CPVC Application
A Schedule 80 CPVC Reducing Tee SOC x FPT provides a compact transition where a smaller threaded branch is required from compatible CPVC piping. Its mixed connection design can reduce the need for a separate threaded adapter at the branch.
System temperature, pressure, fluid compatibility, joining requirements, and applicable installation standards should be reviewed for the intended application. Proper piping support and alignment should be maintained around all connections.
Installation & Selection Considerations
- Confirm all nominal sizes.
- Verify the SOC x FPT configuration.
- Confirm the reduced branch size.
- Check male-thread compatibility.
- Avoid excessive threaded tightening.
Our piping specialists can help review the main-run size, reduced threaded branch size, SOC x FPT configuration, CPVC compatibility, and installation considerations before you order.
Frequently Asked Questions
What is a Schedule 80 CPVC Reducing Tee SOC x FPT used for?
It provides a three-way CPVC connection with a reduced female-threaded branch for a compatible male-threaded component.
What makes this a reducing tee?
The branch connection is smaller than the main-run connections, creating a size transition at the branch outlet.
What does SOC mean?
SOC identifies a socket connection designed for compatible CPVC pipe and solvent-cement joining.
What does FPT mean?
FPT means Female Pipe Thread and identifies the threaded branch connection designed to accept a compatible male pipe thread.
How should the threaded branch be installed?
Use appropriate threaded plastic-piping procedures and avoid excessive tightening that could place unnecessary stress on the fitting.
What should I confirm before ordering?
Confirm the main-run size, reduced branch size, SOC x FPT configuration, male-thread compatibility, and requirements of the intended CPVC piping system.
Important Ordering & Installation Notes
- Confirm all connection sizes.
- Verify the reduced branch size.
- Confirm SOC x FPT configuration.
- Avoid excessive threaded tightening.
- Use compatible CPVC joining materials and procedures.
