Description

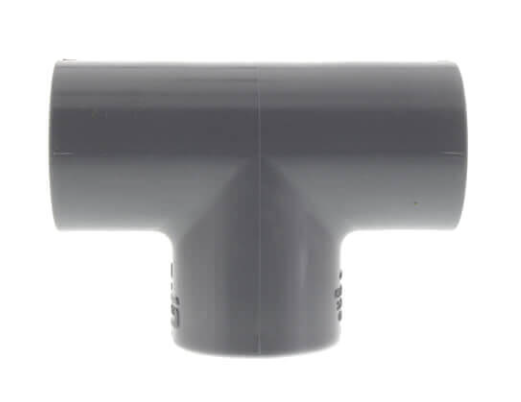

Schedule 80 CPVC Tee (SOC x FPT)
Schedule 80 CPVC Tee (SOC x FPT) provides a three-way connection combining compatible CPVC socket connections with a female-threaded branch interface. The configuration allows a male-threaded component to branch from a Schedule 80 CPVC piping run.
The Schedule 80 CPVC SOC x FPT tee combines durable CPVC construction with solvent-cement and threaded connections in one compact fitting. Selection should account for nominal sizes, thread compatibility, branch orientation, piping alignment, system requirements, and proper CPVC installation procedures.
Product Highlights
- CPVC construction
- Schedule 80 design
- Three-way tee configuration
- Socket connection interfaces
- Female Pipe Thread branch
- Accepts compatible male threads
- Combines socket and threaded connections
- Designed for compatible Schedule 80 CPVC piping
Technical Specifications
| Product Type | Tee |
|---|---|
| Material | CPVC |
| Schedule | Schedule 80 |
| Configuration | Socket x Female-Threaded Tee |
| Connection | Socket (SOC) x Female Pipe Thread (FPT) |
| Socket Interface | Compatible CPVC Pipe |
| Thread Interface | Compatible Male Pipe Thread |
| Connection Count | Three Connections |
| Joining Method | CPVC Solvent-Cement and Threaded Connections |
| Primary Function | Provide a Female-Threaded Branch from Compatible Schedule 80 CPVC Piping |
Tee Design
The tee design provides a straight-through CPVC piping run with a female-threaded branch connection. This configuration creates a three-way transition while combining two different connection methods within one fitting.
All nominal connection sizes should be confirmed before ordering. Proper branch orientation and thread compatibility should also be established before the fitting is installed.
Socket Connections
The socket connections are designed to accept appropriately sized compatible CPVC pipe. These connections integrate the tee into the adjoining Schedule 80 CPVC piping using solvent-cement joining procedures.
Pipe ends and fitting sockets should be clean and properly prepared before assembly. Compatible CPVC primer, solvent cement, insertion procedures, and required cure times should be followed.
Female Threaded Branch
The Female Pipe Thread branch accepts an appropriately sized compatible male-threaded component. This creates a threaded branch connection while the socket connections remain solvent-cemented into the CPVC piping system.
Thread size and compatibility should be confirmed before assembly. Appropriate threaded plastic-piping procedures should be followed while avoiding excessive tightening that could place unnecessary stress on the CPVC fitting.
Schedule 80 CPVC Application
A Schedule 80 CPVC SOC x FPT Tee provides a molded mixed-connection transition for compatible CPVC piping installations. Its configuration can reduce the need for a separate threaded adapter at the branch connection.
System temperature, pressure, fluid compatibility, joining requirements, and applicable installation standards should be reviewed for the intended application. Proper piping support and alignment should be maintained around all connections.
Installation & Selection Considerations
- Confirm all nominal sizes.
- Verify the SOC x FPT configuration.
- Confirm male-thread compatibility.
- Check branch orientation before joining.
- Avoid excessive threaded tightening.
Our piping specialists can help review nominal sizes, socket connections, female-thread compatibility, branch orientation, CPVC compatibility, and installation considerations before you order.
Frequently Asked Questions
What is a Schedule 80 CPVC SOC x FPT Tee used for?
It provides a three-way CPVC connection with a female-threaded branch for a compatible male-threaded component.
What does SOC mean?
SOC identifies a socket connection designed to accept compatible CPVC pipe for solvent-cement joining.
What does FPT mean?
FPT means Female Pipe Thread and identifies an internally threaded connection that accepts a compatible male pipe thread.
How are the socket connections joined?
The socket connections are designed for compatible CPVC solvent-cement joining using appropriate preparation and installation procedures.
How should the threaded connection be installed?
Use appropriate threaded plastic-piping procedures and avoid excessive tightening that could place unnecessary stress on the fitting.
What should I confirm before ordering?
Confirm all nominal sizes, SOC x FPT configuration, male-thread compatibility, branch orientation, and requirements of the intended CPVC piping system.
Important Ordering & Installation Notes
- Confirm all connection sizes.
- Verify the SOC x FPT configuration.
- Confirm male-thread compatibility.
- Avoid excessive threaded tightening.
- Use compatible CPVC joining materials and procedures.
