Description

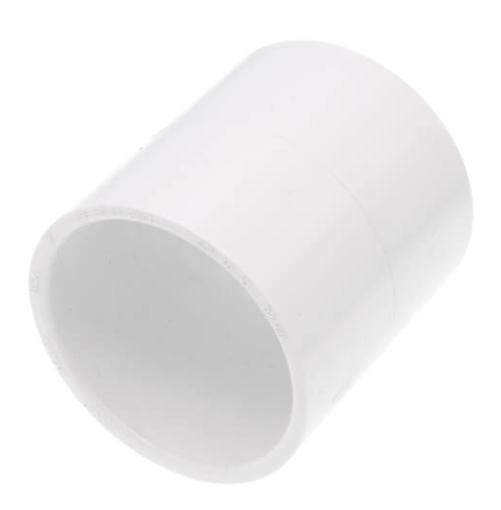

Schedule 40 PVC Coupling (SOC) No Stop
Schedule 40 PVC Coupling (SOC) No Stop provides a straight socket connection for compatible Schedule 40 PVC piping without an internal center stop. The no-stop configuration allows the coupling to slide farther along compatible pipe than a conventional stopped coupling, making it useful where additional positioning flexibility is needed during piping assembly or repair work.
The socket no-stop configuration can be positioned along compatible PVC pipe before being moved into its final connection location. Selection should account for nominal size, Schedule 40 PVC compatibility, adjoining pipe dimensions, required coupling movement, available repair clearance, pipe alignment, joining materials, service conditions, and adequate support of the completed piping assembly.
Product Highlights
- PVC construction
- Socket connections
- No internal stop
- Schedule 40 design
- Straight coupling configuration
- Allows flexible positioning along compatible pipe
- Supports inline connection and repair applications
- Provides added installation flexibility compared with a stopped coupling
Technical Specifications
| Product Type | Coupling |
|---|---|
| Material | PVC |
| Schedule | Schedule 40 |
| Connection | Socket (SOC) |
| Coupling Style | No Stop |
| Internal Stop | None |
| Fitting Configuration | Straight Coupling |
| Connection Interface | Compatible PVC Pipe |
| Piping Direction | Straight |
| Joining Method | Compatible PVC Solvent-Cement Joining |
| Installation Feature | Sliding Positioning Along Compatible Pipe |
| Primary Function | Provide a Positionable Inline Connection in Schedule 40 PVC Piping |
No-Stop Coupling Design
The no-stop coupling design omits the internal center stop normally used to limit pipe insertion from each end of a conventional coupling. Without that obstruction, the fitting can slide farther along appropriately sized compatible pipe, providing additional freedom when positioning the coupling within a straight piping run.
This sliding capability can be particularly useful when connecting existing pipe sections where there is limited room to spread the piping apart for conventional coupling installation. The final coupling location and pipe engagement should be established carefully so both sides of the completed connection are positioned correctly before permanent joining.
Socket Connections
The socket connections provide joining surfaces for appropriately sized compatible PVC pipe on both sides of the coupling. Because there is no internal stop defining the final pipe position, installers must control the coupling location and pipe engagement rather than relying on a molded center stop to establish insertion.
Pipe and socket surfaces should be properly prepared using joining practices and materials appropriate for the PVC piping system. Careful measurement, marking, alignment, and positioning before final assembly help ensure the no-stop coupling provides suitable engagement with both adjoining pipe sections.
Repair & Positioning Flexibility
The sliding configuration provides additional positioning flexibility for suitable repair and connection situations. The coupling can be moved along compatible pipe during placement, allowing adjoining pipe sections to be aligned before the fitting is returned to the intended final connection position.
Planning is especially important because the absence of an internal stop removes a physical reference for pipe insertion depth. Marking the intended final coupling position before joining helps control placement and makes it easier to verify that the fitting adequately engages the adjoining pipe on each side.
Schedule 40 PVC Integration
A Schedule 40 PVC Coupling (SOC) No Stop provides an inline connection option where a conventional stopped coupling may not offer enough positioning flexibility. Its straight socket configuration maintains the piping direction while the open internal bore allows the coupling to move along compatible pipe during installation.
Application suitability should be evaluated using the requirements of the complete piping system rather than the Schedule 40 designation alone. Pipe compatibility, required engagement, service conditions, joining materials, repair access, piping alignment, installation environment, support, and applicable installation practices should all be considered during coupling selection.
Installation & Selection Considerations
- Confirm the nominal size.
- Verify the no-stop design.
- Check Schedule 40 PVC compatibility.
- Confirm sufficient coupling travel is available.
- Allow adequate clearance for repair positioning.
Our PVC fitting specialists can help review your nominal size, Schedule 40 requirements, no-stop configuration, adjoining PVC pipe, required coupling travel, pipe engagement, repair clearance, joining requirements, piping alignment, and installation conditions before you order.
Frequently Asked Questions
What is a Schedule 40 PVC No-Stop Coupling used for?
It provides a straight socket connection with additional positioning flexibility for compatible Schedule 40 PVC piping and suitable repair applications.
What does SOC mean?
SOC means socket and identifies the receiving connection used with appropriately sized compatible PVC pipe.
What does no stop mean?
No stop means the coupling does not have an internal center stop that limits how far compatible pipe can pass into the fitting.
Can the coupling slide along the pipe?
Yes. The absence of an internal stop allows the coupling to slide farther along appropriately sized compatible pipe during positioning.
Why is a no-stop coupling useful for repairs?
Its sliding configuration can provide additional positioning flexibility where existing pipe cannot easily be spread apart for conventional coupling installation.
Should the final coupling position be marked?
Yes. Marking the intended position helps control final placement and pipe engagement because there is no internal stop to establish insertion depth.
Important Ordering & Installation Notes
- Inspect the bore before use.
- Prepare both pipe ends correctly.
- Mark the final coupling position.
- Verify pipe engagement before cementing.
- Support adjoining piping after final assembly.
