Lesso America

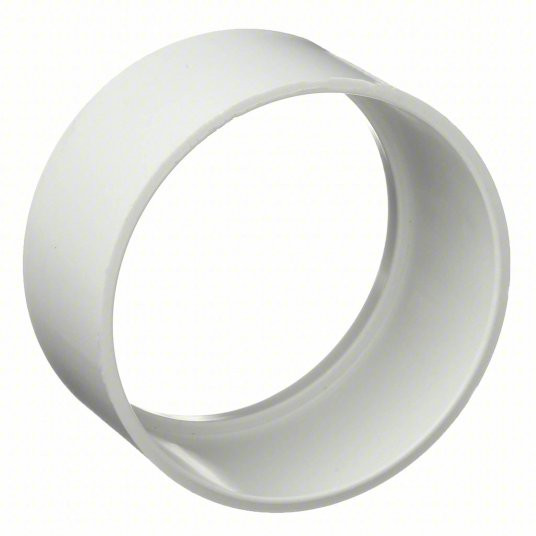

PVC SDR 35 Adapter Bushing (Sewer SPG x DWV HUB)
- SKU:
- LP117X
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
PVC SDR 35 Adapter Bushing (Sewer SPG x DWV Hub)
PVC SDR 35 Adapter Bushings provide a compact transition between SDR 35 sewer fittings and compatible DWV drainage piping within non-pressure sewer and drainage systems.
Featuring a sewer spigot (SPG) connection on one end and a DWV hub on the opposite end, this adapter bushing is designed to bridge two different PVC piping standards within the same drainage network. The sewer spigot end fits into a compatible SDR 35 sewer hub, while the DWV hub accepts compatible DWV pipe. This configuration can simplify transitions between sewer and DWV piping while reducing the need for additional intermediate fittings. Constructed from durable PVC, the fitting offers lightweight handling along with resistance to corrosion and many compatible chemicals.
Product Highlights
- PVC SDR 35 adapter bushing
- Sewer SPG x DWV Hub configuration
- Transitions between SDR 35 sewer and DWV piping standards
- Sewer spigot end fits into a compatible SDR 35 hub
- DWV hub accepts compatible DWV pipe
- Compact bushing-style transition
- Can reduce the need for additional transition fittings
- Designed for solvent-weld installation
- Durable PVC construction
- Lightweight for easier handling and installation
- Resistant to corrosion
- Resistant to many compatible chemicals
- Suitable for underground sewer applications
- Suitable for sanitary drainage applications
- Suitable for stormwater systems
- Suitable for wastewater piping systems
- Designed for non-pressure drainage service
- Helps provide a secure, leak-resistant transition
Technical Specifications
| Product Type | PVC SDR 35 Adapter Bushing |
|---|---|
| Material | PVC |
| Connection Type | Sewer Spigot (SPG) x DWV Hub |
| Sewer-Side Connection | SDR 35 Sewer Spigot |
| DWV-Side Connection | DWV Hub |
| Fitting Style | Adapter Bushing |
| Joint Method | Solvent Weld |
| System Type | Sewer, Drainage, and DWV |
| Pressure Service | Non-Pressure |
| Primary Function | Transition Between an SDR 35 Sewer Hub and Compatible DWV Pipe |
| Typical Applications | Sanitary Sewer, Stormwater, Wastewater, Underground Drainage, and PVC Sewer-to-DWV Transitions |
Connection Configuration
SDR 35 Sewer Spigot
The sewer spigot end is designed to fit into a compatible SDR 35 sewer hub for solvent-weld installation.
DWV Hub
The DWV hub accepts compatible DWV pipe, creating the transition from the sewer-side connection to the DWV piping system.
Adapter Bushing Design
This fitting combines a sewer-standard spigot connection with a DWV-standard hub connection in one compact adapter.
The spigot-style sewer end inserts into a compatible SDR 35 hub rather than receiving pipe itself, helping create a compact fitting-to-fitting transition.
The opposite DWV hub accepts compatible drainage pipe, allowing the two piping standards to be integrated within the same non-pressure drainage system.
Why Choose a PVC SDR 35 Adapter Bushing?
Compact Transition
- Connects SDR 35 sewer fittings to DWV pipe
- Combines two connection standards in one fitting
- Spigot end can fit directly into a sewer hub
- Can reduce overall fitting count
- Useful in space-sensitive drainage layouts
PVC Construction
- Corrosion resistant
- Lightweight construction
- Suitable for underground installations
- Resistant to many compatible chemicals
- Designed for long-term drainage service
Typical Applications
Sewer & Drainage
- Sanitary sewer systems
- Stormwater drainage
- Wastewater piping
- Underground drainage
- General sewer connections
Transition Applications
- SDR 35 sewer to DWV transitions
- Building sewer connections
- Drainage system modifications
- Repair and retrofit work
- Mixed PVC drainage systems
Installation
Verify all nominal connection sizes before installation and confirm which end is the SDR 35 sewer spigot and which end is the DWV hub.
Confirm that the sewer spigot matches the intended SDR 35 hub and that the DWV hub matches the intended DWV pipe size.
Cut the mating DWV pipe square and remove burrs. Clean and prepare the DWV pipe, DWV hub, sewer spigot, and mating SDR 35 hub according to accepted PVC solvent-weld installation procedures.
Dry-fit both sides of the adapter before applying solvent cement to confirm correct insertion, orientation, and compatibility with each piping standard.
Apply compatible PVC primer and solvent cement as required for the piping system. Fully seat the sewer spigot into the compatible SDR 35 hub and fully seat the DWV pipe into the DWV hub while maintaining proper alignment.
Allow completed solvent-weld joints to cure according to the solvent cement manufacturer's recommendations before placing the drainage system into service.
Our piping specialists can help review your SDR 35 sewer hub size, DWV pipe size, connection configuration, and drainage-system compatibility before you order.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is a PVC SDR 35 adapter bushing used for?
It is used to transition from a compatible SDR 35 sewer hub to compatible DWV piping within a non-pressure drainage system.
What does Sewer SPG x DWV Hub mean?
It means one end is an SDR 35 sewer spigot designed to fit into a sewer hub, while the opposite end is a DWV hub designed to receive compatible DWV pipe.
What does SPG mean?
SPG means spigot. A spigot connection inserts into a compatible hub instead of receiving pipe inside a socket.
Why are the two ends different?
SDR 35 sewer piping and DWV piping use different dimensional standards. The adapter incorporates both connection types so the systems can be joined correctly.
How is this different from the Sewer Hub x DWV Hub adapter coupling?
This adapter uses a sewer spigot on the SDR 35 side that inserts into an existing sewer hub. The adapter coupling version uses a sewer hub that receives SDR 35 sewer pipe.
Can the spigot end fit directly into an SDR 35 fitting?
Yes. The supplied product description identifies the sewer spigot as being designed to fit into a compatible SDR 35 hub.
How is the DWV side connected?
The DWV side is a hub connection designed to accept compatible DWV pipe for solvent-weld installation.
Does this fitting require solvent cement?
Yes. Both the sewer spigot-to-hub connection and the DWV pipe-to-hub connection are intended for compatible PVC solvent-weld installation.
Is this fitting suitable for underground use?
The supplied product information identifies it for underground sewer and drainage applications.
Can it be used in stormwater or wastewater systems?
Yes. The supplied product information identifies sewer, stormwater, and wastewater systems as typical applications.
Is this fitting intended for pressure service?
No. This adapter is intended for sewer, drainage, and DWV applications rather than pressure piping.
What should I verify before ordering?
Confirm the SDR 35 sewer hub size, sewer spigot size, DWV hub size, DWV pipe size, connection orientation, and compatibility with the intended drainage system.
Important Ordering & Installation Notes
- This listing is for a PVC SDR 35 Adapter Bushing with Sewer SPG x DWV Hub connections.
- Verify all nominal connection sizes before ordering.
- Confirm which end is the SDR 35 sewer spigot.
- Confirm which end is the DWV hub.
- The sewer spigot is designed to fit into a compatible SDR 35 sewer hub.
- The DWV hub is designed to receive compatible DWV pipe.
- Do not assume the sewer and DWV connections use the same dimensional standard.
- Verify SDR 35 hub compatibility before installation.
- Verify DWV pipe compatibility before installation.
- The fitting is designed to transition between two different PVC piping standards.
- The spigot configuration can provide a compact fitting-to-fitting connection.
- Both connections are intended for solvent-weld installation.
- Dry-fit both sides before applying primer or solvent cement.
- Confirm insertion depth and alignment before final assembly.
- Cut mating DWV pipe square and remove burrs.
- Clean and prepare all mating surfaces before solvent welding.
- Use approved PVC primer and solvent cement according to manufacturer instructions.
- Fully seat the sewer spigot into the correct SDR 35 hub.
- Fully seat the DWV pipe into the DWV hub.
- Maintain proper alignment while the joints set.
- Allow completed solvent-weld joints to cure according to the cement manufacturer's recommendations before service.
- This fitting is intended for sewer, stormwater, wastewater, and drainage applications.
- Consult manufacturer documentation for complete dimensions and pipe compatibility.
- Consult manufacturer documentation for installation and operating limitations.
- Follow applicable plumbing, sewer, and drainage codes.
