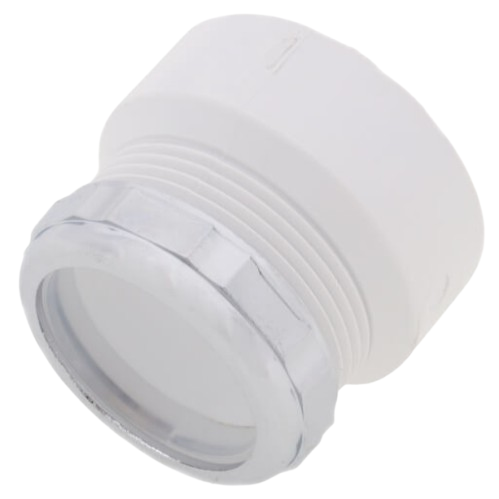

PVC DWV Female Trap Adapter w/ Chrome Nut and Washer (H x S)
- SKU:
- P104X
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
PVC DWV Female Trap Adapter w/ Chrome Nut and Washer (H x S)
Spears® PVC DWV Female Trap Adapter w/ Chrome Nut and Washer provides a transition between compatible PVC drain, waste, and vent piping and a tubular slip-joint connection. The P104X series combines a hub connection with a slip connection and includes a chrome nut and washer for the tubular side of the assembly.
Available in 1-1/2" x 1-1/4", 1-1/2", and 2" configurations, this molded white PVC trap adapter provides a serviceable connection point between permanent PVC DWV piping and compatible tubular drainage components. The chrome nut and washer secure the slip-joint connection while the hub side integrates with the PVC drainage system.
Product Highlights
- White PVC
- Hub x slip design
- Chrome nut included
- Slip-joint washer included
- Spears® P104X series
- Product code 051
- Available in three configurations
- Transitions PVC DWV piping to tubular drainage components
Technical Specifications
| Product Type | DWV Female Trap Adapter |
|---|---|
| Manufacturer | Spears® Manufacturing Company |
| Series | P104X |
| Material | PVC |
| Color | White |
| Construction | Molded |
| Connection | Hub x Slip |
| Included Components | Chrome Nut & Washer |
| Available Sizes | 1-1/2" x 1-1/4", 1-1/2", and 2" |
| Spears Part Numbers | P104X-212, P104X-015, and P104X-020 |
| Product Code | 051 |
| N Dimension | 3/16" |
| System Type | PVC Drain, Waste & Vent (DWV) |
P104X Female Trap Adapter Design
The Spears® P104X series is designed to transition from a compatible PVC DWV hub connection to a tubular slip-joint connection. The molded PVC body becomes part of the drainage piping while the slip side remains serviceable for fixture and trap connections.
This configuration is useful where permanent PVC drainage piping must connect to removable tubular components beneath a fixture. The adapter provides the transition without requiring a separate threaded fitting between the PVC system and the tubular connection.
Chrome Nut & Washer
The P104X series includes a chrome nut and washer for the slip-joint side of the trap adapter. The nut provides the mechanical connection while the washer seals around the compatible tubular component when the assembly is properly positioned and tightened.
During installation, place the washer correctly between the adapter and tubular connection before tightening the chrome nut. Proper washer positioning helps maintain an even seal while preserving the ability to disassemble the slip joint for future service.
Available P104X Configurations
The P104X-212 is the 1-1/2" x 1-1/4" configuration, while the P104X-015 is the 1-1/2" version and the P104X-020 is the 2" version. Spears lists all three variations with a published N dimension of 3/16".
Each P104X configuration has a standard pack quantity of 50, pallet quantity of 3600, and Spears product code 051. Selecting the correct variation depends on the PVC hub size and the tubular connection required by the fixture drainage layout.
Fixture Drain Integration
The trap adapter creates the transition between permanent PVC DWV piping and serviceable tubular drainage components. This arrangement is commonly used where the fixture trap or tailpiece needs to connect to the building drainage system without becoming permanently solvent welded to the tubular assembly.
Before installation, verify the PVC hub size, tubular diameter, available clearance, and alignment between the fixture outlet and the wall or floor drainage connection. Proper layout helps keep the slip joint straight and reduces unnecessary stress on the adapter.
Installation & Selection Considerations
- Confirm the PVC hub size.
- Identify the tubular connection size.
- Check clearance around the slip joint.
- Select the correct P104X configuration.
- Verify alignment with the fixture drain piping.
Our PVC DWV fitting specialists can help you choose between the Spears® P104X-212, P104X-015, and P104X-020 configurations based on your PVC hub size, tubular drain connection, chrome nut and washer requirements, fixture layout, and available installation clearance.
Frequently Asked Questions
What Spears® series is this female trap adapter?
The female trap adapter with chrome nut and washer is Spears® P104X.
What connection configuration does it use?
The P104X series uses a Hub x Slip connection configuration.
What sizes are available?
Spears lists 1-1/2" x 1-1/4", 1-1/2", and 2" configurations.
What are the Spears® part numbers?
The listed part numbers are P104X-212, P104X-015, and P104X-020.
Are the chrome nut and washer included?
Yes. Spears identifies the P104X series as a female trap adapter supplied with a chrome nut and washer.
What is the published N dimension?
Spears lists an N dimension of 3/16" for all three P104X configurations.
What is the standard pack quantity?
All three listed P104X configurations have a standard pack quantity of 50.
What should I confirm before ordering?
Confirm the PVC hub size, tubular connection size, required P104X variation, available fixture clearance, and alignment of the adjoining drainage components.
Important Ordering & Installation Notes
- Inspect the chrome nut before assembly.
- Place the washer correctly in the slip joint.
- Keep the tubular connection properly aligned.
- Tighten the chrome nut without overtightening.
- Keep the slip joint accessible for future service.
