ABB

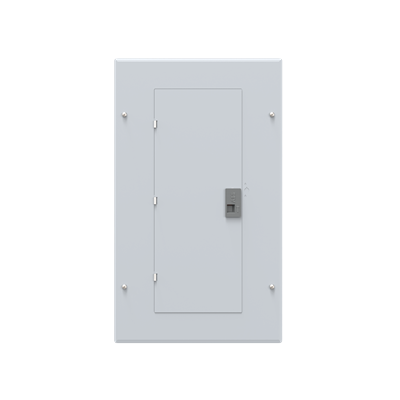

NEMA 1 Main Breaker Plug-On Neutral Load Center – Copper Bus
- Availability:
- Allow 2-3 Days to Ship
- Weight:
- 0.00 LBS
Description
NEMA 1 Main Breaker Plug-On Neutral Load Center – Copper Bus
ABB ReliaHome NEMA 1 Main Breaker Plug-On Neutral Load Centers – Copper Bus are part of the ReliaHome P-Series+ family and are designed for indoor residential electrical distribution applications requiring copper bus construction and a main circuit breaker configuration.
This product family includes 100A and 200A models with 20/40, 30/60, and 40/80 circuit configurations. All four models listed here use indoor NEMA 1 construction and the ReliaHome plug-on neutral platform.
Product Highlights
- ABB ReliaHome P-Series+ load center
- Main Circuit Breaker (MCB) configuration
- Plug-on neutral design
- Copper bus construction
- Indoor NEMA 1 enclosure
- Single-phase electrical system
- 3-wire, 120/240 VAC
- 100A and 200A options
- 20/40, 30/60, and 40/80 configurations
- Galvanized enclosure construction
- Integrated circuit breaker mounting rails
- One-tool installation design
- Backed-out neutral screws
- Field-extendable neutral bars
- Factory-installed bonding screws on main circuit breaker configurations
- 10-year limited warranty
- UL 67 certified
Technical Specifications
| Manufacturer | ABB |
|---|---|
| Product Family | ReliaHome P-Series+ |
| Product Type | Main Breaker Load Center |
| Main Configuration | Main Circuit Breaker |
| Neutral Design | Plug-On Neutral |
| Bus Material | Copper |
| Enclosure Rating | NEMA 1 |
| Application | Indoor |
| Phase | Single Phase |
| Wire Configuration | 3 Wire |
| System Voltage | 120/240 VAC |
| Available Ampere Ratings | 100A, 200A |
| Available Configurations | 20/40, 30/60, 40/80 |
| Enclosure Construction | Galvanized |
| Warranty | 10-Year Limited Warranty |
| Certification | UL 67 |
| Available Catalog Numbers | PCM2010, PCM3010, PCM3020, PCM4020 |
Construction Details
ABB ReliaHome P-Series+ load centers use copper bus construction and a plug-on neutral design intended to simplify compatible branch circuit breaker installation.
The platform uses a galvanized enclosure with integrated circuit breaker mounting rails, backed-out neutral screws, field-extendable neutral bars, and ABB's one-tool installation approach.
ABB identifies P-Series+ as a single-phase, 3-wire, 120/240 VAC platform available with both main-lug-convertible and main circuit breaker configurations. These four PCM models are listed here as indoor NEMA 1 main breaker load centers.
Factory-installed bonding screws are standard on P-Series+ main circuit breaker configurations.
Available Load Center Configurations
Catalog Number & Configuration
| Catalog Number | Ampere Rating | Spaces / Circuits | Main Type | NEMA Type |
|---|---|---|---|---|
| PCM2010 | 100A | 20/40 | Main Circuit Breaker | NEMA 1 |
| PCM3010 | 100A | 30/60 | Main Circuit Breaker | NEMA 1 |
| PCM3020 | 200A | 30/60 | Main Circuit Breaker | NEMA 1 |
| PCM4020 | 200A | 40/80 | Main Circuit Breaker | NEMA 1 |
Selecting the Correct Load Center
100A | 20/40
Select PCM2010 for a 100A indoor NEMA 1 copper-bus configuration with 20 spaces and capacity for up to 40 circuits.
100A | 30/60
Select PCM3010 for a 100A indoor NEMA 1 copper-bus configuration with 30 spaces and capacity for up to 60 circuits.
200A | 30/60
Select PCM3020 for a 200A indoor NEMA 1 copper-bus configuration with 30 spaces and capacity for up to 60 circuits.
200A | 40/80
Select PCM4020 for a 200A indoor NEMA 1 copper-bus configuration with 40 spaces and capacity for up to 80 circuits.
Main Circuit Breaker Configuration
These PCM models use a Main Circuit Breaker (MCB) configuration. The main breaker serves as the primary disconnecting and overcurrent-protection device within the compatible load center assembly.
ABB identifies main circuit breaker as an available P-Series+ configuration and specifies factory-installed bonding screws on main circuit breaker models. :contentReference[oaicite:1]{index=1}
Confirm service ampere rating, conductor size, available fault current, branch breaker requirements, and complete service-equipment configuration before installation.
Copper Bus Construction
ABB identifies copper bus as a defining feature of the ReliaHome P-Series+ family. :contentReference[oaicite:2]{index=2}
Copper bus construction should be considered along with service amperage, conductor requirements, breaker configuration, and project specifications when selecting the complete load center.
Plug-On Neutral Design
Plug-On Neutral Breakers
ReliaHome P-Series+ load centers use plug-on neutral bars designed for compatible plug-on neutral branch circuit breakers. :contentReference[oaicite:3]{index=3}
Accessible Neutral Connections
Elevated neutral bars with backed-out screws and field-extendable neutral bars help simplify compatible conductor installation and future panel expansion. :contentReference[oaicite:4]{index=4}
NEMA 1 Indoor Configuration
All four PCM models in this product group are listed as NEMA 1 indoor configurations.
ABB identifies ReliaHome P-Series+ as available in indoor NEMA 1 and outdoor NEMA 3R configurations. These PCM2010, PCM3010, PCM3020, and PCM4020 variants are intended for compatible indoor applications. :contentReference[oaicite:5]{index=5}
Do not substitute a NEMA 1 enclosure where outdoor weather protection or a higher environmental enclosure rating is required.
120/240V Electrical Configuration
Single Phase
ABB specifies the ReliaHome P-Series+ for compatible single-phase residential electrical distribution. :contentReference[oaicite:6]{index=6}
3-Wire
The published electrical configuration is single-phase, 3-wire. :contentReference[oaicite:7]{index=7}
120/240 VAC
The published system voltage for ReliaHome P-Series+ is 120/240 VAC. :contentReference[oaicite:8]{index=8}
Installation-Friendly Features
One-Tool Installation
ABB identifies one-tool installation as a standard P-Series+ feature intended to simplify field installation. :contentReference[oaicite:9]{index=9}
Integrated Breaker Rails
Integrated circuit breaker mounting rails provide the mounting platform for compatible ReliaHome branch breakers. :contentReference[oaicite:10]{index=10}
Galvanized Enclosure
The P-Series+ uses galvanized enclosure construction designed for durability in compatible installations. :contentReference[oaicite:11]{index=11}
Common Applications
Residential Electrical Distribution
- Single-family residences
- Residential branch circuit distribution
- Indoor electrical service equipment
- New residential construction
- Home additions
- Panel replacement projects
Service & Panel Upgrades
- 100A residential service applications
- 200A residential service applications
- Plug-on neutral breaker systems
- Copper-bus panel replacements
- Indoor NEMA 1 installations
- Electrical service upgrades
Spaces & Circuit Capacity
The listed configurations identify the number of breaker spaces and corresponding maximum circuit capacity for each model.
- PCM2010: 20 spaces / 40 circuits
- PCM3010: 30 spaces / 60 circuits
- PCM3020: 30 spaces / 60 circuits
- PCM4020: 40 spaces / 80 circuits
Confirm the permitted breaker combinations and exact circuit capacity for the selected load center before installation.
Installation & Selection Considerations
- Confirm that a main circuit breaker load center is required.
- Verify that copper bus construction is required.
- Confirm a single-phase, 3-wire, 120/240 VAC electrical system.
- Select the required 100A or 200A ampere rating.
- Confirm the required breaker spaces and circuit capacity.
- Verify that NEMA 1 indoor construction is appropriate for the installation.
- Confirm compatible ReliaHome plug-on neutral branch breakers.
- Verify available fault current and complete equipment ratings.
- Confirm service conductor sizing and terminal requirements.
- Maintain applicable electrical working clearances.
- Follow manufacturer terminal torque requirements.
- De-energize equipment before installation or service.
- Verify absence of voltage before working on electrical equipment.
- Installation should be performed by qualified electrical personnel.
- Follow current ABB instructions and applicable electrical codes.
Product Documents
Review the ABB ReliaHome Load Centers datasheet for P-Series+ copper bus construction, plug-on neutral features, main circuit breaker configurations, NEMA enclosure options, electrical specifications, installation features, warranty information, and certification details.
Need Help Selecting a Load Center?
Our electrical and industrial product specialists can help review your service amperage, circuit requirements, copper bus preference, main breaker configuration, indoor enclosure requirements, and compatible branch breakers before you order.
Frequently Asked Questions
What product family are these load centers part of?
These copper-bus models are part of ABB's ReliaHome P-Series+ family.
What bus material is used?
ABB specifies copper bus construction for the ReliaHome P-Series+.
Are these main breaker load centers?
Yes. These PCM models are main circuit breaker configurations.
What voltage are these load centers designed for?
ABB specifies single-phase, 3-wire, 120/240 VAC for P-Series+ load centers.
What is PCM2010?
PCM2010 is the 100A, 20/40, NEMA 1 copper-bus main breaker configuration.
What is PCM3010?
PCM3010 is the 100A, 30/60, NEMA 1 copper-bus main breaker configuration.
What is PCM3020?
PCM3020 is the 200A, 30/60, NEMA 1 copper-bus main breaker configuration.
What is PCM4020?
PCM4020 is the 200A, 40/80, NEMA 1 copper-bus main breaker configuration.
Do these use plug-on neutral?
Yes. Plug-on neutral is a standard P-Series+ feature.
Are factory-installed bonding screws included?
ABB states that factory-installed bonding screws are standard on P-Series+ main circuit breaker configurations.
What warranty applies?
ABB lists a 10-year limited warranty for ReliaHome P-Series+ load centers.
Are they UL certified?
Yes. ABB identifies ReliaHome P-Series+ as UL 67 certified.
Where can I review ABB's product information?
The ABB ReliaHome Load Centers Datasheet PDF is linked in the Product Documents section above.
Important Ordering & Installation Notes
- Product: NEMA 1 Main Breaker Plug-On Neutral Load Center – Copper Bus.
- PCM2010: 100A | 20/40 | NEMA 1.
- PCM3010: 100A | 30/60 | NEMA 1.
- PCM3020: 200A | 30/60 | NEMA 1.
- PCM4020: 200A | 40/80 | NEMA 1.
- Product family: ABB ReliaHome P-Series+.
- Main configuration: Main Circuit Breaker.
- Neutral design: Plug-On Neutral.
- Bus material: Copper.
- Phase: Single phase.
- Wire configuration: 3 wire.
- Voltage: 120/240 VAC.
- Enclosure: NEMA 1 indoor.
- Factory-installed bonding screws are standard on main circuit breaker P-Series+ models.
- Warranty: 10-year limited warranty.
- UL 67 certified.
- Confirm ampere rating, circuit capacity, enclosure type, and breaker compatibility before ordering.
- De-energize equipment before installation or service.
- Installation should be performed by qualified electrical personnel.
- Follow current ABB instructions and applicable electrical codes.
