Milwaukee

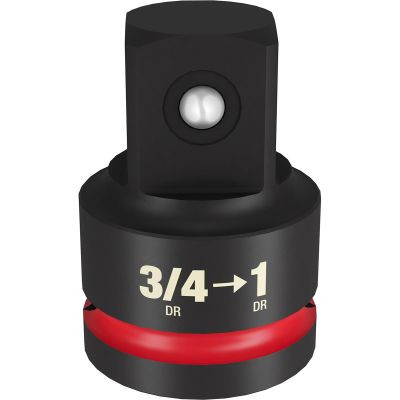

Milwaukee Tool SHOCKWAVE Impact Duty 3/4" Drive 1" Drive Adapter
- SKU:
- MLW49-66-6729
- Availability:
- Usually Ships Same Day
- Weight:
- 0.99 LBS
Description
DUTY®
3/4" to 1"
Impact Adapter
Connect a 3/4-inch square-drive tool to 1-inch drive sockets with this impact-duty adapter.
Product Overview
This 3/4-to-1-inch conversion lets you use a different socket drive without changing the tool.
Allow for the added joint and length, especially where the socket must reach a recessed fastener.
- Impact constructionForged for high-torque work.
- Socket retentionBall detent retains the socket.
- Tool-side retentionDual holes and groove.
- Clear identificationLaser-marked drive sizes.
Technical Specifications
- Tool drive
- 3/4 in square
- Socket drive
- 1 in square
- Material
- Forged steel
- Socket retention
- Ball detent
- Tool retention
- Dual hole + groove
- Size marking
- Laser-etched
Choose the Correct Fit
Connect the 3/4-inch female drive to the tool and the 1-inch male drive to a matching socket. Confirm both ends seat fully.
Use the retention arrangement specified for your tool. Check the adapter and socket cannot detach unexpectedly before operation.
Installation & Care
Keep the assembly square to the fastener. Added connections can reduce clearance and make side loading easier to introduce.
Inspect the drive corners, detent and body for damage. Replace a cracked or distorted adapter instead of continuing under impact.
Small Details. Big Jobsite Energy.
Get set. Stay focused. Make your next move count.
THE NEXT JOB.
Ask Willy:
Need an adapter match? Tell Willy your tool’s drive, socket drive and working space so the GetPipe team can check the setup.
Important Product Questions
Does it increase the tool’s torque capacity?
No. Changing drive size does not raise the rating of the tool, adapter, socket or fastener. Keep the entire assembly within its applicable limits.
Can I use a standard chrome socket with an impact tool?
Use a socket specifically rated for impact service when the tool operates in impact mode. The adapter does not make a hand-tool socket impact-rated.
Which end connects to the tool?
The 3/4-inch square input connects to the tool; the 1-inch square output connects to the socket. Check both drive sizes, not only the socket’s fastener opening.
