Milwaukee

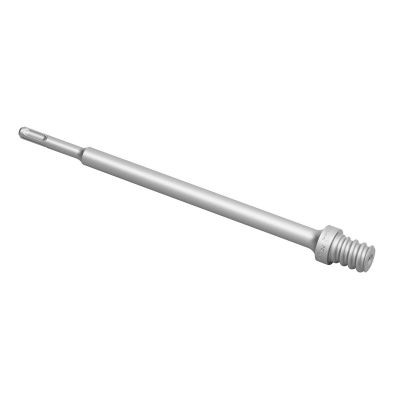

Milwaukee Tool SDS Plus Thin Wall Core Bit 12" Adapter Shank
- SKU:
- MLW48-03-3551
- Availability:
- Usually Ships Same Day
- Weight:
- 0.81 LBS
Description
DUTY®
SDS-Plus Core Bit
Adapter Shank
Connect compatible 1–1-1/2 in thin wall core bodies to an SDS-Plus hammer with this 12 in adapter shank.
Product Overview
The 12-inch SDS-Plus shank links the hammer to a compatible separate core body.
Use extension 48-95-6070 for added reach in the matching thin-wall core system.
- Matched drive fitConnects the hammer to core.
- Separate shankReuses compatible core bits.
- Thin Wall systemFits designated core bodies.
- Reach extensionAccepts a matched extension.
Technical Specifications
- Adapter length
- 12 in
- Hammer interface
- SDS-Plus
- Core system
- Thin wall
- Core size range
- 1–1-1/2 in
- Extension fit
- 48-95-6070
- System center pin
- 48-20-6150
Choose the Correct Fit
Match the SDS-Plus hammer fitting, thin wall core system and 1–1-1/2 in size group. Shank type alone does not establish core-body fit.
Check working clearance for the 12 in adapter. For extra reach, confirm extension 48-95-6070 against the complete assembly.
Installation & Care
Isolate the hammer before assembly. Clean the mating parts, fit the correct core body and check that the hammer connection is retained.
Remove debris after use and inspect both ends for damage. Replace a bent or worn adapter before further coring.
Small Details. Big Jobsite Energy.
Get set. Stay focused. Make your next move count.
THE NEXT JOB.
Ask Willy:
Need help matching a core shank? Send Willy the hammer connection, core-body part number, diameter and reach needed.
Important Product Questions
Will this shank work with a different wall-style core?
It is listed for the thin wall system and 1–1-1/2 in core sizes. Use the adapter assigned to the exact core body rather than selecting by hammer fitting alone.
Does adapter length tell me how deep the core body cuts?
No. 12 in describes this adapter. The separate core body has its own usable cutting depth, and deeper holes may require repeated core removal.
Which extension belongs to this setup?
Extension 48-95-6070 is listed with this core system. Confirm the assembled reach, core diameter and hammer capacity before drilling.
