Milwaukee

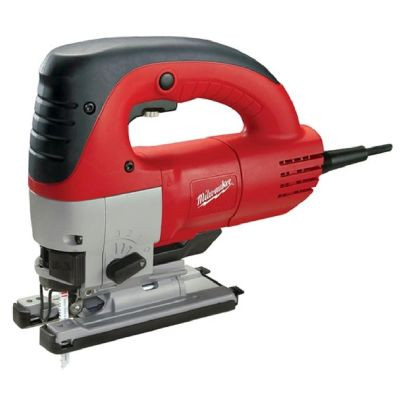

Milwaukee Tool Orbital Jig Saw
- SKU:
- MLW6268-21
- Availability:
- Usually Ships Same Day
- Weight:
- 9.80 LBS
Description
DUTY®
Orbital Jig Saw
6.5 Amp
The 6268-21 jig saw combines variable speed with four orbital settings for different cutting tasks.
Product Overview
The 6268-21 jig saw combines variable speed with four orbital settings for different cutting tasks.
An LED and roller blade guide help follow the cutting line. Tool-free blade changes and shoe adjustment simplify setup, while a counterbalanced mechanism and cushion grip support control during cutting.
- Cutting adjustmentFour orbital settings adapt the blade action.
- Bevel setupKeyless shoe tilts up to 45° in either direction.
- Visible cut lineLED helps illuminate the cutting path.
- Quick blade changesQUIK-LOK clamp simplifies compatible blade replacement.
Technical Specifications
- Model
- 6268-21
- Motor current
- 6.5 A
- Stroke length
- 1 in
- Stroke rate
- 0–3,000 SPM
- Orbital settings
- Four
- Bevel range
- 45° left / right
Choose the Correct Fit
Select a compatible jig-saw blade for the material and cut. Choose orbital action and speed to suit the application.
Match the accessory to the material and task. Confirm size and speed ratings against the tool manual before use.
Installation & Care
Unplug the tool before fitting accessories or making adjustments. Inspect the cord and accessory, secure the work and follow the operating instructions.
Keep vents and attachment points clear. Stop using damaged equipment and follow the manual for cleaning, maintenance and storage.
Small Details. Big Jobsite Energy.
Get set. Stay focused. Make your next move count.
THE NEXT JOB.
Ask Willy:
Need help choosing the correct tool or accessory? Share model 6268-21 and the application you want to confirm.
Important Product Questions
What is included?
One jig saw, carrying case, dust shield and blade.
How is speed controlled?
Use the variable-speed trigger and speed dial. Tachometer feedback helps maintain cutting speed.
Can it make bevel cuts?
Yes. The shoe adjusts without a key up to 45° to either side, within the blade and material limits.
