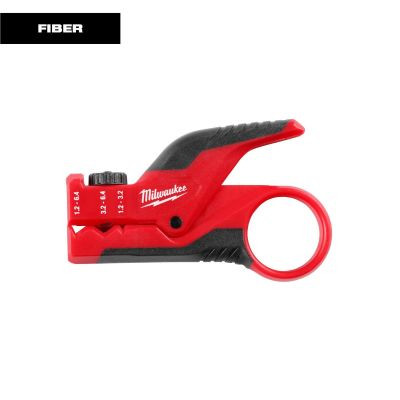

Milwaukee Tool Buffer Tube Ringer and Slitter

(No reviews yet) Write a Review
SKU:
MLW48-22-3014
Availability:
Usually Ships Same Day
Weight:
0.09 LBS
*Images are for visual reference only.
$31.97
Frequently bought together:

Description

Built for the TradesReady for What’s Next
Nothing butHEAVY
DUTY®
CABLE PREPARATION

Buffer Tube
Ringer + Slitter

A buffer-tube tool for ring cuts on 1.2–6.4 mm tubes and longitudinal slits on 3.2–6.4 mm tubes, with tool-free blade-height control.

MODEL48-22-3014

Product Overview

Use the buffer-tube tool for 1.2–6.4 mm ring cuts or 3.2–6.4 mm longitudinal slits.

Set blade height with the tool-free dial; test on a spare end and inspect before termination.

  • Tube rangesMatch tube to the operation.
  • Depth adjustmentDial adjusts blade height.
  • Controlled rotationFinger loop steadies rotation.
  • Overmolded gripCovered precision-control grip.

Technical Specifications

Ringing range
1.2–6.4 mm
Slitting range
3.2–6.4 mm
Blade adjustment
Tool-free dial
Ringing action
Spring-assisted
Control
Finger loop
Grip
Overmolded

Choose the Correct Fit

Check the cable type, layer size and connector preparation requirements before choosing the tool or setting.

Use the correct opening or cartridge side; for an adjustable blade, begin with a conservative depth and test on a spare end.

Installation & Care

Inspect the exposed layer for damage before proceeding. Follow the cable manufacturer’s handling and disposal procedure.

Keep the cutting area clean and close the storage lock where fitted. Replace damaged blades or notches rather than forcing the cable.

Small Details. Big Jobsite Energy.

Get set. Stay focused. Make your next move count.

BRING ON
THE NEXT JOB.
Willy, GetPipe.com support mascot

Ask Willy:

Need help choosing? Tell Willy your material, required size and working clearance so the GetPipe team can check the fit.

Important Product Questions

Can I strip a different cable of the same diameter?

Diameter alone does not establish suitability. Match the cable construction, layer and material to the tool’s stated application.

Which range applies to the operation?

Ring cutting is specified for 1.2–6.4 mm buffer tubes; slitting is specified for 3.2–6.4 mm. Use the range for the operation you are performing.

What if the conductor or fiber is nicked?

Stop and reprepare an undamaged section according to the cable and termination instructions. Do not hide or reuse a damaged portion inside a connector.
