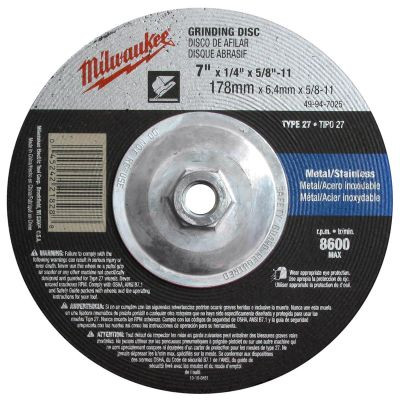

Milwaukee Tool 7" x 1/4" x 5/8-11" Grinding Wheel (Type 27)
- SKU:
- MLW49-94-7025
- Availability:
- Usually Ships Same Day
- Weight:
- 1.11 LBS
Description
DUTY®
7 in Type 27
Grinding Wheel
A 1/4 in thick abrasive wheel for metal / stainless grinding.
Product Overview
This 1/4 in wheel is made for grinding metal / stainless, with the profile matched to the task.
Check the wheel’s rated speed and mounting arrangement before fitting it to a guarded tool.
- ApplicationMetal / stainless grinding.
- Wheel profileType 27 configuration.
- Specified gradeA24R bonded abrasive.
- Speed limit8,600 RPM maximum.
Technical Specifications
- Diameter
- 7 in
- Thickness
- 1/4 in
- Thread
- 5/8-11
- Wheel type
- Type 27
- Abrasive grade
- A24R
- Max speed
- 8,600 RPM
Choose the Correct Fit
Match the tool, wheel type, diameter and arbor or thread. The tool’s maximum speed must not exceed the wheel’s marked RPM limit.
Use the correct wheel guard and flanges. Keep people clear of sparks and fragments, and use eye, face, hearing and respiratory protection as required.
Installation & Care
Disconnect power before mounting. Inspect for damage, follow the mounting instructions and perform the tool maker’s recommended test run.
Use the wheel at the grinding angle specified by its maker. Avoid excessive pressure, edge impacts or using a worn wheel beyond its safe limit.
Small Details. Big Jobsite Energy.
Get set. Stay focused. Make your next move count.
THE NEXT JOB.
Ask Willy:
Tell Willy the tool model, mounting size and material so the wheel type and speed rating can be checked.
Important Product Questions
What material is this wheel for?
This grade is listed for metal / stainless grinding. Do not transfer the application rating from another wheel with the same diameter.
Can I use the side of this wheel?
Use only the grinding faces and operating angle approved for this Type 27 wheel and the tool. Keep the guard fitted.
What speed can the tool run?
The wheel limit is 8,600 RPM. The tool’s maximum rated speed must be at or below that figure; a higher-speed tool is not acceptable just because it is variable speed.
