Milwaukee
Milwaukee Tool 6PC DIAMOND MAX Hole Saw Bit Set
- SKU:
- MLW49-56-0550
- Availability:
- Usually Ships Same Day
- Weight:
- 0.35 LBS
Description
DUTY®
DIAMOND MAX
Tile-Drilling Set

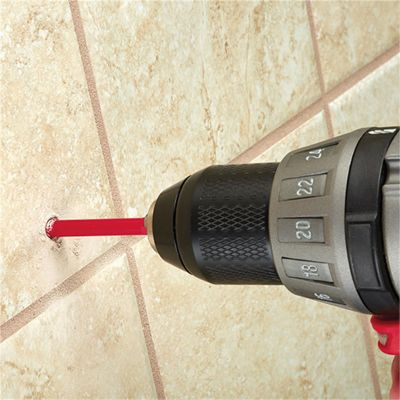

Prepare 3/16, 1/4 and 5/16 in holes in hard tile and stone with a diamond-grit bit set.
Product Overview
This diamond set drills 3/16, 1/4 and 5/16 in holes in hard tile and stone with hex shanks.
Dip each bit in water before cutting; the 1.5 in cutting depth and compact case aid setup.
- Diamond gritFor hard tile and stone.
- 1/4 in hex shanksFit a compatible drill.
- Three hole sizes3/16, 1/4, 5/16 in diameters.
- Pre-cut coolingWater-dip before each cut.
Technical Specifications
- Hole sizes
- 3/16, 1/4, 5/16 in
- Cutting abrasive
- Diamond
- Shank
- 1/4 in hex
- Pre-cut cooling
- Dip bit in water
- Cutting depth
- 1.5 in
- Storage
- Small compact case
Choose the Correct Fit
Match the bit diameter to the anchor or fitting. Support the material and check the path behind the proposed hole.
Use a compatible drill. Follow the bit’s starting method and use the specified cutting mode rather than assuming hammer or impact suitability.
Installation & Care
Dip the bit in water before each cut as directed. Follow the drill and bit instructions for speed, pressure and electrical safety around water.
Isolate the drill before clearing the core. Clean and dry the bits, and inspect the diamond edge before storing them.
Small Details. Big Jobsite Energy.
Get set. Stay focused. Make your next move count.
THE NEXT JOB.
Ask Willy:
Need a bit set for tile installation? Tell Willy the material, thickness, hole sizes and drill you plan to use.
Important Product Questions
Which diameters are included?

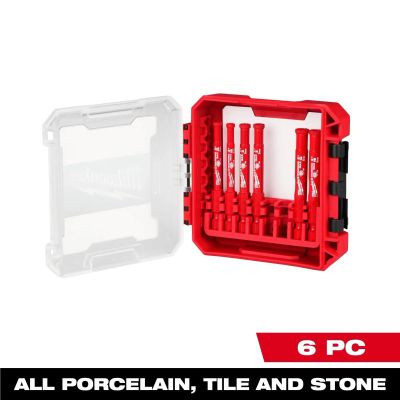

The set contains 3/16, 1/4 and 5/16 in bits. There are two bits in each diameter.
Should the bit be dipped in water?
Yes. Milwaukee directs you to dip the bit in water before each cut. Follow the complete cutting and electrical-safety instructions for your setup.
Can I use an impact driver because the shank is hex?
A hex shank is a connection shape, not an impact rating. Use a compatible drill and the cutting mode specified for the bit.
