Milwaukee

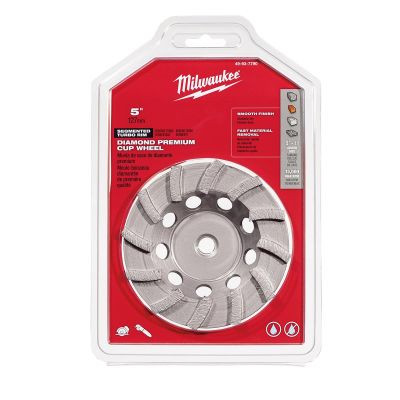

Milwaukee Tool 5" Diamond Cup Wheel Segmented-turbo
- SKU:
- MLW49-93-7790
- Availability:
- Usually Ships Same Day
- Weight:
- 1.30 LBS
Description
DUTY®
5 in Diamond
Turbo Cup
A diamond cup wheel for shaping, smoothing and removing concrete, masonry and stone.
Product Overview
The segmented turbo face works across the surface to remove material and smooth uneven areas.
The threaded mount suits matching grinder spindles; verify wheel clearance, guard fit and speed first.
- Diamond abrasiveFor masonry surfaces.
- Surface removalShape and smooth the work.
- Threaded mount5/8-11 grinder interface.
- Wet or dryUse a suitable tool setup.
Technical Specifications
- Diameter
- 5 in
- Thread
- 5/8-11
- Abrasive
- Diamond
- Face style
- Segmented turbo
- Use method
- Wet / dry
- Materials
- Concrete / masonry / stone
Choose the Correct Fit
Match grinder spindle, wheel diameter, guard and speed rating. A 5/8-11 thread alone does not establish safe compatibility.
Select dust extraction or a wet method appropriate to the grinder. Control respirable silica when working concrete and masonry.
Installation & Care
Disconnect power before installation. Inspect the cup for cracks or damaged segments and seat it using the tool’s specified procedure.
Keep the wheel moving across the work with controlled pressure. Stop if vibration increases or the wheel shows damage.
Small Details. Big Jobsite Energy.
Get set. Stay focused. Make your next move count.
THE NEXT JOB.
Ask Willy:
Tell Willy your grinder, spindle and surface material to check the cup-wheel size and profile.
Important Product Questions
Can this wheel make cut-off cuts?
This is a cup wheel for surface grinding and shaping. Use an appropriate cutting blade for severing material.
Can I add water to any grinder?
No. Wet use requires a tool and electrical setup approved for it. Follow the grinder instructions and use suitable dust control for dry work.
What materials is it intended for?
The intended surface materials are concrete, masonry and stone. Do not assume a metal-grinding or polishing rating.
