Milwaukee

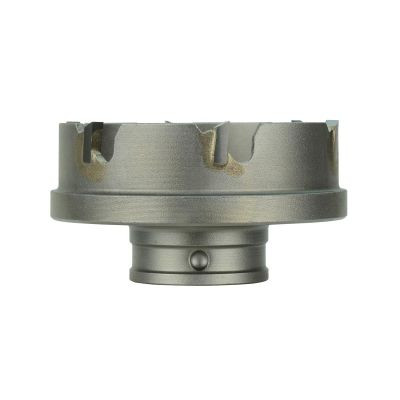

Milwaukee Tool 1-7/16" Quick Change Sheet Metal Carbide Cutter
- SKU:
- MLW49-57-8325
- Availability:
- Usually Ships Same Day
- Weight:
- 0.20 LBS
Description
DUTY®
1-7/16" Carbide
Sheet-Metal Cutter
A 1-7/16-inch carbide-tipped cutter with 3/16-inch maximum cutting depth, using quick-change arbor 49-57-0035 for thin-metal holes.
Product Overview
Match the 1-7/16-inch cutter and 3/16-inch depth to the work, allowing chip and slug clearance.
Check the drill, arbor and pilot pin before setup; a shared brand does not establish fit.
- Carbide teethCarbide teeth cut the metal.
- Drive interfaceQuick-change arbor fitting.
- Matched arborRequires model 49-57-0035.
- Cutting depthUp to 3/16 in maximum.
Technical Specifications
- Hole diameter
- 1-7/16 in
- Cutting depth
- 3/16 in
- Tooth material
- Carbide-tipped
- Connection
- Quick-change
- Required arbor
- 49-57-0035
- Drive tool
- Hand-held drill
Choose the Correct Fit
Choose the 1-7/16-inch finished opening and use arbor 49-57-0035. Check that the material is within the 3/16-inch depth limit.
Suitable materials include stainless steel, structural steel studs, brass and aluminum. Check speed and feed for the actual material.
Installation & Care
Use the recommended cutting lubrication and clamp the work securely. Keep the cutter square rather than levering it in the opening.
Let rotation stop before removing the slug or clearing chips. Inspect carbide edges for damage before the next hole.
Small Details. Big Jobsite Energy.
Get set. Stay focused. Make your next move count.
THE NEXT JOB.
Ask Willy:
Need help choosing? Tell Willy your material, required size and working clearance so the GetPipe team can check the fit.
Important Product Questions
Can I use a nearby arbor that appears to fit?
Verify the exact interface and the machine/arbor combination. Secure engagement, cutter depth and pilot-pin travel must all suit the setup; appearance alone is not enough.
Can I cut past the stated depth?
No. Choose a cutter with sufficient working depth for the stock. Do not force the body or shoulder beyond its designed cutting range.
How do I select the finished hole size?
Choose the actual required hole diameter. A bolt, pipe or fitting’s nominal size may require a different clearance opening; check the drawing or fitting instructions.
