Milwaukee

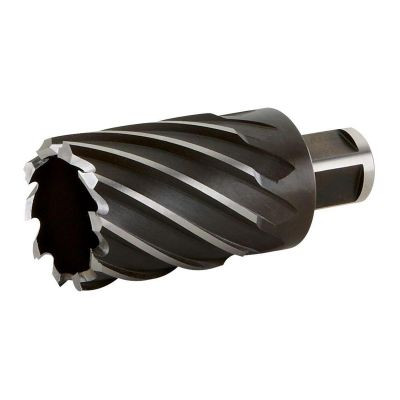

Milwaukee Tool 1-3/4 inch x 2 inch HSS Annular Cutter with 3/4 inch Weldon Shank
- SKU:
- MLW49-59-2175
- Availability:
- Usually Ships Same Day
- Weight:
- 0.63 LBS
Description
DUTY®
1-3/4 in Cutter
HSS Annular
A 1-3/4 in high-speed steel annular cutter with a 2 in cutting depth. Match the connection and material thickness before drilling.
Product Overview
This 1-3/4 in cutter makes a fixed-size hole in metal. Match its 2 in cutting depth to the thickness of the work.
Choose the correct connection before drilling. Secure the work and keep the cutter aligned during the cut.
- HSS constructionSteel with three hardness zones.
- Alternating teethGeometry supports metal removal.
- Weldon shankFits a compatible magnetic drill.
- Thin-wall designDisplaces less material per hole.
Technical Specifications
- Diameter
- 1-3/4 in
- Cutting depth
- 2 in
- Cutting material
- HSS
- Shank
- 3/4 in Weldon
- Tooth pattern
- Alternating
- Application
- Steel
Choose the Correct Fit
Match the 1-3/4 in diameter and 2 in cutting depth to the work. The 3/4 in Weldon shank requires a compatible magnetic drill or the correct arbor.
Select a pilot pin matched to the cutter family and cutting depth. Check the machine capacity and workholding instructions before installing the cutter.
Installation & Care
Secure the machine and work before cutting. Keep the cutter aligned, use the recommended cutting setup, and stop if the teeth bind or the tool shifts.
Disconnect power before changing the cutter or clearing a plug. Let hot parts cool, then inspect the teeth and shank and store the cutter clean and dry.
Small Details. Big Jobsite Energy.
Get set. Stay focused. Make your next move count.
THE NEXT JOB.
Ask Willy:
Need help choosing the right cutter or step bit? Share model 49-59-2175, the material thickness and your drill setup.
Important Product Questions
Will it fit an ordinary drill chuck?
The cutter has a 3/4 in Weldon shank for a compatible magnetic-drill connection. Do not assume it will fit an ordinary chuck without the correct adapter.
Does cutting depth mean overall length?
No. The 2 in value is the rated cutting depth, not the cutter overall length. Check work thickness, machine travel and clearance separately.
Which pilot pin should I choose?
Match the pilot pin to this cutter family and its cutting depth. HSS and carbide-tipped cutter systems have different pin selections; verify the exact accessory before use.
