Milwaukee
Milwaukee Tool 1-1/8" Quick Change Tang Drive Steel Hawg Cutter
- SKU:
- MLW49-57-1127
- Availability:
- Usually Ships Same Day
- Weight:
- 0.34 LBS
Description
DUTY®
1-1/8" Carbide
STEEL HAWG Cutter

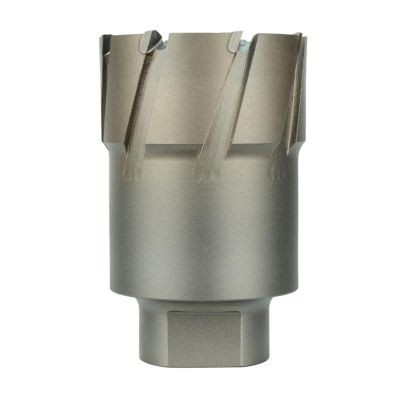

A 1-1/8-inch carbide-tooth STEEL HAWG cutter with 1-inch cutting depth and a quick-change tang drive for a matched magnetic-drill arbor.
Product Overview
Match the 1-1/8-inch cutter and 1-inch depth to the work, allowing chip and slug clearance.
Check the drill, arbor and pilot pin before setup; a shared brand does not establish fit.
- Carbide teethCarbide teeth cut the metal.
- Drive interfaceQuick-change tang fitting.
- Alternating teethCut around the hole edge.
- Cutting depthUp to 1 in maximum.
Technical Specifications
- Hole diameter
- 1-1/8 in
- Cutting depth
- 1 in
- Tooth material
- Carbide
- Connection
- Quick-change tang
- Tooth geometry
- Alternating
- Drive tool
- Magnetic drill press
Choose the Correct Fit
Match diameter and depth to the hole, then verify the magnetic-drill model and arbor before fitting the cutter.
The listed arbors are 49-57-0012 or 49-57-0013 with 4292-1/4297-1, and 49-57-0032 with 4262-1. Verify the exact machine/arbor pairing.
Installation & Care
Follow the drill’s requirements for stable mounting, speed, feed and cutting fluid. The listed materials include steel, stainless steel, cast iron and aluminum.
Keep clear of the ejected plug and stop rotation before clearing chips. Inspect teeth and drive engagement before the next cut.
Small Details. Big Jobsite Energy.
Get set. Stay focused. Make your next move count.
THE NEXT JOB.
Ask Willy:
Need help choosing? Tell Willy your material, required size and working clearance so the GetPipe team can check the fit.
Important Product Questions
Can I use a nearby arbor that appears to fit?
Verify the exact interface and the machine/arbor combination. Secure engagement, cutter depth and pilot-pin travel must all suit the setup; appearance alone is not enough.
Can I cut past the stated depth?
No. Choose a cutter with sufficient working depth for the stock. Do not force the body or shoulder beyond its designed cutting range.
How do I select the finished hole size?
Choose the actual required hole diameter. A bolt, pipe or fitting’s nominal size may require a different clearance opening; check the drawing or fitting instructions.
