Watts Water Technologies

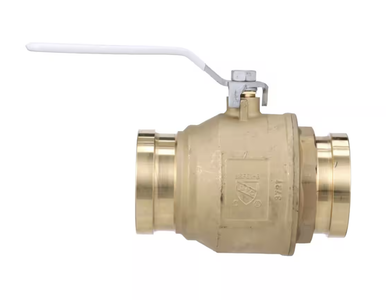

LFFBV-Press-M2 2-Piece Full Port Lead Free Brass Ball Valves with Integral Press Fitting End Connection
- SKU:
- LFFBV-3-PRESS-M2
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
LFFBV-Press-M2 2-Piece Full Port Lead Free Brass Ball Valves with Integral Press Fitting End Connection
Series LFFBV-3 Press-M2 is a 2-piece, full port, forged body of Lead Free* brass. It is certified to NSF/ANSI 61 Annex G by UL for potable water applications. It consists of Lead Free* brass ball and PTFE seats, seal, and thrust washer. Press fitting is rated to 250psi CWP up to 250°F (13.8 bar to 121°C) and press ends comply to ASTM-B88. Series LFFBV-3 Press-M2 is designed for use in ProPress® Piping Systems. Model sizes 1/2" to 4" available.
Product Highlights
- Tested and Certified to NSF/ANSI 61 Annex G 1⁄2" – 4"
- Designed for types K, L, and M hard copper tubing 1⁄2" - 4" and soft copper tubing 1⁄2" – 11⁄4"
- Press end connections comply to ASTM-B88
- Press connection rated to 250psi CWP up to 250°F (13.8 bar to 121°C)
Technical Specifications
| Manufacturer | Watts Water Technologies |
|---|---|
| Series / Model | LFFBV-Press-M2 |
| Connection / Configuration | Integral press fitting ends |
| Construction | Lead free forged brass |
| Listed Options | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" |
| Product Code | LFFBV-3-PRESS-M2 |
Product Documents
Product Questions
What is the listed connection configuration?
Integral press fitting ends. Confirm the selected option and matching piping requirements before ordering.
What construction is identified for this product?
Lead free forged brass. Review the product documents for the full component materials and selected model details.
Which options are included in this listing?
1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4". Choose the required option before ordering.
