Dixon

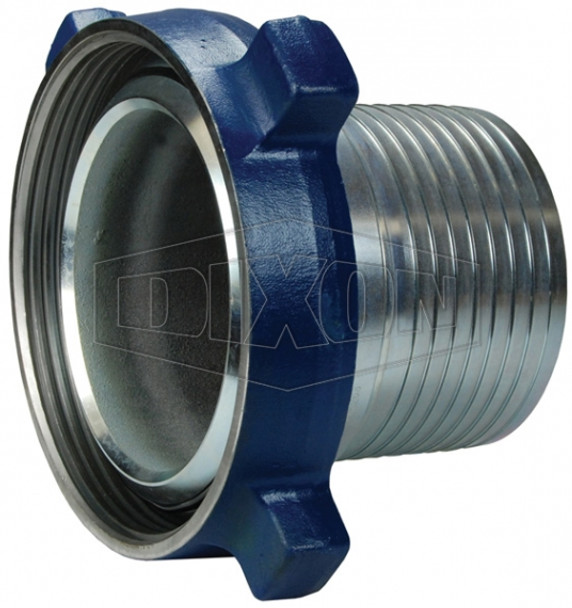

HUM100600CS - Dixon Male Frac Fitting with Nut
- SKU:
- HUM100600CS
- Availability:
- Usually Ships Same Day
- Weight:
- 42.30 LBS
Description
Engineered to connect.
Built to perform.
HUM100600CS — Dixon Male Frac Fitting with Nut The one-piece fitting design avoids the additional leak path of a two-piece threaded arrangement. The male fitting includes a nut and is designed for Dixon King Crimp sleeves or ferrules.
Frac Transfer Fittings
Dixon identifies water and sand-slurry transfer at hydraulic-fracturing sites; pressure capability depends on the specified complete assembly.
Selection & Installation
Build: The male fitting includes a nut and is designed for Dixon King Crimp sleeves or ferrules.
Check: Match the fitting, hose, ferrule, and size-specific pressure conditions rather than treating all frac fittings alike.
Product documents
3 PDF REFERENCES
Ask Willy: Need help choosing the right Dixon part?
Tell Willy your hose size, fitting half, seal requirement, ferrule, transfer medium, and working conditions. Include the existing model or a connection photo so the required configuration can be checked before ordering.
Frequently Asked Questions
What distinguishes Dixon HUM100600CS?
The one-piece fitting design avoids the additional leak path of a two-piece threaded arrangement. The male fitting includes a nut and is designed for Dixon King Crimp sleeves or ferrules.
What should I check when selecting HUM100600CS?
Dixon identifies water and sand-slurry transfer at hydraulic-fracturing sites; pressure capability depends on the specified complete assembly. Check the exact fitting drawing and applicable crimp requirements before specifying the hose assembly.
What safety or compatibility checks apply?
For these 6" frac fittings, confirm Dixon’s approved crimp combination and complete assembly rating. Never exceed the lowest-rated component. Follow model-specific crimp instructions; the stated pressure capability applies only with the specified ferrules and temperature conditions.
