Dixon

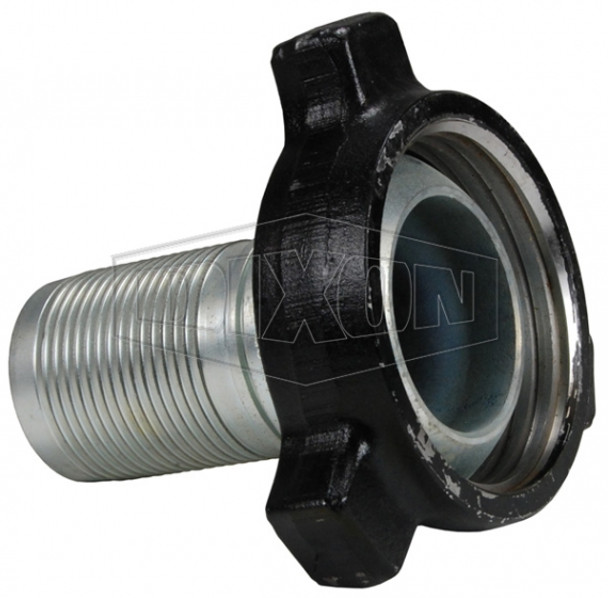

HUM100400CS - Dixon Male Frac Fitting with Nut
- SKU:
- HUM100400CS
- Availability:
- Usually Ships Same Day
- Weight:
- 17.35 LBS
Description
Engineered to connect.
Built to perform.
HUM100400CS - Dixon Male Frac Fitting with Nut Dixon HUM100400CS is a male fitting with nut for transferring water and sand slurry at hydraulic fracturing sites. Its one-piece design removes the threaded joint of two-piece systems; use the specified Dixon King Crimp attachment.
Verify the complete assembly
Match the exact frac fitting, hose and King Crimp attachment. Pressure conditions differ by configuration; do not transfer another size’s assembly rating.
Selection & Installation
Fit: Match the fitting, hose and King Crimp assembly before crimping.
Check: The 400 PSI condition requires HD stems and the specified HD ferrules.
Product documents
3 PDF REFERENCES
Ask Willy: Need help choosing the right Dixon part?
Willy can help compare male or female configuration, included nut or seal, hose construction, King Crimp attachment and the exact pressure and temperature conditions for this frac assembly.
Frequently Asked Questions
What does the one-piece design change?
Dixon describes the one-piece fitting as eliminating the leak path associated with two-piece threaded systems. It is still part of a hose assembly requiring the specified King Crimp components and correct crimping procedure.
Which seal or assembly distinction applies here?
This is a male fitting with nut. Dixon describes a metal-to-metal sealing surface. Keep this exact configuration separate from other frac-fitting sizes and seal arrangements.
What safety or compatibility checks apply?
For the 4-inch assembly, the conditional 400 PSI claim requires heavy-duty stems, specified Dixon HD ferrules and minimum 4:1 hose-burst/working-pressure safety factor. Follow Dixon’s exact crimp instructions; never exceed the assembly’s lowest-rated component.
