Dixon
HUC206800 - Low Profile Hammer Union Blanking Cap
- SKU:
- HUC206800
- Availability:
- Usually Ships Same Day
- Weight:
- 47.17 LBS
Description
Engineered to connect.
Built to perform.

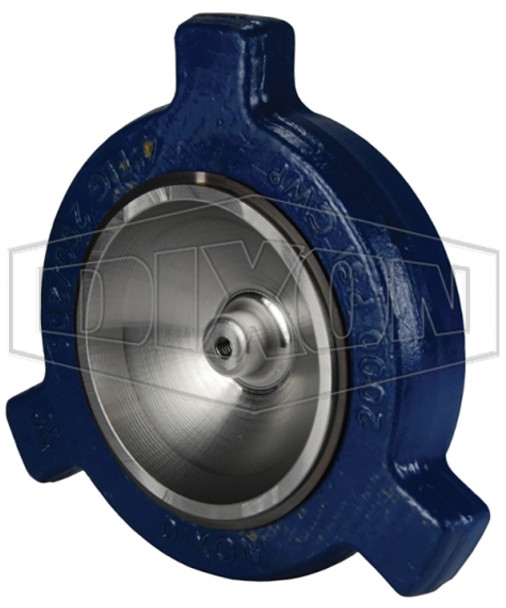

HUC206800 — Low Profile Hammer Union Blanking Cap HUC206800 closes a matching hammer union connection on a manifold or hose assembly. The low-profile cap includes the nut/plug body, O-ring and retaining ring, with a reusable bull plug intended to support rebuilding the cap.
Match the union figure before choosing
Match the hammer union figure, size and intended use before selecting this low-profile blanking cap. Dixon lists pressurized or dust-cap service, but the exact assembly rating and mating union configuration still need to be verified.
Selection & Installation
Cap construction and seal: The listed construction identifies cast steel, an iron bull plug and nitrile O-ring O447BU. Confirm the matching union configuration and exact replacement seal before selecting the cap or rebuilding components.
Figure-specific pressure limit: Dixon lists 1000 PSI working pressure for Figure 100 and 2000 PSI for Figure 200/206. Figure 206 supplements the metal-to-metal design with a secondary seal; verify the actual mating union figure.
WARNINGThis product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
SAFETY NOTESWorking pressure for Figure 100 = 1000 PSI and Figure 200/206 = 2000 PSI.
Product documents
3 PDF REFERENCES
Ask Willy: Need help choosing the right Dixon part?
Need help matching HUC206800? Send us the mating connection details, hose or tube dimensions and intended application so we can help check the selection before you order.
Frequently Asked Questions
What is included in the blanking cap?
The description includes the nut/plug body, O-ring and retaining ring. Dixon identifies a reusable bull plug for rebuilding; confirm the exact replacement parts for the cap.
Which pressure rating applies to the union figure?
Dixon lists Figure 100 at 1000 PSI and Figure 200/206 at 2000 PSI. Confirm the exact union figure and complete assembly before selecting a pressure-service closure.
Can this cap also serve as a dust cap?
Dixon lists both pressurized service and dust-cap use for matching hammer union connections. Confirm the actual union configuration and application requirements before deciding which use is suitable.
