Dixon

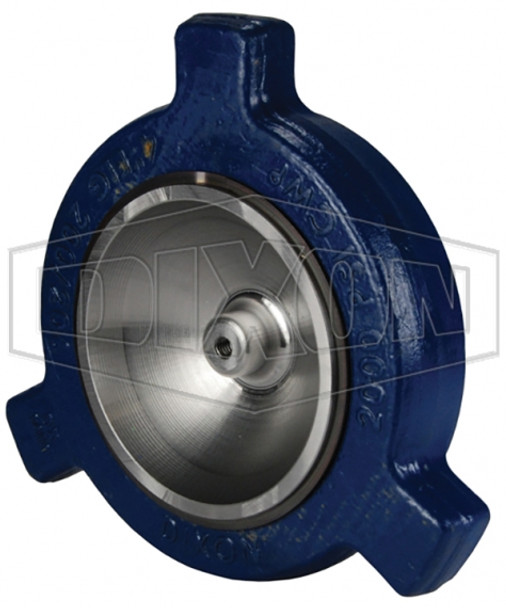

HUC206600 - Low Profile Hammer Union Blanking Cap
- SKU:
- HUC206600
- Availability:
- Usually Ships Same Day
- Weight:
- 32.56 LBS
Description
Engineered to connect.
Built to perform.
HUC206600 — Low Profile Hammer Union Blanking Cap HUC206600 closes a matching hammer union connection on a manifold or hose assembly. The low-profile cap includes the nut/plug body, O-ring and retaining ring, with a reusable bull plug intended to support rebuilding the cap.
Small part.
Big connection.
Dixon HUC206600Low-Profile Hammer Union Cap
Match the union figure and size before choosing pressurized or dust-cover service.
Selection & Installation
Cap construction: The cap uses cast steel, an iron bull plug and nitrile O-ring O440BU. Match the union configuration and replacement seal before selection or rebuilding.
Working pressure: Figure 100: 1000 PSI; Figure 200/206: 2000 PSI. Figure 206 adds a secondary seal to the metal-to-metal design. Verify the actual mating union figure before service.
WARNINGThis product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
SAFETY NOTESWorking pressure for Figure 100 = 1000 PSI and Figure 200/206 = 2000 PSI.
Product documents
3 PDF REFERENCES
Ask Willy: Need help choosing the right Dixon part?
Need help matching HUC206600? Send us the mating connection details, hose or tube dimensions and intended application so we can help check the selection before you order.
Frequently Asked Questions
What is included in the blanking cap?
The description includes the nut/plug body, O-ring and retaining ring. Dixon identifies a reusable bull plug for rebuilding; confirm the exact replacement parts for the cap.
Which pressure rating applies to the union figure?
Dixon lists Figure 100 at 1000 PSI and Figure 200/206 at 2000 PSI. Confirm the exact union figure and complete assembly before selecting a pressure-service closure.
Can this cap also serve as a dust cap?
Dixon lists both pressurized service and dust-cap use for matching hammer union connections. Confirm the actual union configuration and application requirements before deciding which use is suitable.
