Fig. 22R Retaining Strap
- SKU:
- Fig. 22R
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description

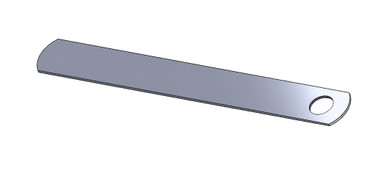

Fig. 22R Plain Steel Retaining Strap
Empire Fig. 22R Retaining Strap is designed for use with Fig. 61 Wide Mouth Beam Clamps and Fig. 62 Small Mouth Beam Clamps.
For proper strap length, add a minimum of 2" to the beam flange width. Custom lengths are available.
Product Highlights
- Designed for use with Empire Fig. 61 and Fig. 62 beam clamps
- Plain carbon steel construction for Fig. 22RB
- Add 2" minimum to flange width to determine strap length
- Custom lengths available
- Available for multiple hanger rod sizes
- Domestically manufactured
Beam Clamp Compatibility
The Fig. 22R Retaining Strap is specifically designed for use with Empire Fig. 61 Wide Mouth and Fig. 62 Small Mouth Beam Clamps.
View Fig. 61 Wide Mouth Beam Clamp
View Fig. 62 Small Mouth Beam Clamp
Technical Specifications
| Manufacturer | Empire Industries |
|---|---|
| Figure | 22R |
| Product Type | Retaining Strap |
| Material / Finish | Plain Carbon Steel (22RB) |
| Service | Designed for use with Fig. 61 and Fig. 62 beam clamps |
| Length Selection | Add 2" minimum to flange width to determine length |
| Custom Lengths | Available |
| Ordering | Specify figure number, finish and length |
Determining Strap Length
Add a minimum of 2" to the flange width to determine the required retaining strap length. The manufacturer also notes that custom lengths are available.
Available Materials & Finishes
The Fig. 22R series is documented in the following material and finish configurations:
- 22RB: Plain Carbon Steel
- 22RG: Electro-Galvanized
- 22RSS: T-304 Stainless Steel, 3/8" - 1/2", 13 ga x 1"
- 22RSX: T-316 Stainless Steel, 3/8" - 1/2", 13 ga x 1"
Rod Sizes & Standard Lengths
| Rod Size | Material | Available Lengths |
|---|---|---|
| 3/8" | 14 ga x 1" | 4-1/2", 6", 8", 10", 12", 14" |
| 1/2" | 14 ga x 1" | 4-1/2", 6", 8", 10", 12", 14" |
| 5/8" | 14 ga x 1-3/16" | 4-1/2", 6", 8", 10", 12", 14" |
| 3/4" | 14 ga x 1-3/16" | 4-1/2", 6", 8", 10", 12", 14" |
| 7/8" | 14 ga x 2" | 4-1/2", 6", 8", 10", 12", 14" |
Important Ordering Notes
Specify the figure number, finish and length when ordering. Add a minimum of 2" to the beam flange width to determine the required retaining strap length. Custom lengths are available.
Product Documents
Product Questions
What is the Fig. 22R Retaining Strap used with?
It is designed for use with Empire Fig. 61 and Fig. 62 beam clamps.
How do I determine the required retaining strap length?
Add a minimum of 2" to the flange width to determine the required length.
Are custom lengths available?
Yes. Empire lists custom lengths as available for the Fig. 22R Retaining Strap.
What rod sizes are listed for the Fig. 22R?
The submittal lists 3/8", 1/2", 5/8", 3/4" and 7/8" rod sizes.
What standard lengths are shown on the submittal?
The listed standard lengths are 4-1/2", 6", 8", 10", 12" and 14".
What should be specified when ordering?
Specify the figure number, finish and length.
Ask Willy: Product Information & Help
Contact the GetPipe.com team for help with Fig. 22R Plain Steel Retaining Strap.
