Fig. 21R Retaining Strap
- SKU:
- Fig. 21R
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description

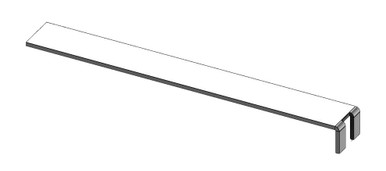

Fig. 21R Retaining Strap - Plain Carbon Steel
Empire Fig. 21R Retaining Strap is designed for use with Fig. 21 and Fig. 21L C-Clamps and Fig. 23L C-Clamps to eliminate movement of the beam clamp due to vibration.
For proper retaining strap length, add a minimum of 2" to the beam flange width.
Product Highlights
- Designed to eliminate movement of the beam clamp due to vibration
- For use with Fig. 21 and Fig. 21L in 3/8" through 3/4" sizes
- For use with Fig. 23L in 3/8" and 1/2" sizes
- Plain carbon steel construction
- 11 ga x 1-1/4" material
- Add 2" minimum to flange width to determine required length
- FM Approved for 3/8" applications
- Domestically manufactured
Compatible Beam Clamps
The Fig. 21R Retaining Strap is designed for use with the following Empire beam clamps:
- Fig. 21 and Fig. 21L — 3/8" through 3/4"
- Fig. 23L — 3/8" and 1/2"
Technical Specifications
| Manufacturer | Empire Industries |
|---|---|
| Figure | 21R |
| Product Type | Retaining Strap |
| Material / Finish | Plain Carbon Steel (21RB) |
| Material Size | 11 ga x 1-1/4" |
| Service | Designed for use with Fig. 21, Fig. 21L (3/8"-3/4") and Fig. 23L (3/8" and 1/2") to eliminate movement of the beam clamp due to vibration |
| Approval | FM Approved (3/8") |
| Length Selection | Add 2" minimum to flange width to determine length |
| Ordering | Specify figure number, finish and length |
Determining Strap Length
Add a minimum of 2" to the beam flange width to determine the required Fig. 21R retaining strap length.
Available Materials & Finishes
The Fig. 21R series is documented in the following material and finish configurations:
- 21RB: Plain Carbon Steel
- 21RG: Electro-Galvanized
- 21RSS: T-304 Stainless Steel
- 21RSX: T-316 Stainless Steel
Standard Lengths & Weights
| Length | Weight Each |
|---|---|
| 4-1/2" | 0.22 lbs. |
| 6" | 0.30 lbs. |
| 8" | 0.36 lbs. |
| 10" | 0.44 lbs. |
| 12" | 0.48 lbs. |
| 14" | 0.66 lbs. |
Important Ordering Notes
Specify the figure number, finish and length when ordering. Add a minimum of 2" to the beam flange width to determine the required retaining strap length.
Product Documents
Product Questions
What is the Fig. 21R Retaining Strap used for?
It is designed to eliminate movement of compatible beam clamps due to vibration.
Which Empire beam clamps are compatible with the Fig. 21R?
The Fig. 21R is designed for use with Fig. 21 and Fig. 21L in 3/8" through 3/4" sizes and Fig. 23L in 3/8" and 1/2" sizes.
How do I determine the required retaining strap length?
Add a minimum of 2" to the beam flange width to determine the required strap length.
What standard lengths are available?
The manufacturer lists 4-1/2", 6", 8", 10", 12" and 14" lengths.
Is the Fig. 21R FM Approved?
The manufacturer lists FM Approval for the 3/8" application.
What materials and finishes are available?
The Fig. 21R series is available in plain carbon steel, electro-galvanized, T-304 stainless steel and T-316 stainless steel configurations.
What should be specified when ordering?
Specify the figure number, finish and length.
