Harris
ER309L Stainless Steel TIG Welding Rod
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description

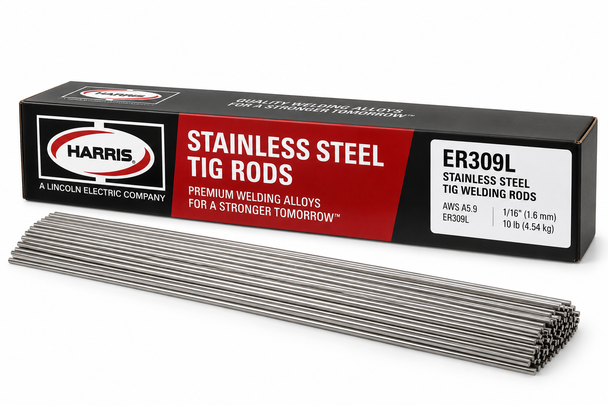

Harris ER309L Stainless Steel TIG Welding Rod
Harris ER309L stainless steel TIG welding rod is a low-carbon ER309L filler metal designed for GTAW / TIG welding of stainless steels with similar composition in wrought or cast form. It is also used for welding Type 304 and similar base metals where severe conditions may exist and may be used for selected dissimilar-steel welding applications. The lower carbon content of 0.03% maximum helps reduce the possibility of intergranular carbide precipitation.
Select the required rod diameter and package configuration from the product options above. Each available variation is tied to the corresponding Harris item number, package weight, selling price and cost.
Product Highlights
- ER309L stainless steel TIG / GTAW filler rod
- Low-carbon stainless filler metal with 0.03% maximum carbon content
- Designed for stainless steels of similar composition in wrought or cast form
- Suitable for Type 304 and similar stainless steels under severe service conditions
- May be used for selected dissimilar-steel welding applications
- Available in .035", .045", 1/16", 3/32", 1/8" and 5/32" rod diameters
- Available in 10 lb and selected 12 lb box configurations
- 86,000 psi tensile strength in the as-welded condition
- 57,000 psi yield strength in the as-welded condition
- 47% elongation in the as-welded condition
- 68% reduction of area in the as-welded condition
- Suitable for all welding positions
- Conforms to ANSI/AWS A5.9 and ASME SFA 5.9 ER309L
Technical Specifications
| AWS Classification | ER309L |
|---|---|
| Filler Metal Type | 309L Stainless Steel TIG Welding Rod |
| Welding Process | GTAW / TIG Welding |
| Primary Applications | Similar-composition stainless steels, Type 304 and similar stainless steels, and selected dissimilar-steel applications |
| Available Rod Diameters | .035", .045", 1/16", 3/32", 1/8" and 5/32" |
| Available Packages | 10 lb and 12 lb Boxes |
| Carbon Content | 0.03% Maximum |
| Welding Positions | All Positions |
| Shielding Gas | 98% Argon / 2% Oxygen |
| Specification | ANSI/AWS A5.9 & ASME SFA 5.9 ER309L |
| Manufacturer | The Harris Products Group |
As-Welded Mechanical Properties
| Tensile Strength | 86,000 psi |
|---|---|
| Yield Strength | 57,000 psi |
| Elongation | 47% |
| Reduction of Area | 68% |
| Rockwell Hardness | 85 HRB |
| Brinell Hardness | 160 HB |
| Charpy V-Notch Impact | 105 ft-lb at Room Temperature |
Available Diameters & Packaging
| Rod Diameter | Package | Harris Item Number |
|---|---|---|
| .035" | 10 lb Box | 309LTF0 |
| .045" | 10 lb Box | 309LTH0 |
| 1/16" | 10 lb Box | 309LT30 |
| 1/16" | 12 lb Box | 309LT303POP |
| 3/32" | 10 lb Box | 309LT50 |
| 3/32" | 12 lb Box | 309LT503POP |
| 1/8" | 10 lb Box | 309LT60 |
| 1/8" | 12 lb Box | 309LT603POP |
| 5/32" | 10 lb Box | 309LT70 |
Common Applications
Stainless Steel Fabrication
- General stainless steel fabrication
- Type 304 stainless steel
- Stainless steel equipment
- Industrial fabrication
- Stainless steel piping and components
Dissimilar Metals & Severe Service
- Selected dissimilar-steel joints
- Severe service applications
- Plant maintenance
- Industrial repair
- General stainless steel TIG welding
Why Choose ER309L TIG Welding Rod?
Low-Carbon Stainless Filler
ER309L contains a maximum of 0.03% carbon, helping reduce the possibility of intergranular carbide precipitation in appropriate stainless steel welding applications.
Dissimilar-Steel Capability
ER309L may also be used for selected dissimilar-steel welding applications. Confirm filler-metal selection with the applicable welding procedure, engineering specification and materials being joined.
Product Selection Considerations
Rod Diameter
Select the TIG rod diameter appropriate for the base-metal thickness, joint design, welding procedure, operator preference and required deposition rate.
Package Configuration
Package availability varies by rod diameter. Select the diameter and package combination required for the application and verify compatibility with the applicable welding procedure.
Product Resources
View manufacturer-published technical information, specifications, application guidance and product data for Harris ER309L stainless steel GTAW / TIG welding rod.
View Harris Product InformationNeed Help Selecting Harris ER309L Stainless Steel TIG Rod?
Our welding and industrial supply specialists can help you select the appropriate rod diameter and package configuration for your stainless or dissimilar-steel TIG welding application.
Frequently Asked Questions
What is Harris ER309L stainless steel TIG welding rod?
Harris ER309L is a low-carbon stainless steel GTAW / TIG filler rod designed for welding base metals of similar composition in wrought or cast form.
What is the difference between ER309 and ER309L?
ER309L is the lower-carbon version, with a maximum carbon content of 0.03%. The lower carbon level helps reduce the possibility of intergranular carbide precipitation.
Can ER309L be used with Type 304 stainless steel?
Yes. Harris identifies ER309L for Type 304 and similar base metals where severe service conditions may exist.
Can ER309L be used to weld dissimilar steels?
ER309L may be used for selected dissimilar-steel applications. Confirm filler-metal selection with the applicable welding procedure and engineering requirements.
What rod diameters are available?
This Harris ER309L TIG product is available in .035", .045", 1/16", 3/32", 1/8" and 5/32" diameters.
What package sizes are available?
Available configurations include 10 lb boxes and selected 12 lb POP box configurations depending on the rod diameter.
What is the tensile strength of Harris ER309L TIG rod?
Harris lists an as-welded tensile strength of approximately 86,000 psi.
What is the yield strength of Harris ER309L TIG rod?
Harris lists an as-welded yield strength of approximately 57,000 psi.
What specification does Harris ER309L meet?
Harris ER309L conforms to ANSI/AWS A5.9 and ASME SFA 5.9 ER309L.
How do I choose the correct Harris ER309L variation?
Select the rod diameter and package configuration required for your application. The selected variation determines the Harris item number, package weight, selling price and cost.
Important Ordering Notes
- Select the required rod diameter and package configuration before adding the product to your cart.
- The selected variation determines the Harris item number, package weight, selling price and cost.
- Package availability varies by rod diameter.
- 1/16", 3/32" and 1/8" diameters include selected 12 lb POP configurations in addition to 10 lb boxes.
- Confirm ER309L filler-metal compatibility with the materials being joined before welding.
- Pay particular attention to welding-procedure requirements when joining dissimilar steels.
- Verify all welding procedure, specification, code and project requirements before use.
- Always follow applicable welding procedures, manufacturer instructions and workplace safety requirements.
