Charman Inc.
Copper 45 Degree Short Radius Elbow - C x C
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description

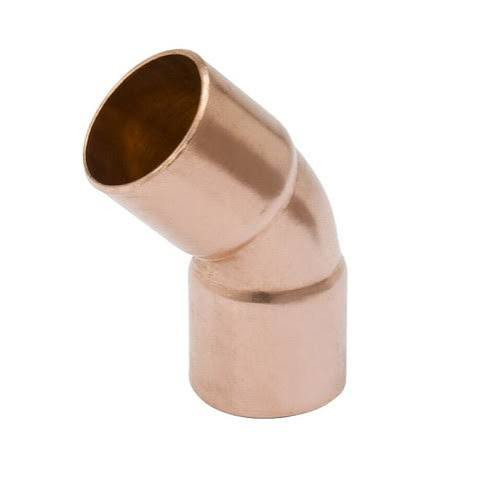

Copper 45 Degree Short Radius Elbow - C x C
Charman Inc. Copper 45 Degree Short Radius Elbows provide a compact 45-degree directional change for compatible copper tube piping systems. The C x C configuration uses cup-style connections on both ends for solder / sweat installation.
The 45-degree angle is useful for offsets, angled piping runs, and installations where a more gradual directional change is preferred over a full 90-degree turn. Its short-radius geometry keeps the fitting compact for space-conscious piping layouts.
Product Highlights
- Copper 45-degree elbow
- Short-radius (SR) configuration
- C x C cup-style connections
- Copper construction
- Solder / sweat installation
- Compact profile for space-conscious piping layouts
- Useful for offsets and angled copper tube runs
Sizes & Part Numbers
| Part Number | Size | UPC |
|---|---|---|
| 330183 | 1/2" | 847877018536 |
| 330184 | 3/4" | 847877019809 |
| 330185 | 1" | 847877019830 |
| 330186 | 1-1/4" | 847877020003 |
| 330187 | 1-1/2" | 847877020188 |
| 330188 | 2" | 847877020195 |
Technical Specifications
| Brand | Charman Inc. |
|---|---|
| Product Type | Copper 45 Degree Short Radius Elbow |
| Material | Copper |
| Angle | 45 Degrees |
| Radius | Short Radius (SR) |
| Connection Type | C x C |
| Connection Style | Cup / Sweat |
| Joining Method | Solder Joint |
What Is a 45 Degree Copper Elbow?
A 45-degree copper elbow changes the direction of a compatible copper tubing run without creating a full right-angle turn. It is commonly used to create offsets, route piping around obstacles, or transition a tube run onto a different path.
- Creates a 45-degree change in piping direction
- Useful for angled runs and piping offsets
- Accepts compatible copper tube at both ends
- Designed for solder / sweat joining
- Short-radius body provides a compact fitting profile
45 Degree vs. 90 Degree Elbow
45 Degree Elbow
Creates a partial directional change and is useful for offsets, angled runs, and routing around obstacles without making a full right-angle turn.
90 Degree Elbow
Creates a full right-angle change in direction where the piping run must turn perpendicular to its original path.
Why Use a Short Radius Elbow?
Compact Profile
The short-radius geometry helps minimize the space occupied by the fitting at the directional change.
Angled Routing
A 45-degree turn provides flexibility when routing copper tubing around structural components, equipment, or other piping.
Simple Connections
Cup connections on both ends allow compatible copper tubing to be joined directly to the elbow using solder / sweat methods.
Understanding C x C Connections
C x C indicates that both ends of the elbow have cup-style connections designed to receive compatible copper tube. The tubing is inserted into each fitting cup and joined using an appropriate solder / sweat procedure.
Common Applications
Plumbing & Mechanical
- Copper tube installations
- Water distribution piping
- Mechanical piping systems
- Equipment connections
- Repair and maintenance
- Piping modifications
Offsets & Angled Runs
- Piping offsets
- Wall and ceiling cavities
- Mechanical rooms
- Closely spaced piping
- Equipment piping
- Fabricated copper assemblies
How to Select the Correct Elbow
- Identify the nominal size of the copper tubing.
- Confirm that the piping layout requires a 45-degree directional change.
- Verify that a short-radius fitting provides the appropriate geometry and clearance.
- Confirm that C x C cup-style solder connections are appropriate for the installation.
- Select the variation corresponding to the required nominal tube size.
Installation Guidance
- Verify the nominal copper tube size before installation.
- Confirm the elbow orientation for the required 45-degree turn.
- Cut compatible copper tubing squarely and remove burrs as appropriate.
- Clean the tubing and fitting cups before soldering.
- Apply appropriate flux according to the joining procedure.
- Fully insert the tubing into each fitting cup.
- Use proper soldering and heating procedures for copper piping.
- Allow completed joints to cool before disturbing the assembly.
- Test the completed piping system for leakage before placing it into service.
Our pipe and fitting specialists can help review your copper tube size, 45-degree piping layout, short-radius elbow requirements, solder-joint connection, and application before you order.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What does SR mean?
SR means short radius and describes the compact bend geometry of the elbow.
What does C x C mean?
C x C indicates cup-style connections on both ends designed to receive compatible copper tubing for solder / sweat joining.
When would I use a 45-degree elbow instead of a 90-degree elbow?
A 45-degree elbow is useful when the piping layout requires an angled offset or partial directional change rather than a full right-angle turn.
What is the advantage of a short-radius elbow?
The short-radius geometry provides a more compact fitting profile, which can be useful where available installation space is limited.
Can 45-degree elbows be used to create piping offsets?
Yes. A 45-degree elbow can be incorporated into a piping layout to create an angled offset or route tubing around an obstruction.
How are these elbows installed?
They are designed for solder / sweat joining with compatible copper tubing using appropriate tube preparation, cleaning, flux, heating, soldering, and system-testing procedures.
Important Ordering Notes
- Verify the nominal copper tube size before ordering.
- Confirm that the piping layout requires a 45-degree directional change.
- Verify that a short-radius configuration is appropriate for the available installation space.
- Confirm that C x C solder / sweat connections are required.
